NUMATICS Air Valve, Lever, 3/8 NPT, 4 Way, 3 Position

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Manual Air Control Valve, Spring Centered Lever, Connection 3/8 NPT, Port Size 3/8 NPT In, Actuator/Return Hand Lever, Three Position, Number of Ways 4, Number of Positions 3, Closed Center, Max Pressure 150 PSI, 78 CFM, Operating Pressure 0 to 150 PSI, Max Temp Range -10 to 150 F, Cv 1.7, Aluminum Body, Length 5 3/16 In, Height 2 In, Width 3 15/16 In, Plumbed as Normally Passing, Non-Passing or Multi-purpose, For Use With General Pneumatic Applications

Grainger Item #	3JCU3
Price (ea.)	$210.75
Brand	NUMATICS
Mfr. Model #	L23LA652O000000
UNSPSC #	40141603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.86
Availability	Typically in Stock
Catalog Page No.	3978
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

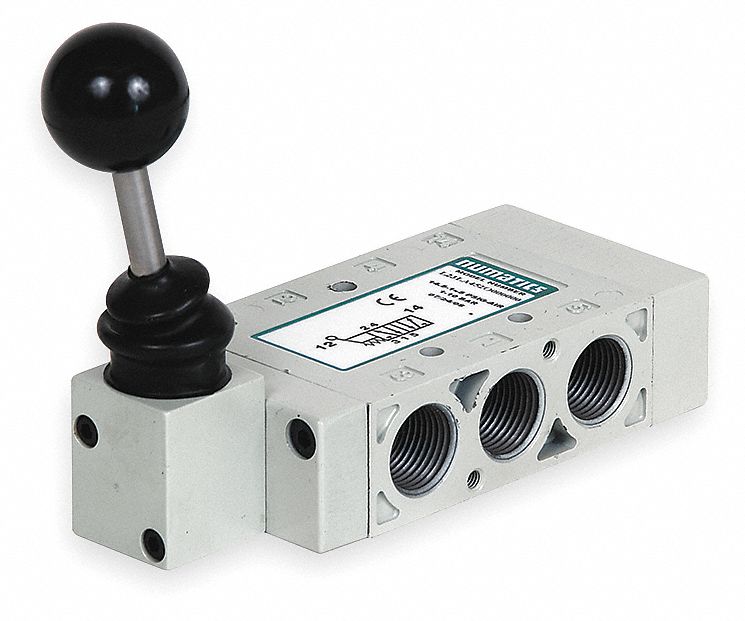

Air Valve, Lever, 3/8 NPT, 4 Way, 3 Position

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Manual Air Control Valve
Type		Spring Centered Lever
Connection		3/8 NPT
Port Size (In.)		3/8 NPT
Actuator/Return		Hand Lever/3 Position
Number of Ways		4
Number of Positions		3
Center		Closed
Max. Pressure (PSI)		150
CFM		78
Operating Pressure (PSI)		0 to 150
Max. Temp. Range (F)		-10 to 150
Coefficient of Volume		1.7
Cv		1.7
Body		Aluminum
Length (In.)		5-3/16
Height (In.)		2
Width (In.)		3-15/16
Characteristics		Plumbed as Normally Passing, Non-Passing or Multi-purpose
For Use With		General Pneumatic Applications
