Power Transmission
>
Bearings
>
Mounted Bearings

NTN Mounted Brg, Pillow Block, Dia 1-3/16 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Mounted Ball Bearing, Pillow Block, Bore Dia. 1-3/16 In., Mounting Surface to Shaft Center 1-7/8 In., Mounting Hole Center 5 In., Bolt Hole Size 1/2 In., Height 3-21/32 In., Width 2-1/4 In., Length 6-7/8 In., Dynamic Load Capacity 5780 Lb., Static Load Capacity 3440 Lb., Temp. Range -20 Degrees F to +250 Degrees F F, Set Screw Locking, Ball Bearing Insert, Bearing Steel Material, Cast Iron Housing Material

Grainger Item #	5ZUH7
Price (ea.)	$111.50
Brand	NTN
Mfr. Model #	UCPX06-103D1
UNSPSC #	31171511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.03
Availability	Typically in Stock
Catalog Page No.	193
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

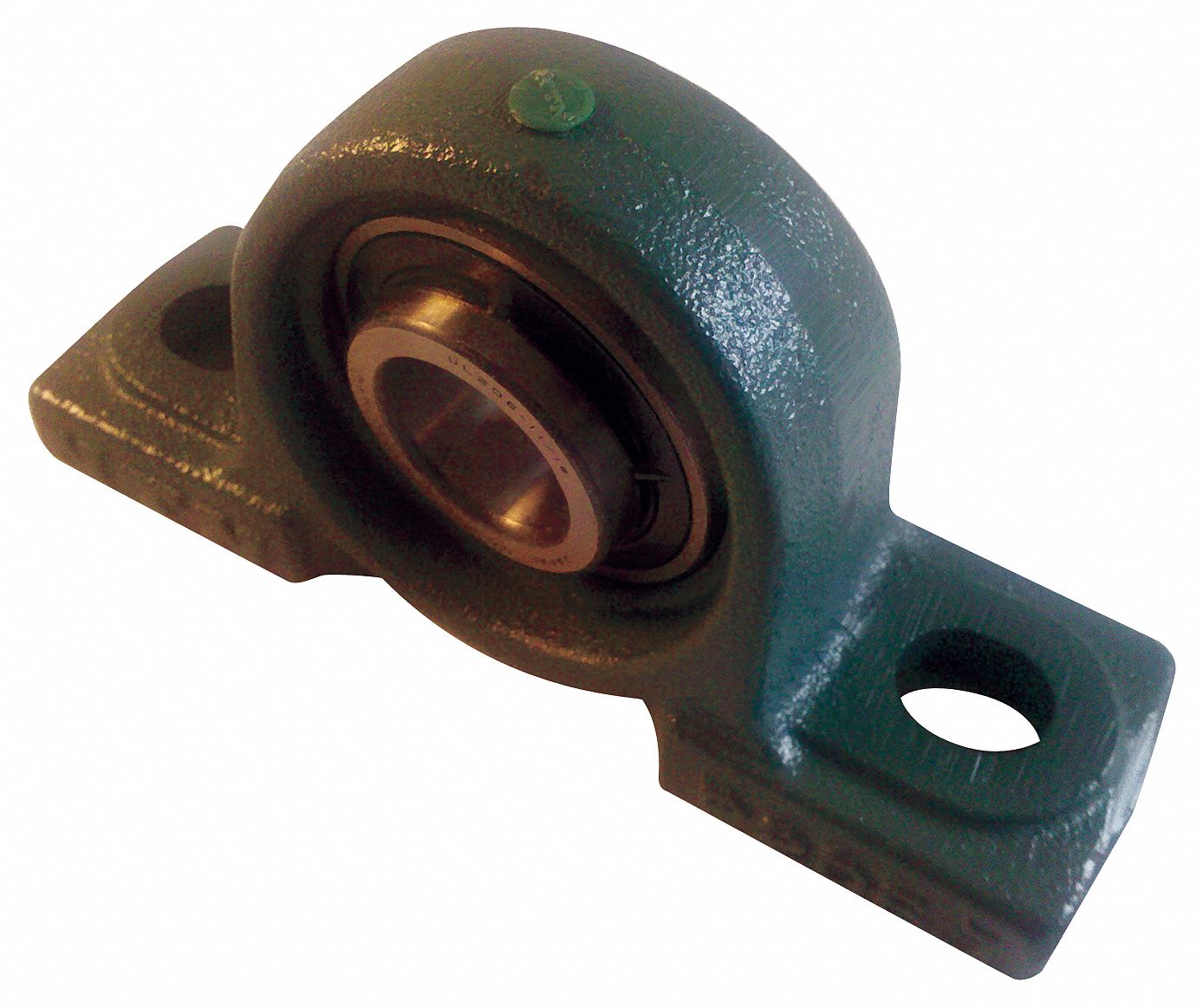

Mounted Brg, Pillow Block, Dia 1-3/16 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Mounted Ball Bearing
Type		Pillow Block
Number of Bolts		2
Series		Medium Duty
Bore Dia.		1-3/16"
Mounting Surface to Shaft Center		1-7/8"
Mounting Hole Center		5"
Bolt Hole Size		1/2"
Height		3-21/32"
Width		2-1/4"
Length		6-7/8"
Dynamic Load Capacity (Lb.)		5780
Static Load Capacity (Lb.)		3440
Temp. Range (F)		-20 Degrees F to +250 Degrees F
Locking Type		Set Screw
Bearing Type		Ball
Insert		Ball Bearing
Material		Bearing Steel
Housing Material		Cast Iron
Finish		Durable Paint
Color		Green
