NTN Mounted Brg, 4-Bolt Flange, Dia 2-11/16 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Mounted Ball Bearing, 4-Bolt Flange, Bore Dia. 2-11/16 In., Mounting Hole Center 5-63/64 In., Bolt Hole Size 3/4 In., Height 3-13/64 In., Width 7-3/4 In., Length 7-3/4 In., Dynamic Load Capacity 14, 840 Lb., Static Load Capacity 11, 130 Lb., Temp. Range -20 Degrees F to +250 Degrees F F, Set Screw Locking, Ball Bearing Insert, Bearing Steel Material, Cast Iron Housing Material

Grainger Item #	5ZUF5
Price (ea.)	$360.25
Brand	NTN
Mfr. Model #	UCFX14-211D1
UNSPSC #	31171501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.93
Availability	Typically in Stock
Catalog Page No.	195
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

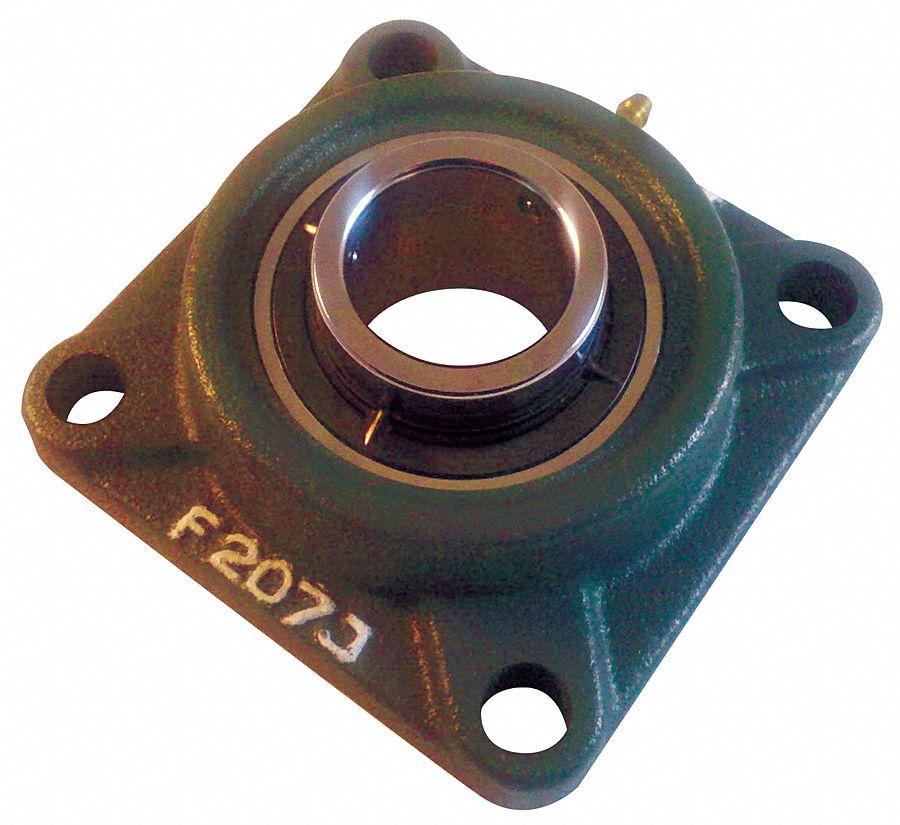

Mounted Brg, 4-Bolt Flange, Dia 2-11/16 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Mounted Ball Bearing
Type		4-Bolt Flange
Number of Bolts		4
Series		Medium Duty
Bore Dia.		2-11/16"
Mounting Hole Center		5-63/64"
Bolt Hole Size		3/4"
Height		3-13/64"
Width		7-3/4"
Length		7-3/4"
Dynamic Load Capacity (Lb.)		14,840
Static Load Capacity (Lb.)		11,130
Temp. Range (F)		-20 Degrees F to +250 Degrees F
Locking Type		Set Screw
Bearing Type		Ball
Insert		Ball Bearing
Material		Bearing Steel
Housing Material		Cast Iron
Finish		Durable Paint
Color		Green
