Power Transmission
>
Bearings
>
Mounted Bearings

NTN Mounted Brg, 2-Bolt Flange, Dia 1-1/4 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Mounted Ball Bearing, 2-Bolt Flange, Bore Dia. 1-1/4 In., Mounting Hole Center 5-1/8 In., Bolt Hole Size 7/16 In., Height 1-3/4 In., Width 3-17/32 In., Length 6-11/32 In., Dynamic Load Capacity 5750 Lb., Static Load Capacity 3440 Lb., Temp. Range -20 Degrees F to +250 Degrees F F, Set Screw Locking, Ball Bearing Insert, Bearing Steel Material, Cast Iron Housing Material

Grainger Item #	5ZUD7
Price (ea.)	$91.15
Brand	NTN
Mfr. Model #	UCFL207-104D1
UNSPSC #	31171501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.83
Availability	Typically in Stock
Catalog Page No.	194
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

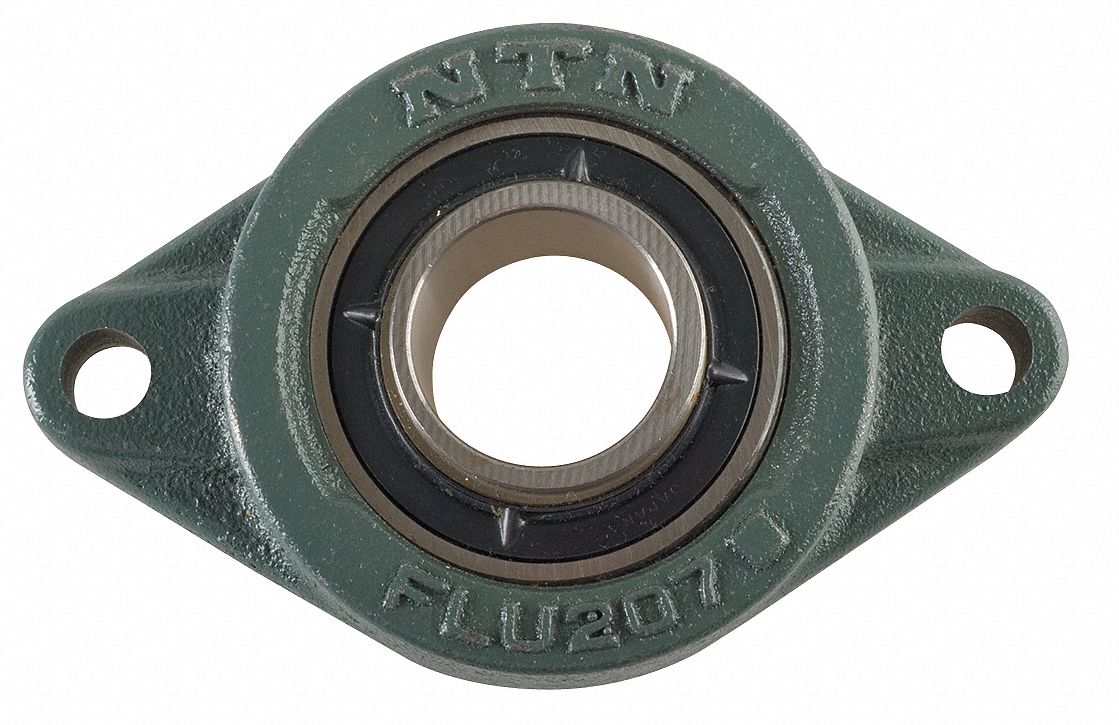

Mounted Brg, 2-Bolt Flange, Dia 1-1/4 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Mounted Ball Bearing
Type		2-Bolt Flange
Number of Bolts		2
Series		Standard Duty
Bore Dia.		1-1/4"
Mounting Hole Center		5-1/8"
Bolt Hole Size		7/16"
Height		1-3/4"
Width		3-17/32"
Length		6-11/32"
Dynamic Load Capacity (Lb.)		5750
Static Load Capacity (Lb.)		3440
Temp. Range (F)		-20 Degrees F to +250 Degrees F
Locking Type		Set Screw
Bearing Type		Ball
Insert		Ball Bearing
Material		Bearing Steel
Housing Material		Cast Iron
Finish		Durable Paint
Color		Green

Other Popular Terms for this Product

• Flange Bearings (1277)

• Set Screw Lock Bearings (942)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Item #	Description	Brand Mfr. Model #	Availability	Price
5RYF5	Mounted Bearing, 2-Bolt Flange, 1-1/4 In >More Details... Country of Origin: Japan	NTN UCFLU-1.1/4M	Typically in Stock	$106.30
