NTN Angular Bearing, 40 Deg, 130mm Bore, 280 OD

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Angular Contact Ball Bearing, Contact Angle 40 Degrees, Bore Dia 130 mm, Outside Dia 280 mm, Width 58 mm, Max RPM 2300, Dynamic Load Capacity 56000 Lb, Dynamic Load Capacity 249100 N, Static Load Capacity 60500 Lb, Static Load Capacity 269117 N, ABEC Tolerance 1, Temp Range -13 to 250 F, Cage Material Machined Brass

Grainger Item #	4ZYK2
Price (ea.)	$2,316.00
Brand	NTN
Mfr. Model #	7326BG
UNSPSC #	31171504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	40.084
Availability	Item ships within 9 business days from supplier
Catalog Page No.	206
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

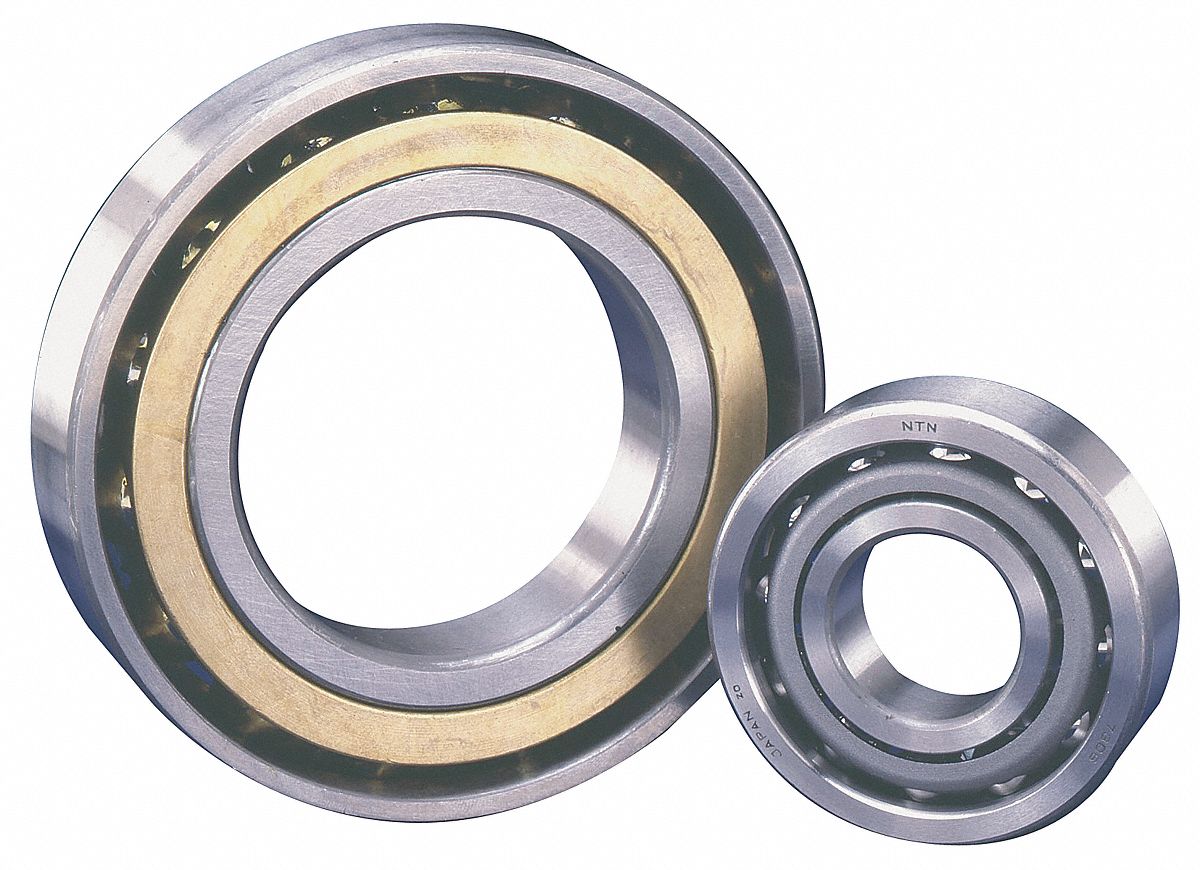

Angular Bearing, 40 Deg, 130mm Bore, 280 OD

Enlarge Image

Item		Angular Contact Ball Bearing
Contact Angle (Degree)		40
Bore Dia.		130mm
Outside Dia.		280mm
Width		58mm
Max. RPM		2300
Dynamic Load Capacity (Lb.)		56000
Dynamic Load Capacity (N)		249100
Static Load Capacity (Lb.)		60500
Static Load Capacity (N)		269117
ABEC Tolerance		1
Temp. Range (F)		-13 to 250
Cage Material		Machined Brass
