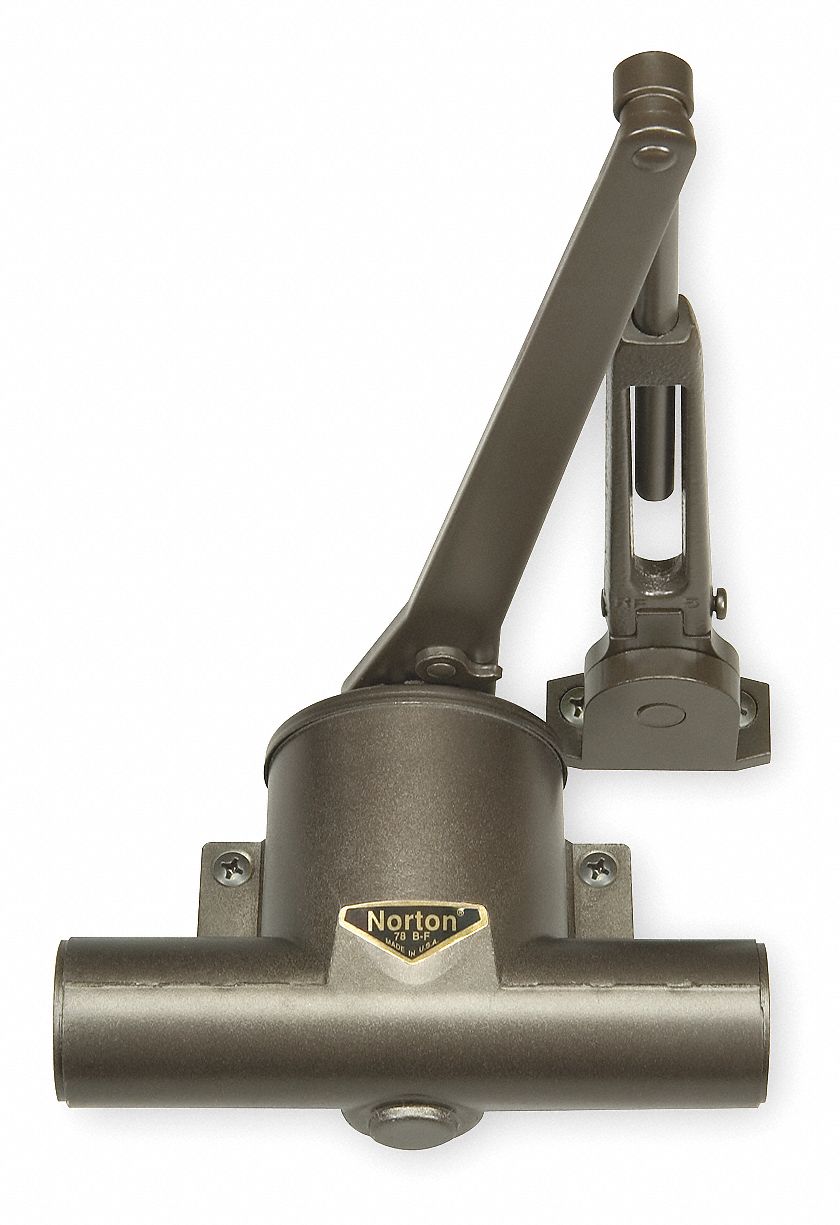

NORTON Hydraulic Door Closer, Right Handed

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hydraulic Door Closer, Interior/Exterior Institutional, Pot Belly, Closer Type Standard Duty, Arm Type Sizes 5 to 6, Dark Bronze Finish, Housing Length (In.) 7-1/2, Housing Height (In.) 5, Housing Width (In.) 3-1/2, Projection from Wall (In.) 4-5/8, Hand Hold-Open, Type of Installation RH, Standards Meet Americans with Disabilities Act Guidelines, ANSI 156.4 Grade 1, UL Listed

Grainger Item #	1ABP2
Price (ea.)	$531.00
Brand	NORTON
Mfr. Model #	78E/F-HRAX690RH
UNSPSC #	30171514
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.85
Availability	Typically in Stock
Catalog Page No.	3062
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Closing Operation Mode		Hydraulic
Item		Pot-Belly Door Closer
Closer Performance		Standard Duty
Closer Type		Standard Duty
Door Handing		Right Hand
Arm Type		Sizes 5 to 6
Mounting Style		Regular Arm , Hold Open
Housing Length		7-1/2"
Housing Width		3-1/2"
Housing Height		5"
Finish		Dark Bronze
Max. Door Opening		180 Degrees
Exterior Door Width		44"
Interior Door Width		48"
Projection from Wall		4-5/8"
Spring Size		5 & 6
Color		Dark Bronze
Standards		Meet Americans with Disabilities Act Guidelines, ANSI 156.4 Grade 1, UL Listed
