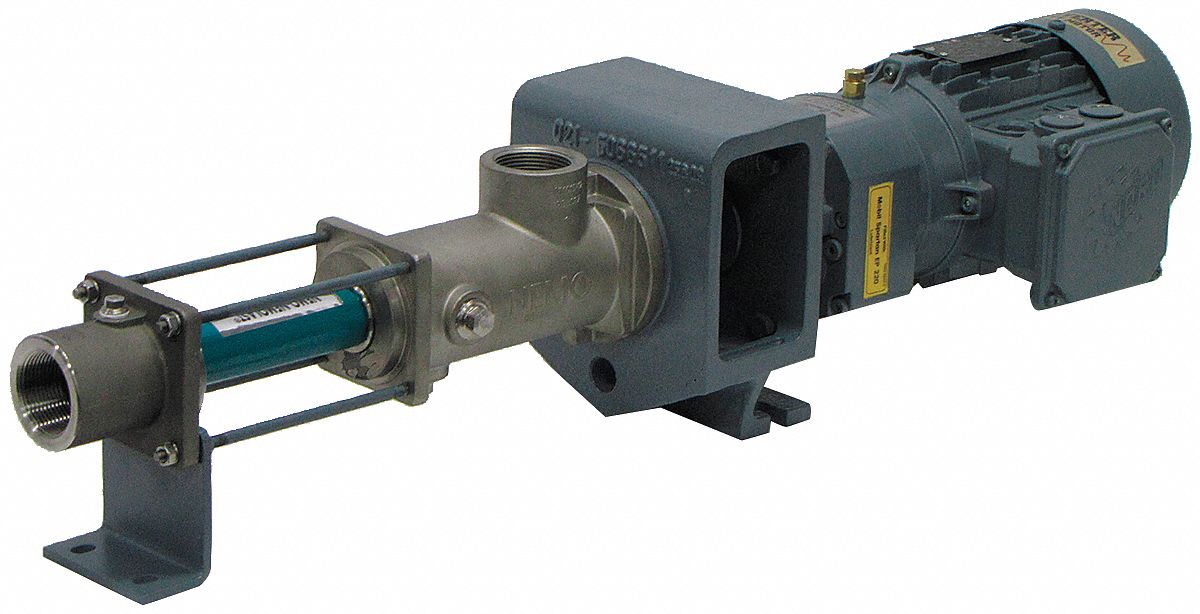

NETZSCH Metering Pump, 7/8 HP, 230/460VAC, 234 gph

Progressive Cavity Metering Pump, Min. RPM 92, Max. RPM 1105, Required HP @ Lower RPM 7/8, Required HP @ Higher RPM 7/8, Voltage 230/460VAC, 60 Hz, Max. Viscosity 1000 cPs, Max. Pressure 90 PSI, Flow Rate @ Max RPM and 0 PSI 234 gph, Flow Rate @ Max RPM and 90 PSI 225 gph, Max. Fluid Temp. 130 Degrees F, Inlet/Outlet (In.) 1-1/4 NPT, Seal Type Mechanical, Seal Material Stainless Steel, Viton, Stainless Steel Housing Material
  • Grainger Item #5NYG1
    Price (ea.)$2,858.00
    BrandNETZSCH
    Mfr. Model #MSVS0276090AL000
    UNSPSC #40151553
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)62.0
    Availability Typically in Stock
    Catalog Page No.4088
    Country of Origin
    (Country of Origin is subject to change.)
    Brazil
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemProgressive Cavity Metering Pump
Min. RPM92
Max. RPM1105
Required HP @ Lower RPM7/8
Required HP @ Higher RPM7/8
Voltage230/460VAC
Hz60
Max. Viscosity1000 cPs
Particle Size8mm
Min. Pressure (PSI)0
Max. Pressure (PSI)90
Flow Rate @ Min. RPM and 0 PSI19.5 gph
Flow Rate @ Max. RPM and 0 PSI234 gph
Flow Rate @ Min. RPM and 90 PSI18.7 gph
Flow Rate @ Max. RPM and 90 PSI225 gph
Min. Fluid Temp.23 Degrees F
Max. Fluid Temp.130 Degrees F
Inlet/Outlet (In.)1-1/4 NPT
Seal TypeMechanical
Seal MaterialStainless Steel, Viton
Housing MaterialStainless Steel
Length (In.)27
Width (In.)7
Height (In.)7
SeriesNM
ApplicationMetering
IncludesManual

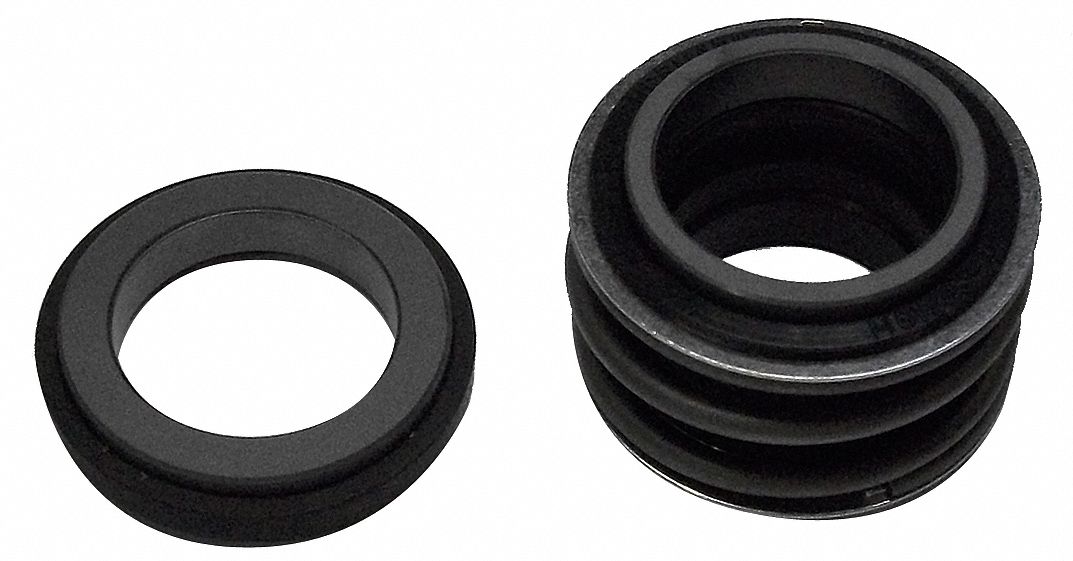

Optional Accessories

More Accessories

Brand:

NETZSCH

Grainger Item #:

6AVZ4

Price (ea.):

$343.00
