NASH Vacuum Pump, Liquid Ring, 17.3 HP, 200 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Liquid Ring Vacuum Pump, 17.3 HP, Voltage 230/460, 43.1/21.6 Amps, 60 Hz, 3 Phase, Inlet/Outlet 2-1/2 In. Flange, Free Air CFM 200, Max. Vacuum 29 In. Hg, Fluid Inlet Thread G 3/8 In. Female, 1750 RPM, Max. dBA 75, Housing Material Cast Iron, Impeller Material Bronze, Continuous Duty, Totally Enclosed Fan-Cooled Motor Type, Overall Length 33 In., Overall Height 16-1/2 In., Overall Width 15 In., Weight 363 lb., UL Standards

Grainger Item #	5MGT6
Price (ea.)	$8,644.00
Brand	NASH
Mfr. Model #	2AV1121
UNSPSC #	40151502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	405.0
Availability	Typically in Stock
Catalog Page No.	4019
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $999.00 each.
Price shown may not reflect your price. Sign in or register.

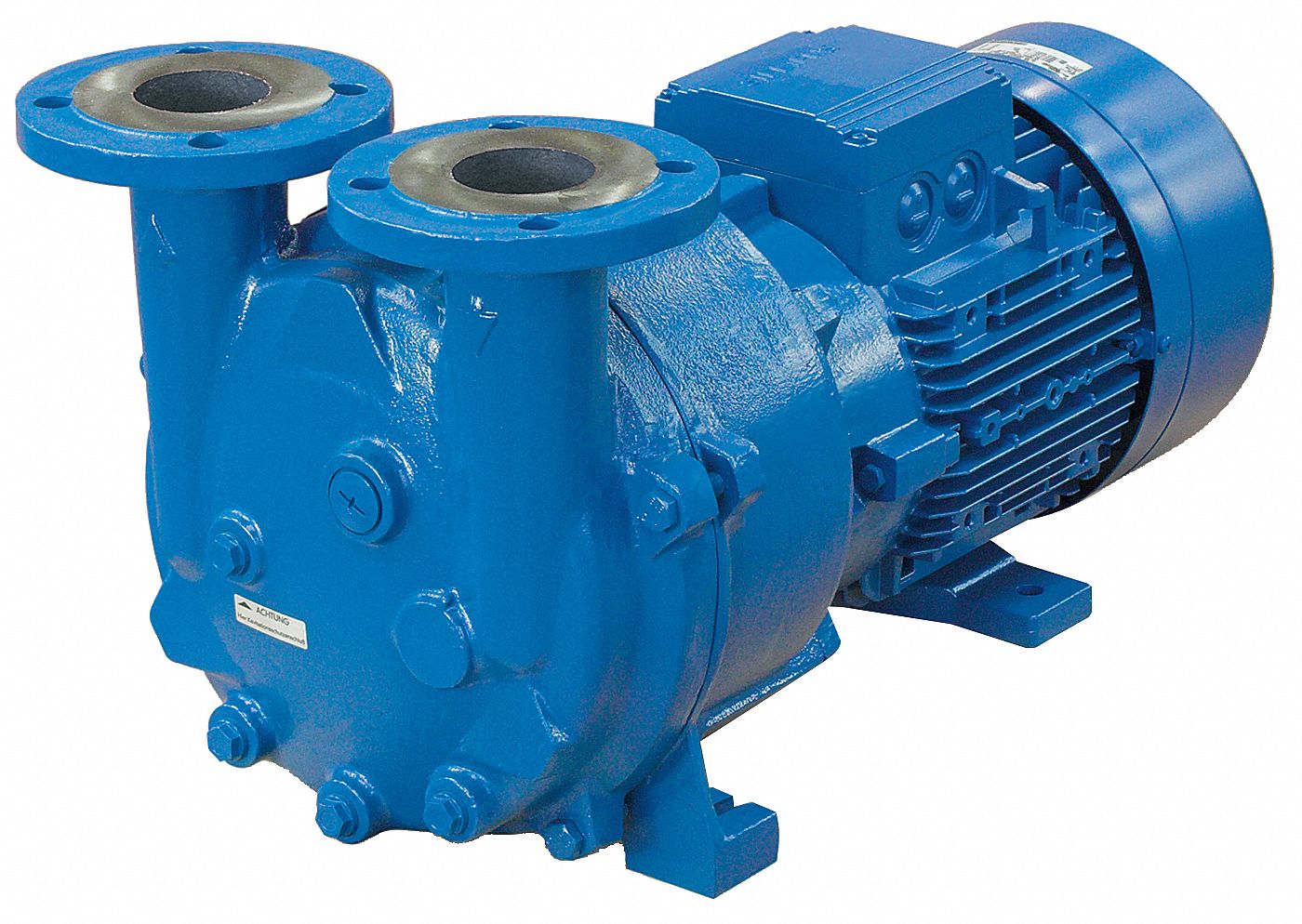

Vacuum Pump, Liquid Ring, 17.3 HP, 200 CFM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Liquid Ring Vacuum Pump
HP		17.3
Voltage		230/460
Amps		43.1/21.6
Hz		60
Phase		3
Inlet/Outlet		2-1/2" Flange
Free Air CFM		200
Max. Vacuum		29" Hg
Fluid Inlet Thread		G 3/8" Female
RPM		1750
Max. dBA		75
Housing Material		Cast Iron
Impeller Material		Bronze
Duty		Continuous
Motor Type		Totally Enclosed Fan-Cooled
Overall Length		33"
Overall Height		16-1/2"
Overall Width		15"
Weight		363 lb.
Standards		UL
