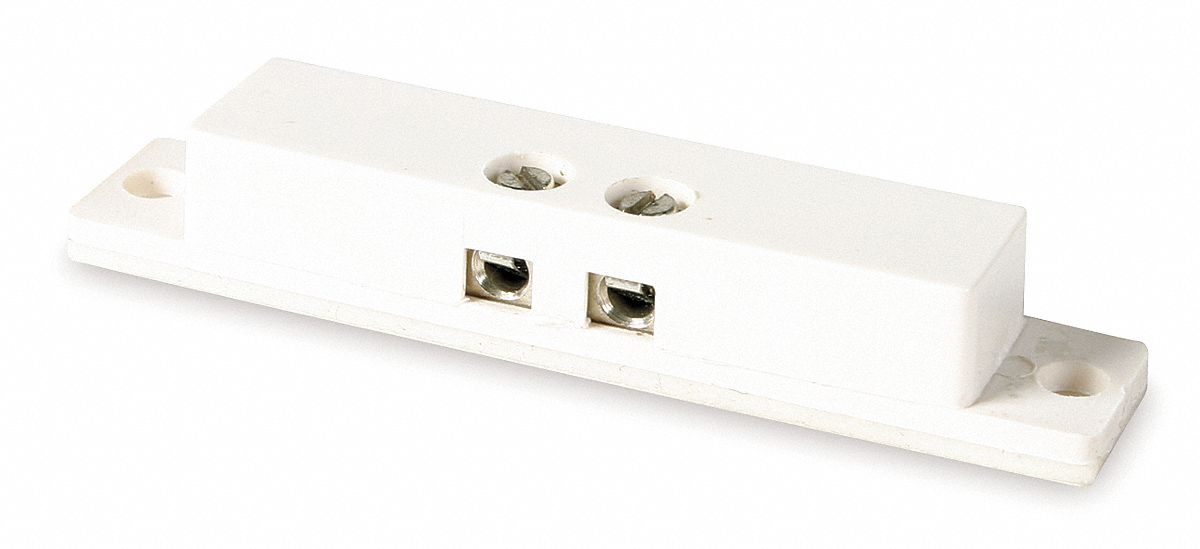

Magnetic Contact, Surface Mount, L 3/8 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Magnetic Contact, Surface Mount, Electrical Configuration Normally Open, Loop Configuration Closed, Material ABS Plastic, Color White, Max Current (Amps) 0.5, Max Voltage 100 VDC/VAC, Gap Distance 29/32 Min, 1 Max In, Length 3/8 In, Height 9/32 In, Width 2 In, Depth 3/8 In, Operating Temp Range -15 to 160 F, Response Time 0.5ms Max Sec, Mounting Surface, Adhesive and Two #8 Screw Holes, Standards, Includes Hardware, For Use With Windows and Doors

Grainger Item #	2EXT8
Price (ea.)	$9.24
Brand	GRAINGER APPROVED VENDOR
Mfr. Model #	2EXT8
UNSPSC #	31162505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.04
Availability	Typically in Stock
Catalog Page No.	2994
Country of Origin (Country of Origin is subject to change.)	China
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Price shown may not reflect your price. Sign in or register.

Magnetic Contact, Surface Mount, L 3/8 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Magnetic Contact
Type		Surface Mount, Adhesive
Electrical Configuration		Normally Open
Loop Configuration		Closed
Lead Size		#6 Screw
Material		ABS Plastic
Max. Current (Amps)		0.5
Max. Voltage		100VDC/VAC
Max. Gap Distance (In.)		1
Length (In.)		3/8
Height (In.)		9/32
Width (In.)		2
Depth (In.)		3/8
Operating Temp. Range (F)		-15 to 160
Response Time (Sec.)		0.5ms Max
Standards		Yes
Includes		Hardware
For Use With		Windows and Doors
Package Quantity		1
