HVAC and Refrigeration
>
Exhaust Fans
>
Direct Drive Fan Motor Assemblies

MULTIFAN Exhaust Fan Kit, 16 In Dia, 2500 CFM, 460 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Corrosion Resistant Exhaust Fan Kit, 3 Phase, Corrosion Resistant, Unassembled, Blade Dia. 16 In., Propeller Dia. 16 In., Number of Blades 6, Motor RPM 1660, Full Load Amps 0.50, Assembled/Unassembled Unassembled, Voltage 460V, 60 Hz, CFM @ 0.000-In. SP 2500, CFM @ 0.050-In. SP 2425, CFM @ 0.125-In. SP 2110, dBA @ 7 Feet 50, Max. Ambient Temperature 140 Degrees F, Motor HP 0.17, Motor Type Three Phase, Motor Enclosure Totally Enclosed Air Over, Motor Insulation Class F, Bearing Type Sealed Ball

Grainger Item #	7HX50
Price (ea.)	$488.00
Brand	MULTIFAN
Mfr. Model #	7HX50
UNSPSC #	40101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.4
Availability	Typically in Stock
Catalog Page No.	4460
Country of Origin (Country of Origin is subject to change.)	Netherlands

Qty.
Price shown may not reflect your price. Sign in or register.

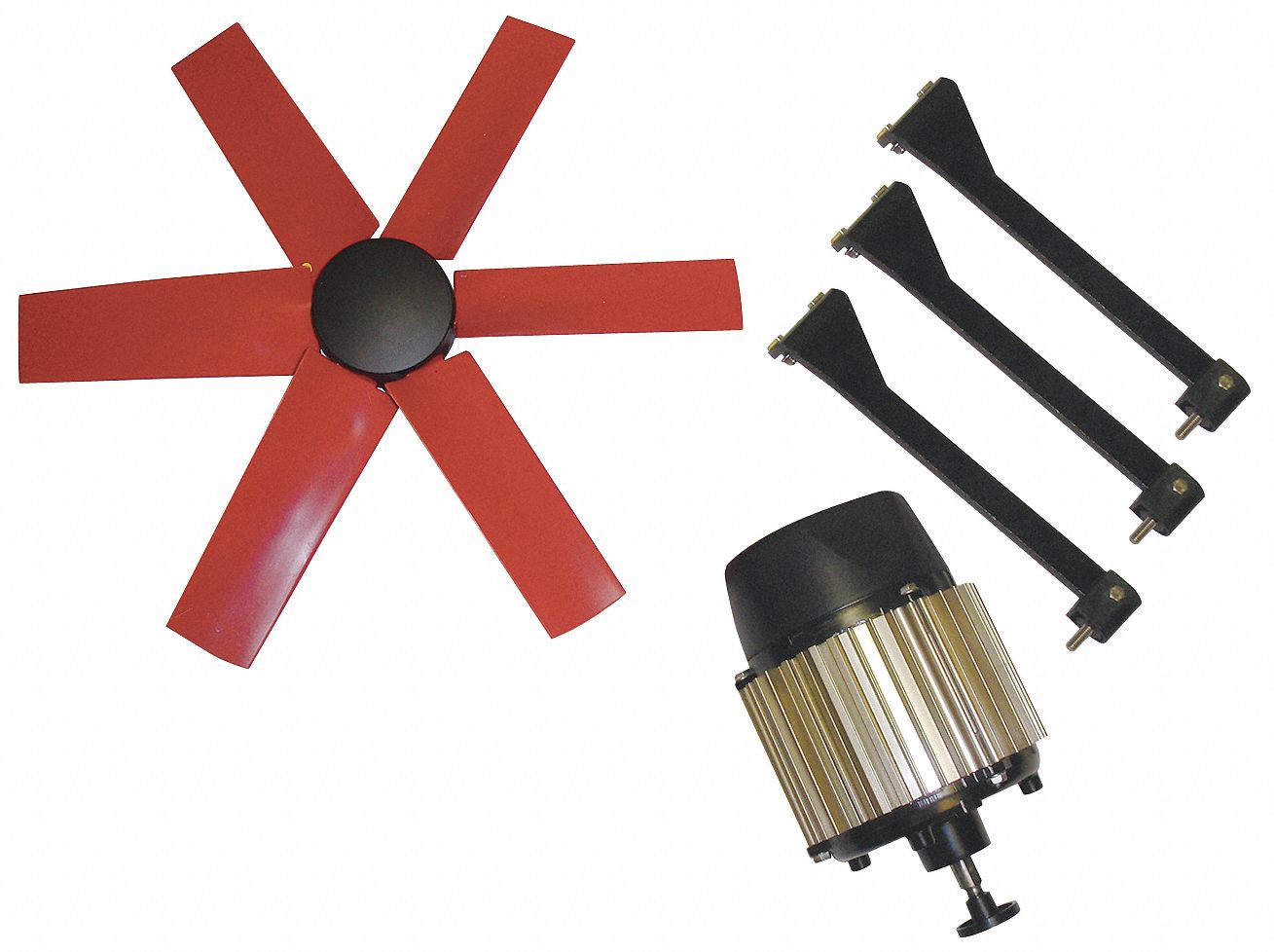

Exhaust Fan Kit, 16 In Dia, 2500 CFM, 460 V

Enlarge Image

Item		Corrosion Resistant Exhaust Fan Kit
Phase		3
Blade Dia.		16"
Number of Blades		6
Motor RPM		1660
Full Load Amps		0.50
Assembled/Unassembled		Unassembled
Voltage		460V
Hz		60
CFM @ 0.000-In. SP		2500
CFM @ 0.050-In. SP		2425
CFM @ 0.125-In. SP		2110
dBA @ 7 Feet		50
Max. Ambient Temperature		140 Degrees F
Motor HP		0.17
Motor Type		Three Phase
Motor Enclosure		Totally Enclosed Air Over
Motor Insulation		Class F
Bearing Type		Sealed Ball
Watts		199
Outside Dia.		5-3/8"
Depth		7-3/4"
Blade Material		Polypropylene
Mounting Position		Vertical or Horizontal
Standards		UL Recognized Motor (E219656)
Includes		Propeller, Direct Drive Motor and 4 Motor Mounting Arms
