MORRILL Unit Bearing Motor, Nonstandard, Steel, ECM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Unit Bearing Motor, ECM, Totally Enclosed Air-Over, 1/20 HP, 1550 Nameplate RPM, NEMA/IEC Frame Nonstandard, Voltage 208-230, Hz 60/50, 1 Phase, Full Load Amps 0.45, Output Watts 38, Stud Mounting, Thermal Protection Electronic, Insulation Class B, Service Factor 1.0, Shielded Ball Bearings, Frame Material Steel, Max. Ambient Temp. 55 Degrees C, Rotation CCWLE, Overall Length 5-31/32 In., Shaft Type Single Flat

Grainger Item #	12V778
Price (ea.)	$112.95
Brand	MORRILL
Mfr. Model #	5sme59dva2006
UNSPSC #	26101603
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.15
Availability	Typically in Stock
Catalog Page No.	61
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

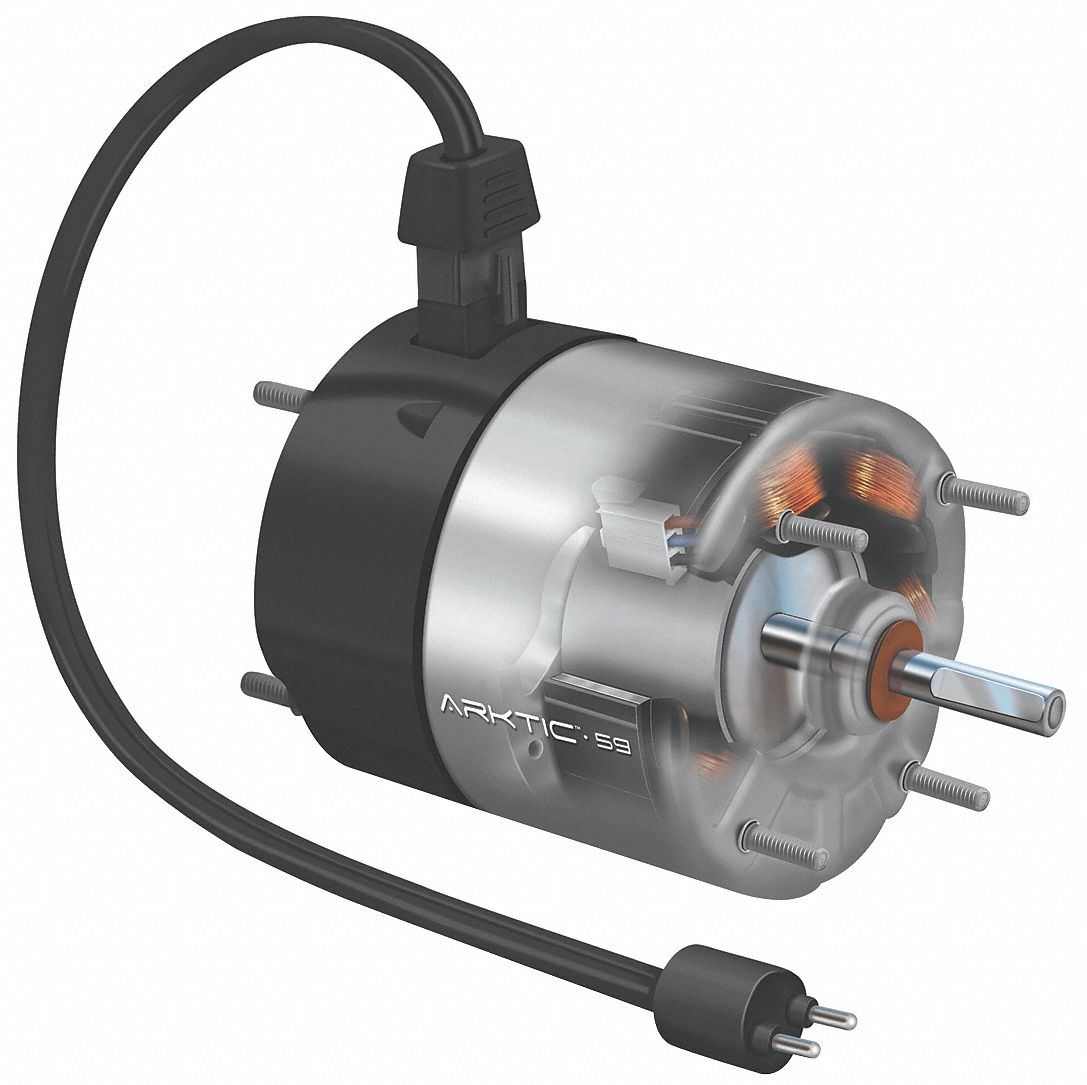

Unit Bearing Motor, Nonstandard, Steel, ECM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Unit Bearing Motor
Motor Type		ECM
Enclosure		Totally Enclosed Air-Over
HP		1/20
Nameplate RPM		1550
NEMA/IEC Frame		Nonstandard
Frame		Nonstandard
Voltage		208-230
Hz		60/50
Phase		1
Full Load Amps		0.45
Output Watts		38
Mounting		Stud
Thermal Protection		Electronic
Insulation Class		B
Service Factor		1.0
Bearings		Shielded Ball
Frame Material		Steel
Max. Ambient Temp.		55 Degrees C
Rotation		CCWLE
Length Less Shaft		3-1/3"
Overall Length		5-31/32"
Shaft Type		Single Flat
Shaft Dia.		5/16"
Shaft Length		2-5/8"
Body Dia.		3-5/16"
Bolt Circle Dia.		2-27/32"
RPM Range		1400-1800
