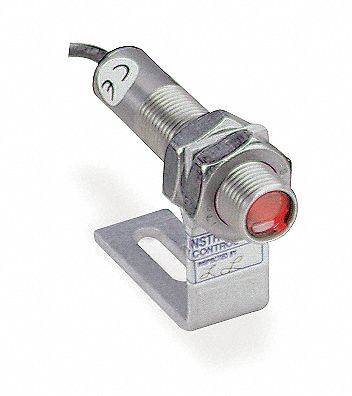

Remote Optical Sensor, Speed 1 To 250, 000 RPM, Standard Sensing Distance 3 Feet @ 45 Degrees From Tape, 8 Foot Cable with 1/8 Inch Stereo Phone Plug, Voltage 3.3 to 15 VDC @ 40 mA, Ambient Operating Temperature -40 To 180 Degrees Fahrenheit, Material Stainless Steel, Light Source Visible Red LED, Target Indicator Green LED, Use with 3T178 and 3T181 Portable Tachometers and 4XL89 and 4KF51 Stroboscope, Diameter 0.625 Inches, Length 2.9 Inches, Includes Mounting Bracket
  • Grainger Item #3WB47
    Price (ea.)$207.00
    BrandMONARCH
    Mfr. Model #ROS-P
    UNSPSC #41115317
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)0.3
    Availability Typically in Stock
    Catalog Page No.803
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemRemote Optical Sensor
RPM1 to 250,000
FeaturesVisible Red LED Light Source and Green LED On-target Indicator
Max. Sensing Distance3 Ft @ 45 Degrees from Reflective Target
Temp. Range-10 to 250 F, -23 to 121 C
MaterialStainless Steel
Length (In.)2.9
Dia.0.625"
For Use With1UFL1 to 1UFL3
IncludesMounting Bracket, 8 Feet Cable with 1/8 In Phono Plug and 12" of Reflective Tape


Other Popular Terms for this Product

  1. • Remote Optical Sensors  (5)
  • <div id="BVRRSourceID"> <div itemscope itemtype="http://schema.org/Product"><meta itemprop="name" content="Remote Optical Sensor" /> <div id="BVRRContentValidationID_3WB47"><div ><!--begin-aggregate-rating--> <meta itemprop="dateModified" content="2013-05-19" /><span itemprop="aggregateRating" itemscope itemtype="http://schema.org/AggregateRating"><meta itemprop="itemReviewed" content="Remote Optical Sensor" />Rated <span itemprop="ratingValue">4</span> out of <span itemprop="bestRating">5</span> by <span itemprop="reviewCount">1</span>reviewer.</span><!--end-aggregate-rating--></div><!--begin-reviews--><div id="BVRRReviewsSoiSectionID_3WB47"><div id='17258704' itemprop="review" itemscope itemtype="http://schema.org/Review"><meta itemprop="itemReviewed" content="Remote Optical Sensor" /><span itemprop="reviewRating" itemscope itemtype="http://schema.org/Rating">Rated <span itemprop="ratingValue">4</span> out of <span itemprop="bestRating">5</span></span> by <span itemprop="author">Bikeric</span><span itemprop="description"> Exactly the &quot;photo eye&quot; I needed.The ROS-P model requires the use of a reflective sticker for proper operation. 12&quot; of Reflective Tape included in the package.Very usable mounting bracket.</span> April 24, 2013<meta itemprop="datePublished" content="2013-04-24" /></div> </div><!--end-reviews--> <script type="text/javascript">document.getElementById('BVRRReviewsSoiSectionID_3WB47').style.display = 'none';</script></div><!--begin-pagination--><div id="BVRRSimplePagerID" class="BVRRPager BVRRSimplePager"><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRCurrentPage"><span class="BVRRNumber BVRRFirstRowNumber">1</span>-<span class="BVRRNumber BVRRLastRowNumber">1</span> <span class="BVRRSeparatorText">of</span> <span class="BVRRNumber BVRRTotalNumber">1</span></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRPreviousPage"></div><div class="BVRRPagerColumn BVRRSimplePagerColumn BVRRNextPage"> </div></div><!--end-pagination--> </div></div>

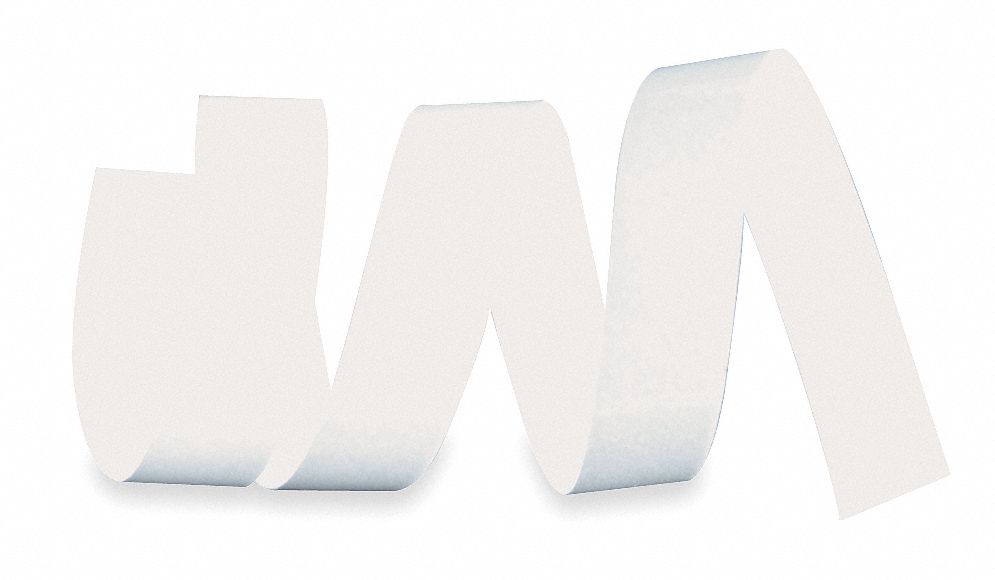

Optional Accessories
