Electrical
>
Voltage Regulation
>
Hardwire Surge Protection Devices

MERSEN Surge Suppressor, 120/240V, 3 Wire, 1 Pole

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Protection Device, Type 1 SPD, Location Type Type 1, Nominal Discharge Current 20kA, Voltage 120/240, Phase 1S, Wire 3, Number of Poles 1, Max. Surge Current Per Phase 50kA, Max. Surge Current Per Mode 50 kA, Max. Continuing Operating Voltage 180/360, Voltage Protection Rating 700V (L-N), 1200V (L-L), Short Circuit Current Rating 200 kA, Modes of Protection L-N, L-L, Mounting Style Chase Nipple with Lock Nut, Material of Construction Polycarbonate

Grainger Item #	5FXV4
Price (ea.)	$143.35
Brand	MERSEN
Mfr. Model #	STT2240SPG
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.0
Availability	Typically in Stock
Catalog Page No.	300
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

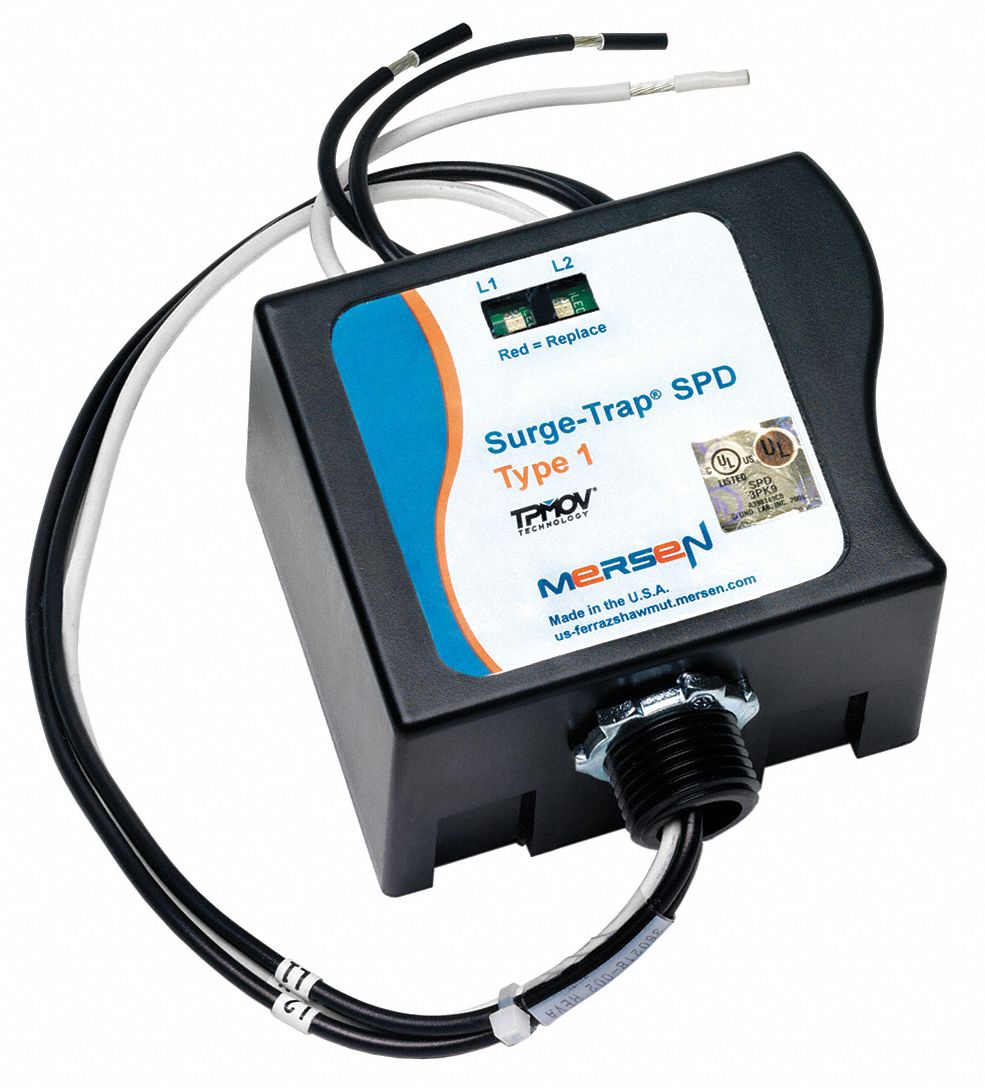

Surge Suppressor, 120/240V, 3 Wire, 1 Pole

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		Type 1 SPD
Location Type		Type 1
Nominal Discharge Current		20kA
Voltage		120/240
Phase		1S
Wire		3
Number of Poles		1
Max. Surge Current Per Phase		50kA
Max. Surge Current Per Mode		50 kA
Max. Continuing Operating Voltage		180/360
Voltage Protection Rating		700V (L-N), 1200V (L-L)
Short Circuit Current Rating		200 kA
Modes of Protection		L-N, L-L
Mounting Style		Chase Nipple with Lock Nut
Material of Construction		Polycarbonate
Enclosure Type		NEMA 2
Wire Gauge		12 AWG
Length		4.4"
Width		3.3"
Depth		2.37"
Standards		UL 1449 3rd Edition
Includes		2 ft. Leads
