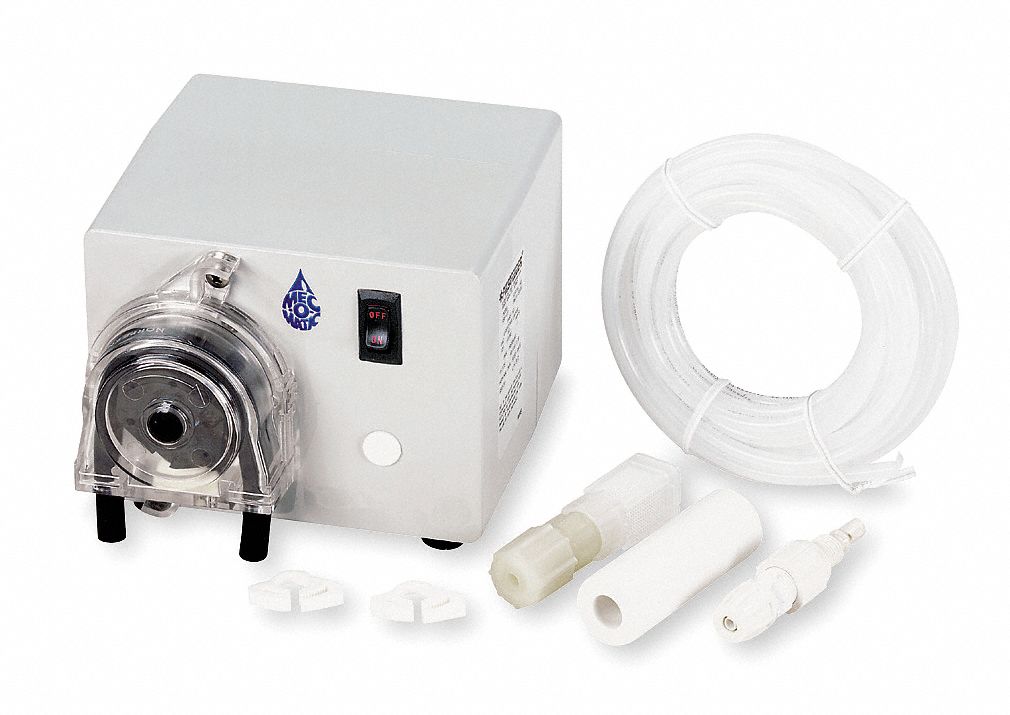

MEC-O-MATIC Metering Pump, 20 GPD, 25 PSI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Peristaltic Metering Pump, Maximum Pressure 25 PSI, Maximum Feed Rate 0.83 GPH, Maximum Flow 20 GPD, Maximum Strokes per Minute 13, Volts 120, Suction Lift 15 Feet, Tubing Size Outside Diameter 7/16 Inch Inside Diameter 1/4 Inch, Width 5 1/6 Inches, Length 8 1/2 Inches, Height 5 1/6 Inches.

Grainger Item #	2P304
Price (ea.)	$363.50
Brand	MEC-O-MATIC
Mfr. Model #	VSP
UNSPSC #	40151552
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.2
Availability	Typically in Stock
Catalog Page No.	4092
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Peristaltic Metering Pump
Type		Multipurpose
Max. Flow (GPD)		20
Max. Pressure (PSI)		25
Max. Viscosity		300 CPS
Voltage		115
Self-Priming		Yes
Suction Lift (Ft.)		24
Reproducibility (%)		+/-2
Turn Down Ratio		7.7:1
Motor RPM		14
Body Material		Polycarbonate
Tubing Material		Norprene(R)
Length (In.)		5.69
Width (In.)		7.62
Number of Feeds		1
Power Cord		6 ft.
Min. Flow Rate (GPD)		2.6
Max. Flow (GPH)		0.83
cc/Min.		52.6
Max. Strokes per Minute		14
Hz		60
Description/Special Features		Valveless, Nonclogging
Compliance		ETL, cETL, ETLsanitary, CE
Standards		ETL, cETL, ETLsanitary, CE

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

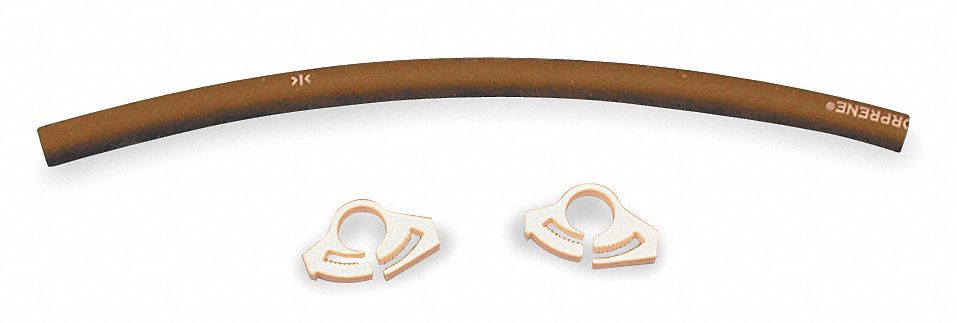

Pump Tubing Kit

Brand:

MEC-O-MATIC

Grainger Item #:

1R422

Price (ea.):

$28.25

Item #	Description	Brand Mfr. Model #	Availability	Price
1R422	Pump Tubing Kit >More Details... Country of Origin: Not Available	MEC-O-MATIC 7013397	Typically in Stock	$28.25
Be the First to Write a Review

	Item #	Description	Brand Mfr. Model #	Availability	Price
	2P305	Metering Pump, 60 GPD, 25 PSI >More Details... Country of Origin: USA	MEC-O-MATIC D50	Typically in Stock	$360.25
