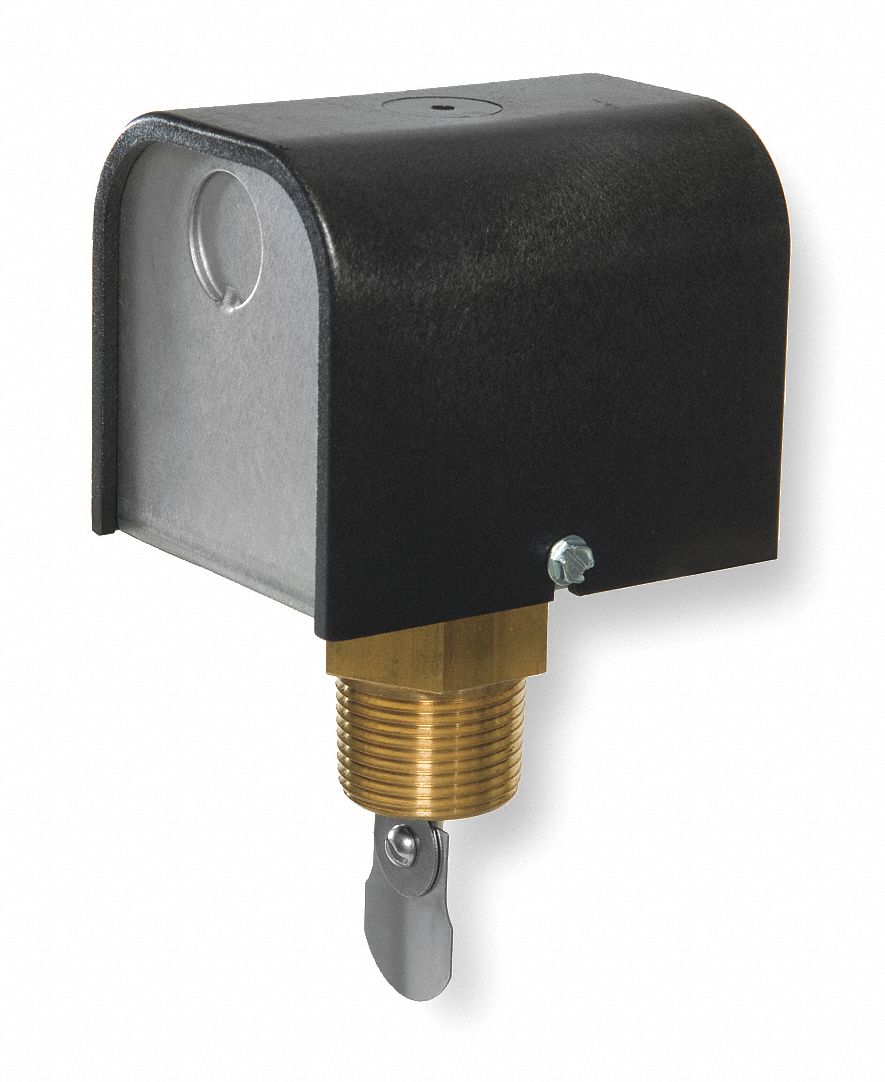

MCDONNELL & MILLER General Purpose Flow Switch, NEMA1

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

General Purpose Switch, Min. Flow Rate 5.8 GPM, Max. Flow GPM 131, Connection Size (In.) 1 NPT, Switch Enclosure NEMA1, Min. Ambient Temp. 32 F, Min. Fluid Temp. 32 F, Max. Fluid Temp. 250 F, Max. Pressure 160 PSI, Operating Velocity Range 130 - 280 FPM, Switch Type Single Pole Double Throw Snap Switch, Contact Rating 7.4A @ 120 VAC - Full Load, 120 VA @ 120 or 240 VAC - Pilot Duty, Body Material Brass, Material of Construction Brass, Stainless Steel, EPDM, Voltage 120/240

Grainger Item #	2RUL3
Price (ea.)	$148.35
Brand	MCDONNELL & MILLER
Mfr. Model #	FS251
UNSPSC #	39121538
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.99
Availability	Typically in Stock
Catalog Page No.	4115
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Switch
Min. Flow Rate (GPM)		5.8
Max. Flow GPM		131
Connection Size (In.)		1 MNPT
Switch Enclosure		NEMA 1
Min. Ambient Temp. (F)		32
Min. Fluid Temp. (F)		32
Max. Fluid Temp. (F)		250
Max. Pressure (PSI)		160
Operating Velocity Range (FPM)		130 to 280
Switch Type		Single Pole Double Throw Snap Switch
Contact Rating		7.4A @ 120 VAC - Full Load, 120 VA @ 120 or 240 VAC - Pilot Duty
Body Material		Brass
Material of Construction		Brass, SS, EPDM
Wetted Materials		Brass, Stainless Steel, EPDM
Max. Operating Velocity (FPM)		600
Voltage		120/240
For Use With		Water Systems
Application		Signal Lights, Alarms, Motors, Automatic Burners and Metering Devices

Other Popular Terms for this Product

• Pump Controls (927)

• Water Sensors (158)

• Flow Switches (125)

• Liquid Flow Switches (116)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

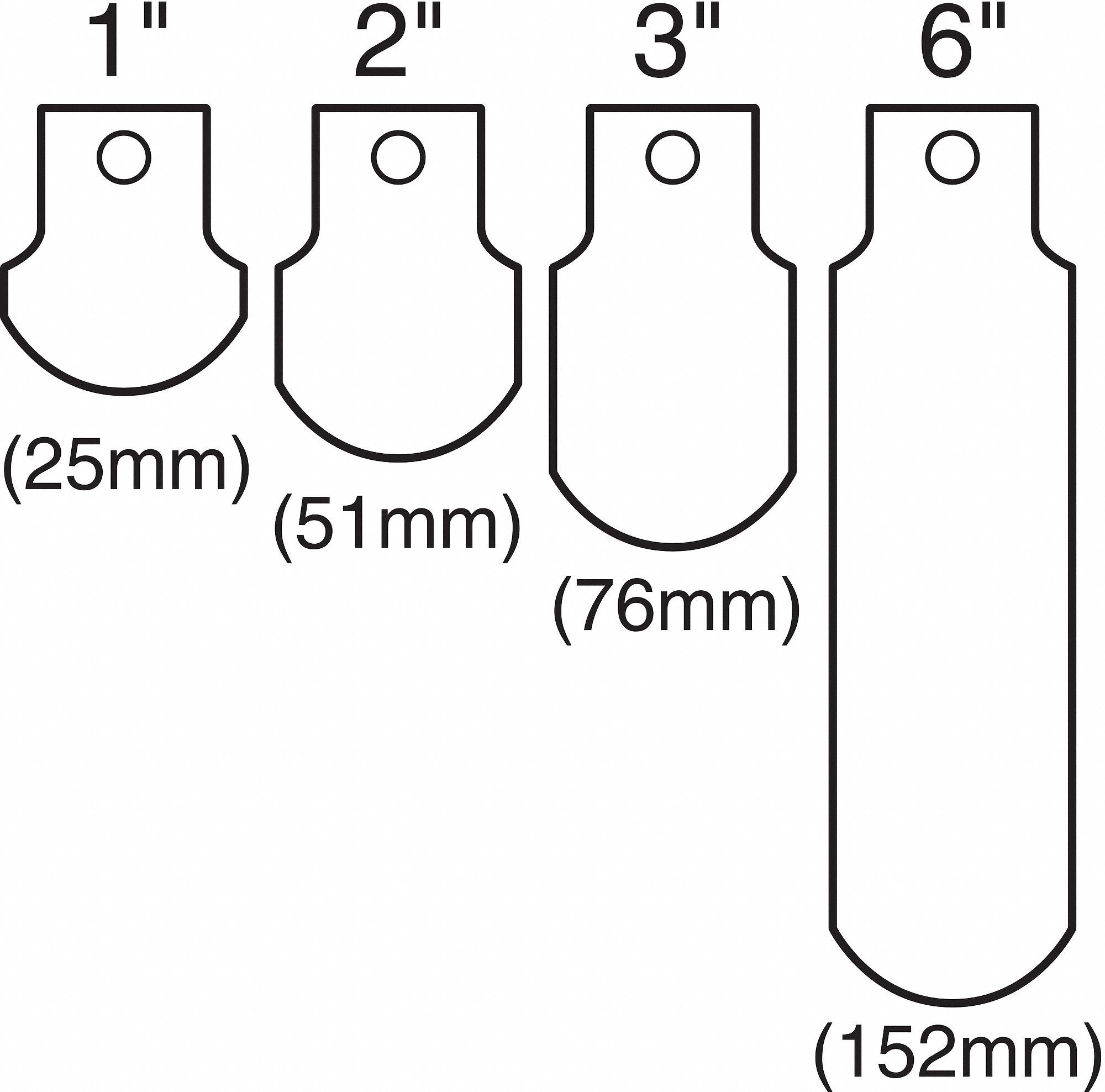

Paddle Kit, SS, PK 4
