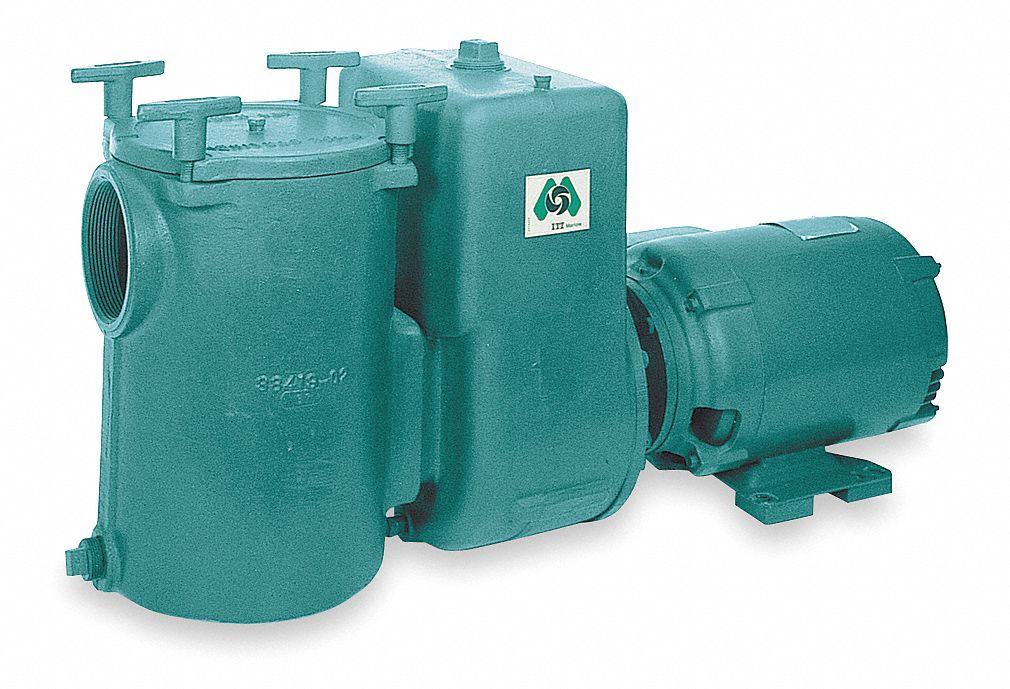

Pool Pump, Self Priming, 7 1/2 HP, 3 Phase, 200-230/460 Voltage, 25.3-22/11 Amps, Inlet/Outlet NPTF 4 x 3 In., ODP Motor Enclosure, 184JM NEMA/IEC Frame, @ 70 Ft. of Head 275, Maximum GPM @ Head (Ft.) 400 @ 37, Best Efficiency GPM @ Head (Ft.) 300 @ 65, Minimum GPM @ Head (Ft.) 75 @ 100, Max. Head 107 Ft., Suction Lift 20 Ft., Max. Liquid Temp. 225 F, 3450 RPM, Length 32 In., Width 12 1/2 In., Height 17 1/2 In., Cast Iron, Cast Iron Impeller

Grainger Item #	4HHJ5
Price (ea.)	$6,668.00
Brand	MARLOW
Mfr. Model #	3B32EC-C2
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	256.0
Availability	Typically in Stock
Catalog Page No.	4052
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pool Pump
Type		Self Priming
HP		7-1/2
Phase		3
Voltage		200-230/460
Amps		25.3-22/11
Inlet/Outlet NPTF (In.)		4 x 3
Motor Type		No
Motor Enclosure		ODP
NEMA/IEC Frame		184JM
GPM of Water @ 40 Ft. of Head		387
GPM of Water @ 50 Ft. of Head		363
GPM of Water @ 60 Ft. of Head		313
GPM of Water @ 70 Ft. of Head		275
GPM of Water @ 80 Ft. of Head		225
Max. GPM @ Head (Ft.)		400 @ 37
Best Efficiency GPM @ Head (Ft.)		300 @ 65
Min. GPM @ Head (Ft.)		75 @ 100
Max. Head (Ft.)		107
Suction Lift (Ft.)		20
Max. Liquid Temp. (F)		225
RPM		3450
Length (In.)		32
Width (In.)		12-1/2
Height (In.)		17-1/2
Material		Cast Iron
Impeller		Cast Iron
GPM of Water @ 90 Ft. of Head		113
GPM of Water @ 100 Ft. of Head		12.5
Standards		NSF-50
Features		Built-in Oversized Suction Trap and Integral Strainer Basket with Easy Access Lid
