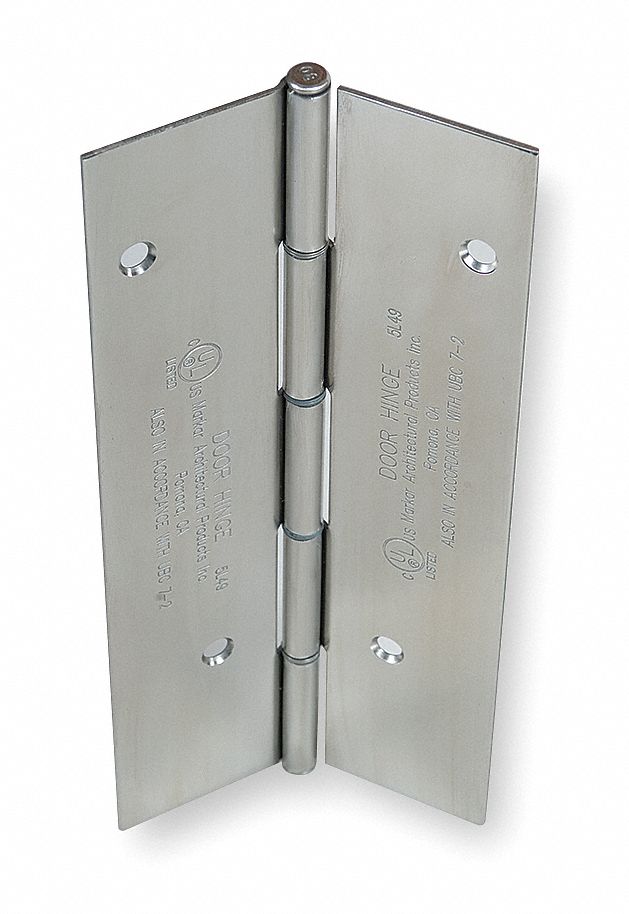

MARKAR SS Edge Mount Continuous Hinge

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hinge, Full Mortise Continous, Bearing Type Split Nylon, Material Stainless Steel, Finish 630 Satin Stainless Steel, Height 96 In., Width 1-11/16 In., Pin Dia. 0.25 In., Pin Material -, Door Thickness 1-3/4 In., Range of Motion 90, Pin Type Non Removable, Corners Square, With Holes, Door Leaf Width 48 In., Leaf Thickness 1/8 In., Load Capacity 600 lb., Stanley Class Number -, Stanley EDP Number -, Standards ANSI/BHMA Standard A 156.26 Grade 2, Mounting -

Grainger Item #	2YEY6
Price (ea.)	$727.50
Brand	MARKAR
Mfr. Model #	FM300-002-630
UNSPSC #	31162403
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	14.87
Availability	Typically in Stock
Catalog Page No.	3095
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hinge
Type		Full Mortise Continous
Bearing Type		Split Nylon
Material		Type 304 Stainless Steel
Finish		630 Satin Stainless Steel
Height		96"
Width		1-11/16"
Pin Dia.		0.25"
Door Thickness		1-3/4"
Range of Motion		90
Pin Type		Non Removable
Corners		Square
Holes		With
Door Leaf Width		48"
Leaf Thickness		1/8"
Load Capacity		600 lb.
Standards		ANSI/BHMA Standard A 156.26 Grade 2
For Use With		Doors with 1/4" Clearance Between Edge of Door and Frame
