Motors
>
Definite Purpose AC Motors
>
Instant Reverse Motors

MARATHON MOTORS Instant Rev Motor, 1/2 HP, 1625 RPM, 115 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Instant Reverse Motor, PSC, Totally Enclosed Nonventilated, 1/2 HP, 1625 Nameplate RPM, 48 NEMA/IEC Frame, Voltage 115, 5.8 Full Load Amps, 1 Phase, 60 Hz, Base Mounting, Ball Bearings, Auto Thermal Protection, 1.0 Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1/2 In., Shaft Length 1-1/2 In., Insulation Class B, Number of Wires 3, Standards UL Recognized, CSA Certified, and CE Certified

Grainger Item #	3VG46
Price (ea.)	$315.00
Brand	MARATHON MOTORS
Mfr. Model #	5KCP35NNA670T
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.0
Availability	Typically in Stock
Catalog Page No.	41
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

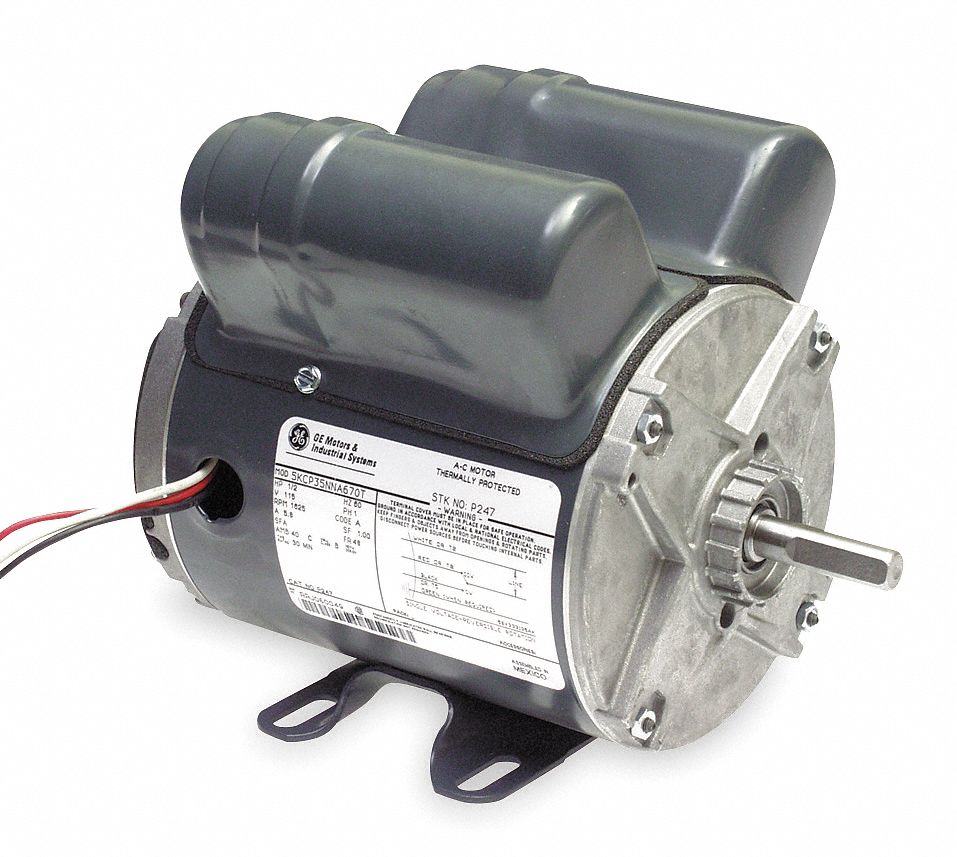

Instant Rev Motor, 1/2 HP, 1625 RPM, 115 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Instant Reverse Motor
Motor Type		PSC
Enclosure		Totally Enclosed Nonventilated
HP		1/2
Nameplate RPM		1625
NEMA/IEC Frame		48
Frame		48
Voltage		115
Full Load Amps		5.8
Phase		1
Hz		60
Mounting		Base
Bearings		Ball
Thermal Protection		Auto
Service Factor		1.0
Ambient Temperature		40 Degrees C
Shaft Dia.		1/2"
Shaft Length		1-1/2"
Insulation Class		B
Number of Wires		3
Application		For Door Operators, Machine Tools, Cranes, Hoists, Gates and Remote Control Instant Reversibility
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, and CE Certified
