Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

460, Eff 68.8

| Write a Review
| Read all Reviews
| Read all Ask & Answer

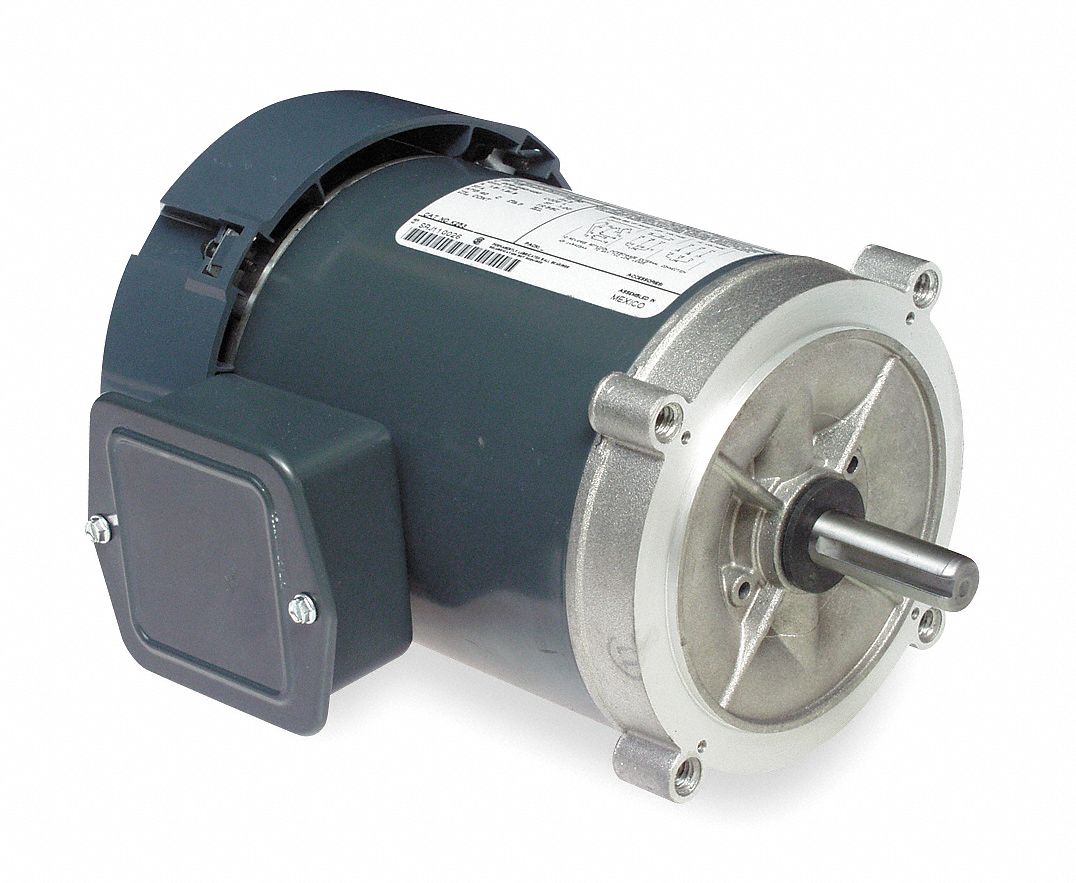

General Purpose Motor, 3-Phase, 1/3 HP, Nameplate RPM 1725, Voltage 208-230/460, 56C Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 1.5-1.6/0.8, 60 Hz, Face Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.0Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 10-9/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	3N686
Price (ea.)	$247.50
Brand	MARATHON MOTORS
Mfr. Model #	5K33JNA943B
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	16.4
Availability	Typically in Stock
Catalog Page No.	18
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Mtr, 3 Ph, 1/3hp, 1725, 208-230/460, Eff 68.8

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		1.5-1.6/0.8
Number of Speeds		1
Mounting		Face
Thermal Protection		None
Insulation Class		B
Service Factor		1.0
Frame Material		Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Overall Length		10-9/16"
Shaft Type		Keyed
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		68.0%
Warranty (Years)		1
