MARATHON MOTORS Motor, 3 Ph, 1 HP, 1755, 143TC, Eff 82.5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1 HP, Nameplate RPM 1755, Voltage 208-230/460, 143TC Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 3.2-3/1.5, 2.9/1.45, 60/50 Hz, Face MountingInsulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-7/8 In.

Grainger Item #	30E439
Price (ea.)	$324.00
Brand	MARATHON MOTORS
Mfr. Model #	143TTFR4329
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	31.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	18
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

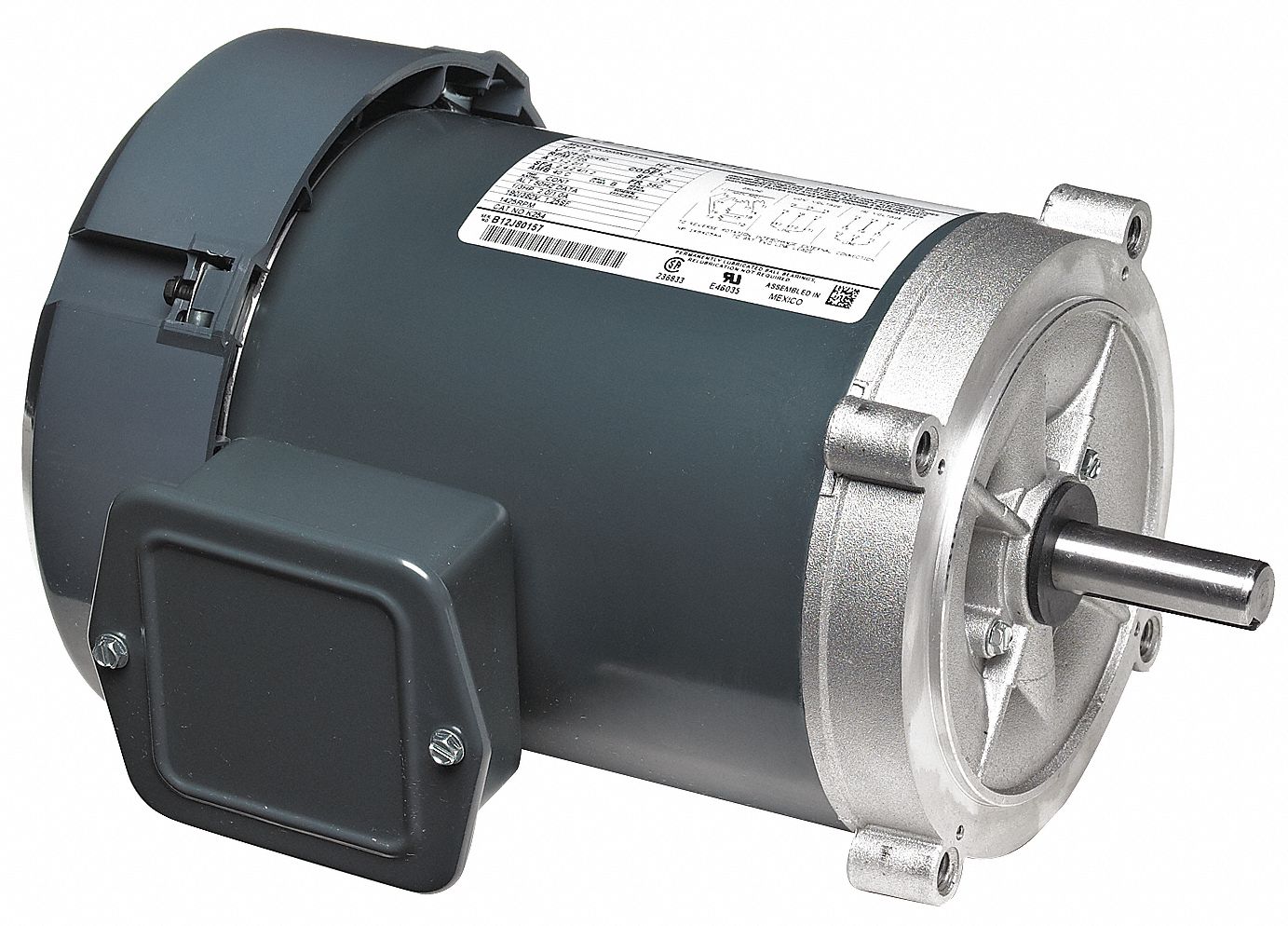

Motor, 3 Ph, 1 HP, 1755, 143TC, Eff 82.5

Enlarge Image

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		1755
NEMA/IEC Frame		143TC
Frame		143TC
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		3.2-3/1.5, 2.9/1.45
Number of Speeds		1
Mounting		Face
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Aluminum
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Length Less Shaft		10-3/4"
Overall Length		12-7/8"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		82.5%
Warranty (Years)		3
Footnotes		25
