MARATHON MOTORS Pump Motor, 3-Ph, 1 HP, 1725, 230/460, 56C

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Car Wash Motor, 3-Phase, Totally Enclosed Fan-Cooled, 1, 1725 Nameplate RPM, 56C NEMA/IEC Frame, 56C Frame, CW/CCW Rotation, 230/460 Voltage, Full Load Amps 3.8/1.9, 3 Phase, 60/50 Hz, Face Mounting, Bearings Double-Sealed Ball, Thermal Protection Auto, 1.15, Ambient Temperature 40 Degrees C, Shaft Dia. 5/8 In., 1-7/8 In., Insulation Class F, 77.0 Nominal Efficiency, Standards UL Recognized and CSA Certified

Grainger Item #	5XB81
Price (ea.)	$438.75
Brand	MARATHON MOTORS
Mfr. Model #	5K49MN4618X
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.65
Availability	Typically in Stock
Catalog Page No.	33
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

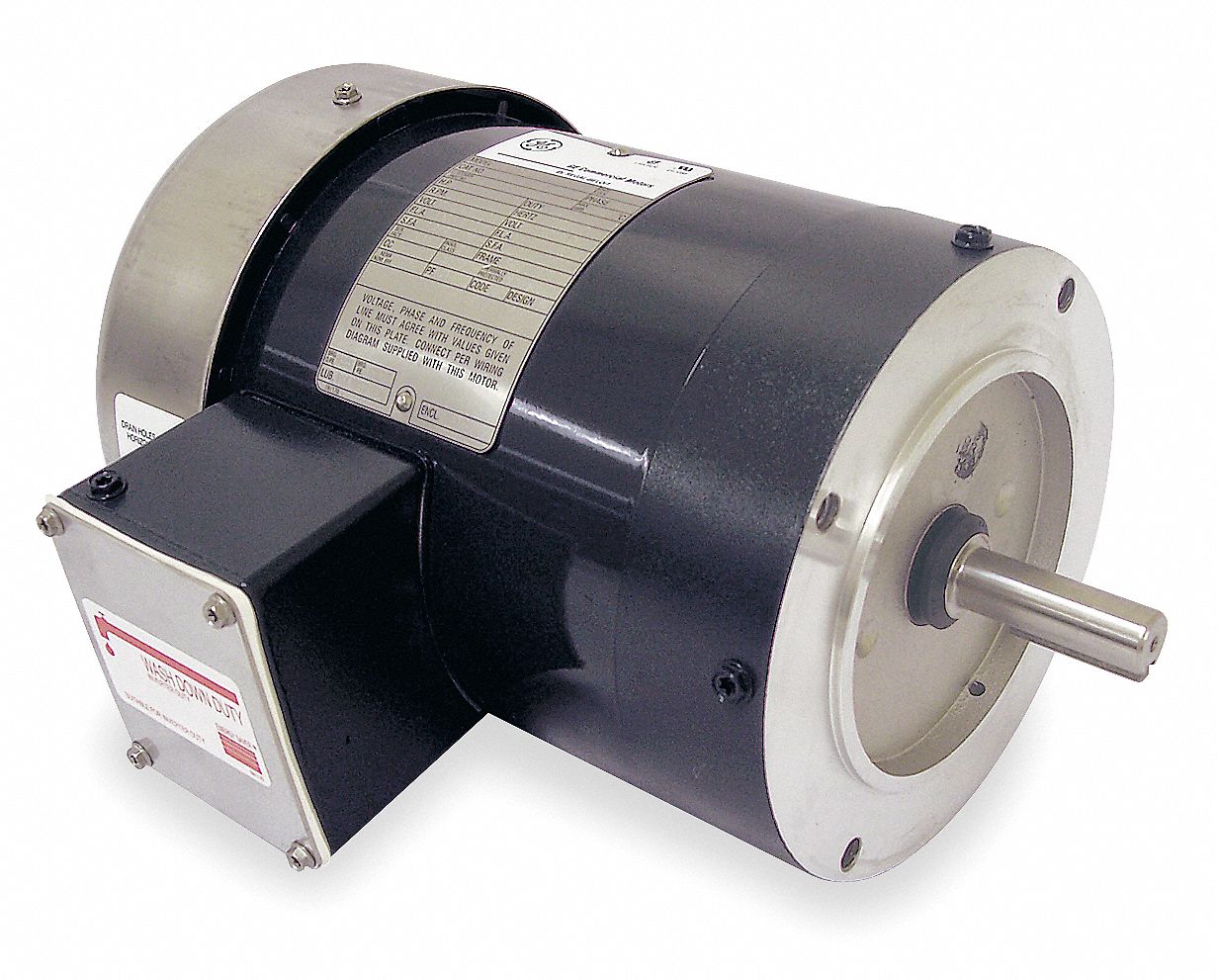

Pump Motor, 3-Ph, 1 HP, 1725, 230/460, 56C

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Car Wash Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		1725
NEMA/IEC Frame		56C
Frame		56C
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		3.8/1.9
Phase		3
Hz		60/50
Mounting		Face
Bearings		Double-Sealed Ball
Thermal Protection		Auto
Service Factor		1.15
Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Insulation Class		F
RPM Range		1400-1800
Nominal Efficiency		77.0
Standards		UL Recognized and CSA Certified
