MARATHON MOTORS Air Compr Motor, 3 HP, 3450 rpm, 230V, 56

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Motor, Capacitor-Start, Open Dripproof, 3 HP, Nameplate RPM 3450, 56 Frame, Voltage 230, 60 Hz, 1 Phase, Full Load Amps 14.5, Base Mounting, Thermal Protection Manual, Insulation Class B, 1.0 Service FactorMax. Ambient Temp. 40 Degrees C, Rotation CCWSE, Overall Length 11-15/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	3K788
Price (ea.)	$313.00
Brand	MARATHON MOTORS
Mfr. Model #	5KCR48UN2653Y
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	32.8
Availability	Typically in Stock
Catalog Page No.	41
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

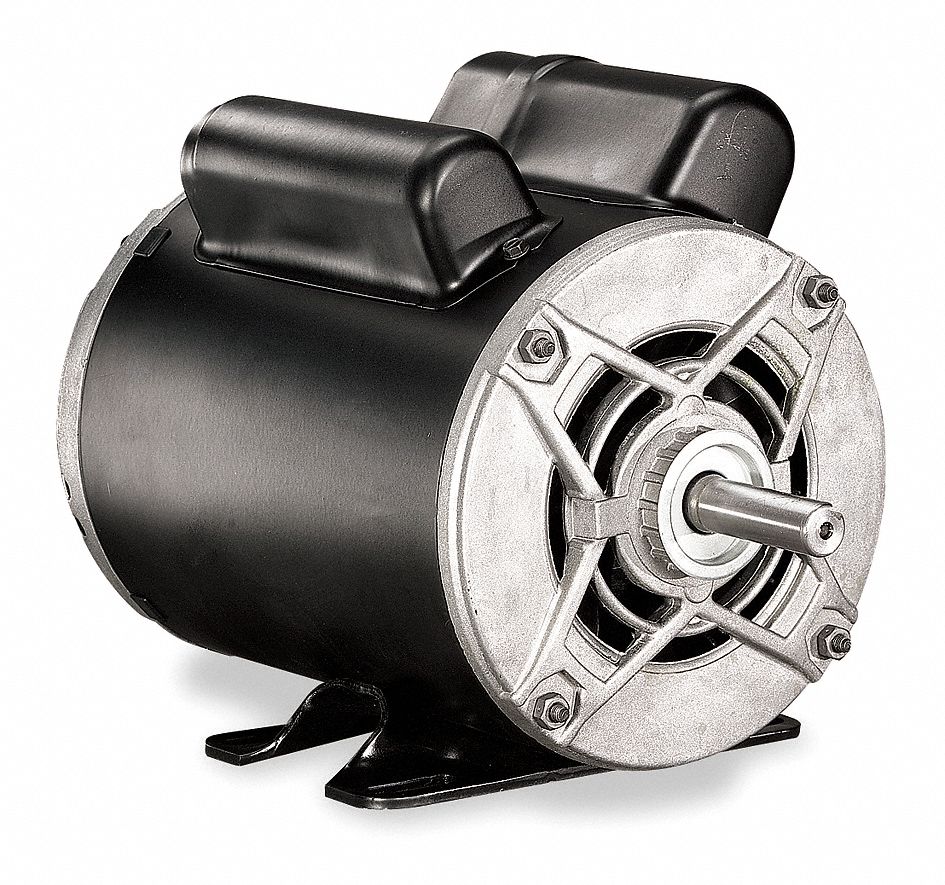

Air Compr Motor, 3 HP, 3450 rpm, 230V, 56

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Compressor Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		3
Nameplate RPM		3450
NEMA/IEC Frame		56
Frame		56
Voltage		230
Hz		60
Phase		1
Full Load Amps		14.5
Mounting		Base
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Rotation		CCWSE
Overall Length		11-15/16"
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Duty		Continuous
Capacitor Included		Yes
RPM Range		2350-3600

Other Popular Terms for this Product

• Air Compressor Motors (869)

• Compressor Motors (801)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

Motor Mounting Base

Brand:

DAYTON

Grainger Item #:

3M276

Price (ea.):

$29.10

Item #	Description	Brand Mfr. Model #	Availability	Price
3M276	Motor Mounting Base >More Details... Country of Origin: USA	DAYTON 3M276	Typically in Stock	$29.10
