MARATHON ELECTRIC
Washdown Mtr, Cap Strt, TEFC, 1 HP, 3450 rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Washdown Motor, Capacitor-Start, 1 HP, 3450 Nameplate RPM, Voltage 115/208-230, Phase 1, 56C Frame, Totally Enclosed Fan-Cooled, Full Load Amps 12.0/6.2-6.0, 60 Hz, Face Mounting, Thermal Protection None, F Insulation Class, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 12-3/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Body Dia. 6-1/2 In., Length Less Shaft 10-5/16 In., Continuous Duty, Frame Material Epoxy Coated Steel

Grainger Item #	1TUR3
Price (ea.)	$547.00
Brand	MARATHON ELECTRIC
Mfr. Model #	056C34W15303
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	31.4
Availability	Typically in Stock
Catalog Page No.	31
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

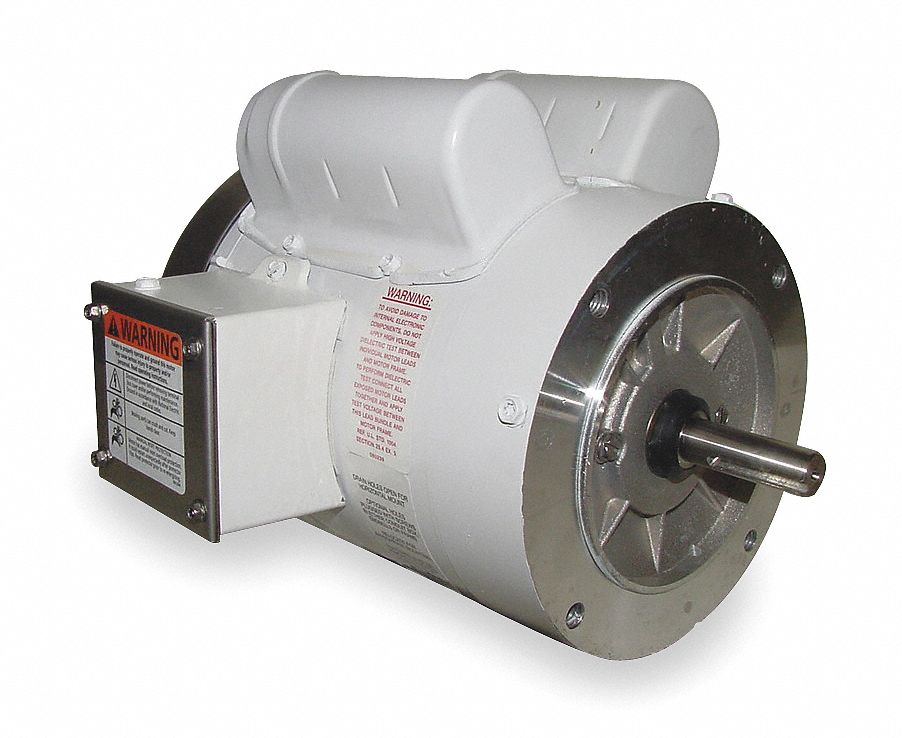

Washdown Mtr, Cap Strt, TEFC, 1 HP, 3450 rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Washdown Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		3450
NEMA/IEC Frame		56C
Frame		56C
NEMA Design		N
Rotation		CW/CCW
Voltage		115/208-230
Full Load Amps		12.0/6.2-6.0
Phase		1
Hz		60
Mounting		Face
Bearings		Ball
Frame Material		Epoxy Coated Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Body Dia.		6-1/2"
Length Less Shaft		10-5/16"
Overall Length		12-3/16"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Shaft Material		303 Stainless Steel
Conduit Box		Cast Oversized Gasketed
Drain Plugs		(10) Total - (4) Each End and (2) In Conduit Box
Endshields		Epoxy Painted Aluminum
Nominal Efficiency		70.0%
Standards		UL Recognized (E47479), CSA Certified (LR63596), USDA Approved
