MARATHON ELECTRIC
Brake Kit, Face Mtg, 6 lb-ft, 115/208-230 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motor Brake Kit, Static Torque 6 lb-ft, For Use with Black Max Motors, 1/4 to 30 HP, RPM Range 2X Motor Base Speed, Voltage 115/208-230, 60/50 Hz, 1 Phase, Holding Amps 4.3, Inrush Amps 0.3, Face Mounting, Max Ambient Temperature 40 C, Enclosure IP23, Enclosure Material Cast Iron/Rolled Steel, Wire Termination Flying Leads, Diameter 6-9/16 In, Overall Length 8-1/4 In, ODE Shaft Diameter 5/8 In, Requires Black Max Motor, Includes Mounting Hardware

Grainger Item #	5TJA3
Price (ea.)	$678.00
Brand	MARATHON ELECTRIC
Mfr. Model #	KIT BM6BRK115
UNSPSC #	26101809
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	7.11
Availability	Typically in Stock
Catalog Page No.	36
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

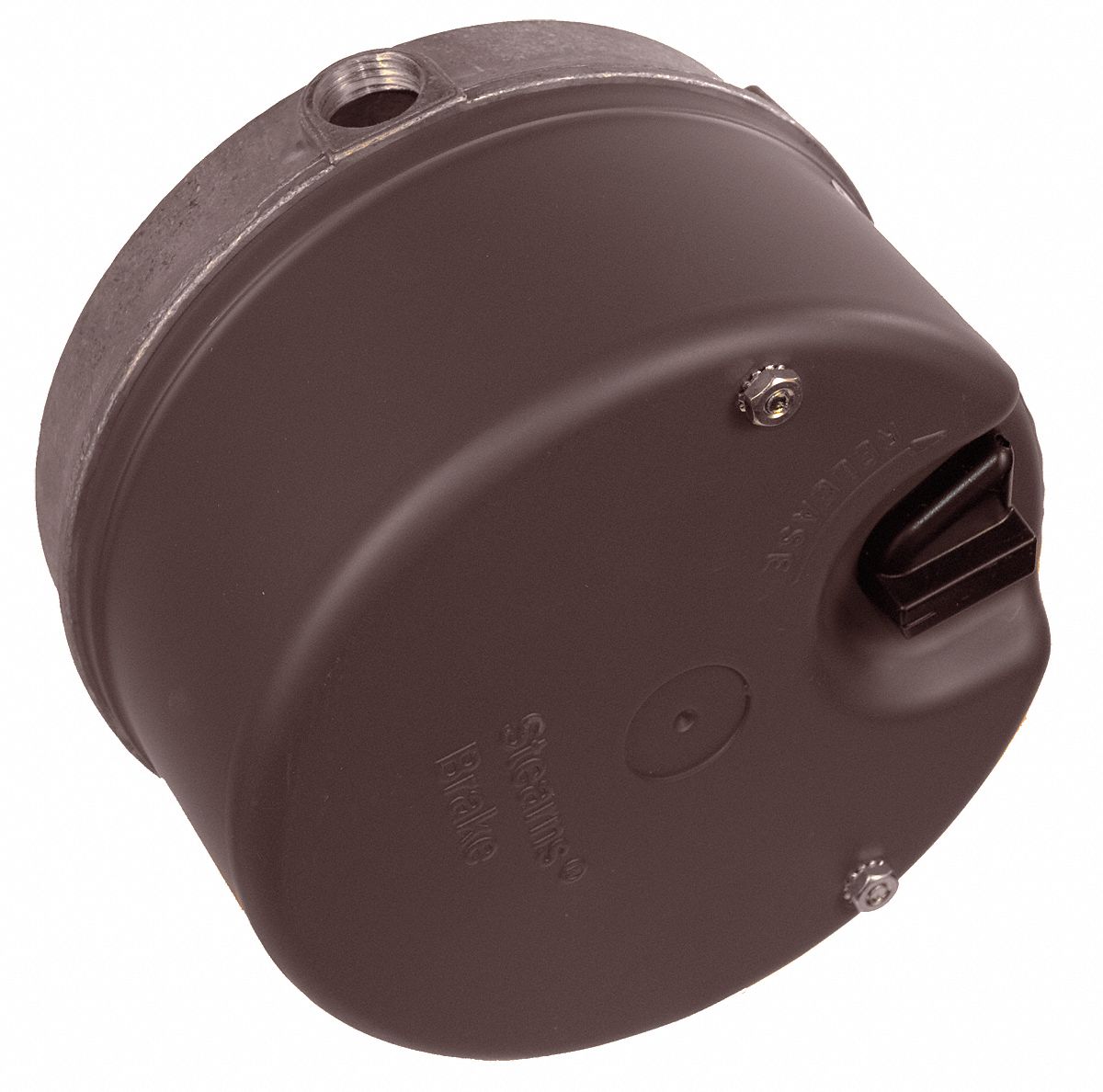

Brake Kit, Face Mtg, 6 lb-ft, 115/208-230 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motor Brake Kit
Static Torque		6 lb-ft
For Use With		Black Max Motors
HP		1/4 to 30
RPM Range		2X Motor Base Speed
Voltage		115/208-230
Hz		60/50
Phase		1
Holding Amps		4.3
Inrush Amps		0.3
Mounting		Face
Max. Ambient Temperature		40 C
Enclosure		IP23
Enclosure Material		Cast Iron/Rolled Steel
Wire Termination		Flying Leads
Diameter		6-9/16"
Overall Length		5.29"+2.94" (cover access)
ODE Shaft Diameter		5/8"
Standards		CSA Certified
Manufacturers Warranty Length		3 Years
Requires		Black Max Motor
Mfr. Stock No.		105602100BPF
Includes		Mounting Hardware
