MARATHON ELECTRIC Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hazardous Location Motor, 3-Phase, Totally Enclosed Fan-Cooled, 15 HP, 1178 Nameplate RPM, 284T NEMA/IEC Frame, NEMA Design B, CW/CCW Rotation, Voltage 230/460, Full Load Amps 41/20.4, Phase 3, 60/50 Hz, Foot Mounting, Ball Bearings, Frame Material Cast Iron, Thermal Protection T Stat, Service Factor 1.15, Hazardous Location Class 1 C, D / 2 F, G, Max. Ambient Temp. 40 Degrees C, Temp. Code T3B, Shaft Dia. 1-7/8 In., Shaft Length 4-5/8 In., Overall Length 26-5/16 In., Lead Length 8 In.

Grainger Item #	5VYH0
Price (ea.)	$4,912.00
Brand	MARATHON ELECTRIC
Mfr. Model #	284TTGN6576
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	532.0
Availability	Typically in Stock
Catalog Page No.	28
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

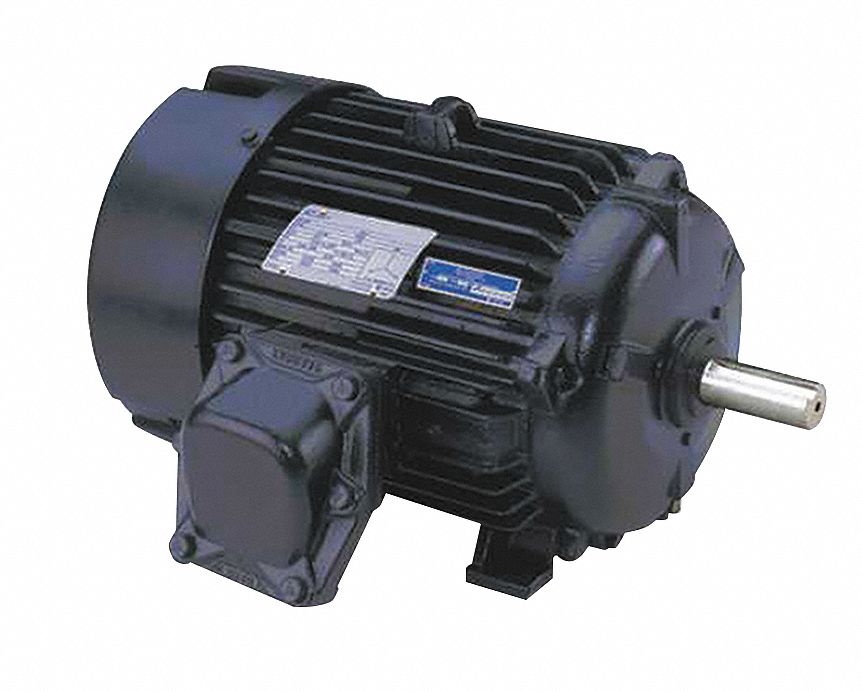

Hazardous Loc Mtr, 3 Ph, TEFC, 15 HP, T3B

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hazardous Location Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		15
Nameplate RPM		1178
NEMA/IEC Frame		284T
Frame		284T
NEMA Design		B
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		41/20.4
Phase		3
Hz		60/50
Mounting		Foot
Bearings		Ball
Frame Material		Cast Iron
Thermal Protection		T Stat
Service Factor		1.15
Hazardous Location Class		1 C,D / 2 F,G
Max. Ambient Temp.		40 Degrees C
Temp. Code		T3B
Shaft Dia.		1-7/8"
Shaft Length		4-5/8"
Length Less Shaft		21-11/16"
Overall Length		26-5/16"
Lead Length		8"
Insulation Class		F
RPM Range		1000-1380
Duty		Continuous
Nominal Efficiency		91.7%
Efficiency Group		NEMA Premium
Includes		(11) Leads In Conduit Box
Standards		UL Listed (E12044), CSA Certified (LR47504)
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
