MARATHON ELECTRIC
Hzrdus Loc Mtr, Cap Strt, TEFC, 3/4 HP, T3B

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hazardous Location Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 3/4 HP, 1725 Nameplate RPM, 56 NEMA/IEC FrameCW/CCW Rotation, Voltage 115/208-230, Full Load Amps 11.0/5.4-5.5, Phase 1, 60 Hz, Base Mounting, Ball Bearings, Frame Material Rolled Steel, Thermal Protection Auto, Service Factor 1.0, Hazardous Location Class 1 C, D / 2 E, F, G, Max. Ambient Temp. 40 Degrees C, Temp. Code T3B, Shaft Dia. 5/8 In., Shaft Length 1-7/8 In., Overall Length 14-29/64 In., Lead Length 6 In.

Grainger Item #	1TUN2
Price (ea.)	$541.00
Brand	MARATHON ELECTRIC
Mfr. Model #	56C17G15525
UNSPSC #	26101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	33.3
Availability	Typically in Stock
Catalog Page No.	27
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

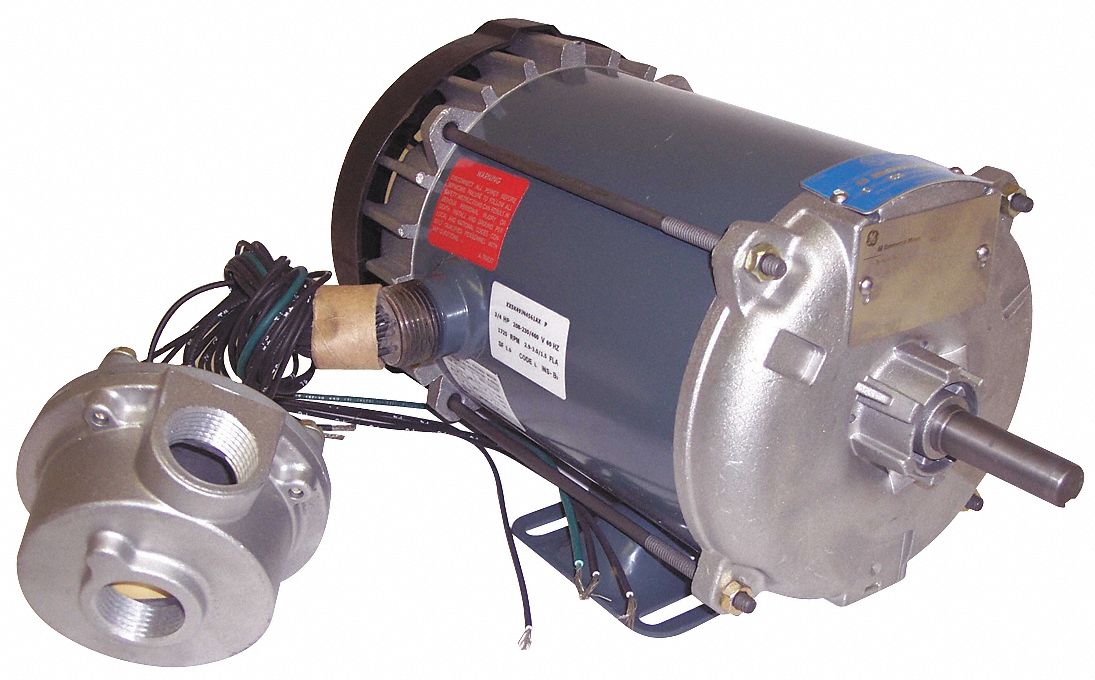

Hzrdus Loc Mtr, Cap Strt, TEFC, 3/4 HP, T3B

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hazardous Location Motor
Motor Type		Capacitor-Start
Enclosure		Totally Enclosed Fan-Cooled
HP		3/4
Nameplate RPM		1725
NEMA/IEC Frame		56
Frame		56
Rotation		CW/CCW
Voltage		115/208-230
Full Load Amps		11.0/5.4-5.5
Phase		1
Hz		60
Mounting		Base
Bearings		Ball
Frame Material		Rolled Steel
Thermal Protection		Auto
Service Factor		1.0
Hazardous Location Class		1 C,D / 2 E,F,G
Max. Ambient Temp.		40 Degrees C
Temp. Code		T3B
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		12-37/64"
Overall Length		14-29/64"
Lead Length		6"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous
Includes		Conduit Box (Unmounted), Leads Through 1" NPT Nipple
Standards		UL Listed (E12044), CSA Certified (LR47504)
