MARATHON ELECTRIC Motor, 3 Ph, 1/2 HP, 1140, 56C, Eff 68.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1/2 HP, Nameplate RPM 1140, Voltage 208-230/460, 56C Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 2.4-2.7/1.35, 2.4/1.2, 60/50 Hz, Face/Removable Base MountingInsulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 11-7/8 In.

Grainger Item #	30E463
Price (ea.)	$333.00
Brand	MARATHON ELECTRIC
Mfr. Model #	56T11F5309
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	23.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	18
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

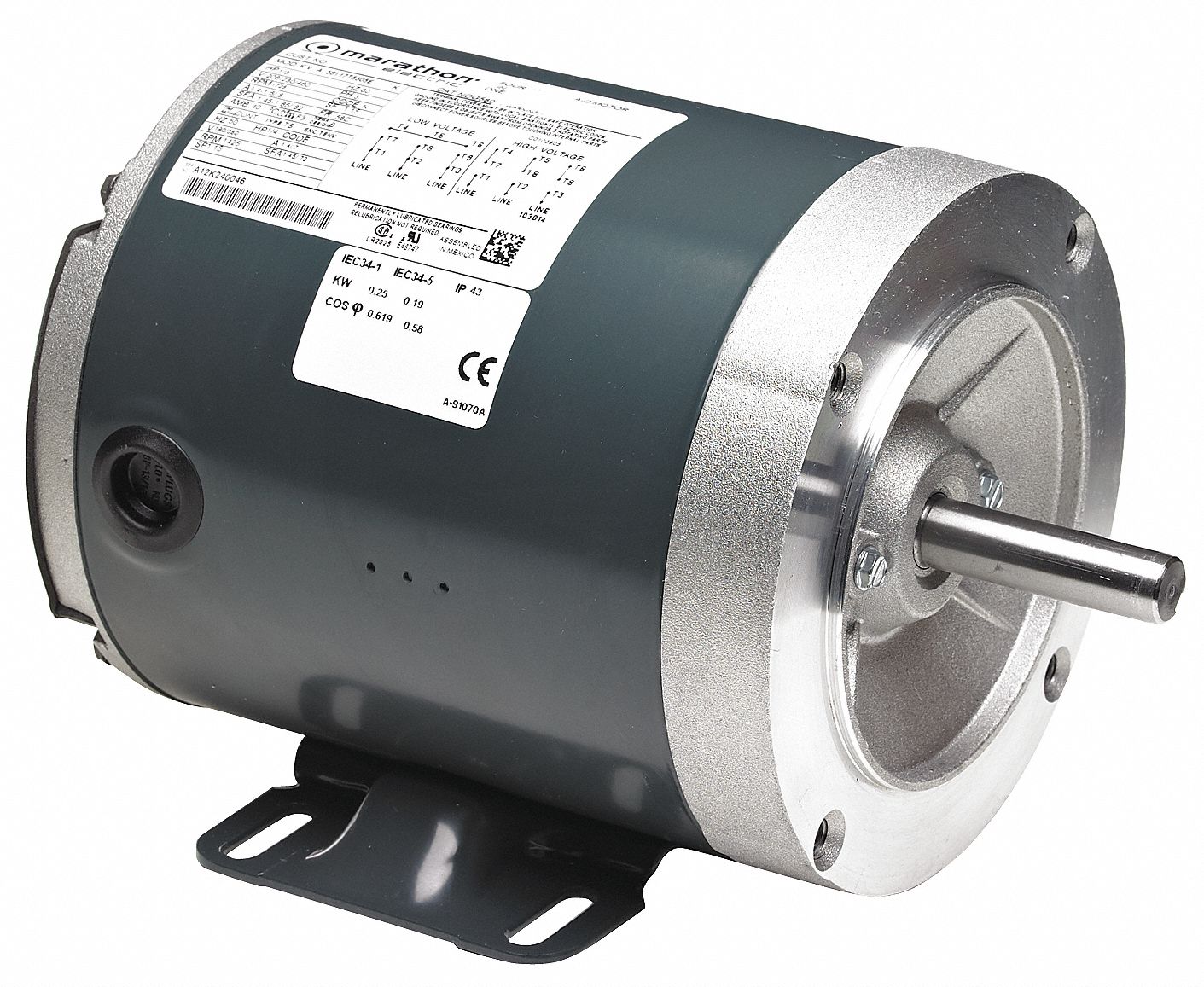

Motor, 3 Ph, 1/2 HP, 1140, 56C, Eff 68.0

Enlarge Image

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1/2
Nameplate RPM		1140
Frame		56C
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		2.4-2.7/1.35, 2.4/1.2
Number of Speeds		1
Mounting		Face/Removable Base
Mounting Position		Horizontal/Vertical
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Rolled steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Length Less Shaft		9-3/4"
Overall Length		11-7/8"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		68.0%
Warranty (Years)		1
Footnotes		25,28
