MARATHON ELECTRIC Motor, 3 Ph, 1 HP, 1725, 143TC, Eff 82.5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1 HP, Nameplate RPM 1725, Voltage 208-230/460, 143TC Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 3.3-3.1/1.55, 2.8/1.4, 60/50 Hz, Face MountingInsulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-1/2 In.

Grainger Item #	30E442
Price (ea.)	$294.00
Brand	MARATHON ELECTRIC
Mfr. Model #	143TTDR14049
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	38.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	18
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

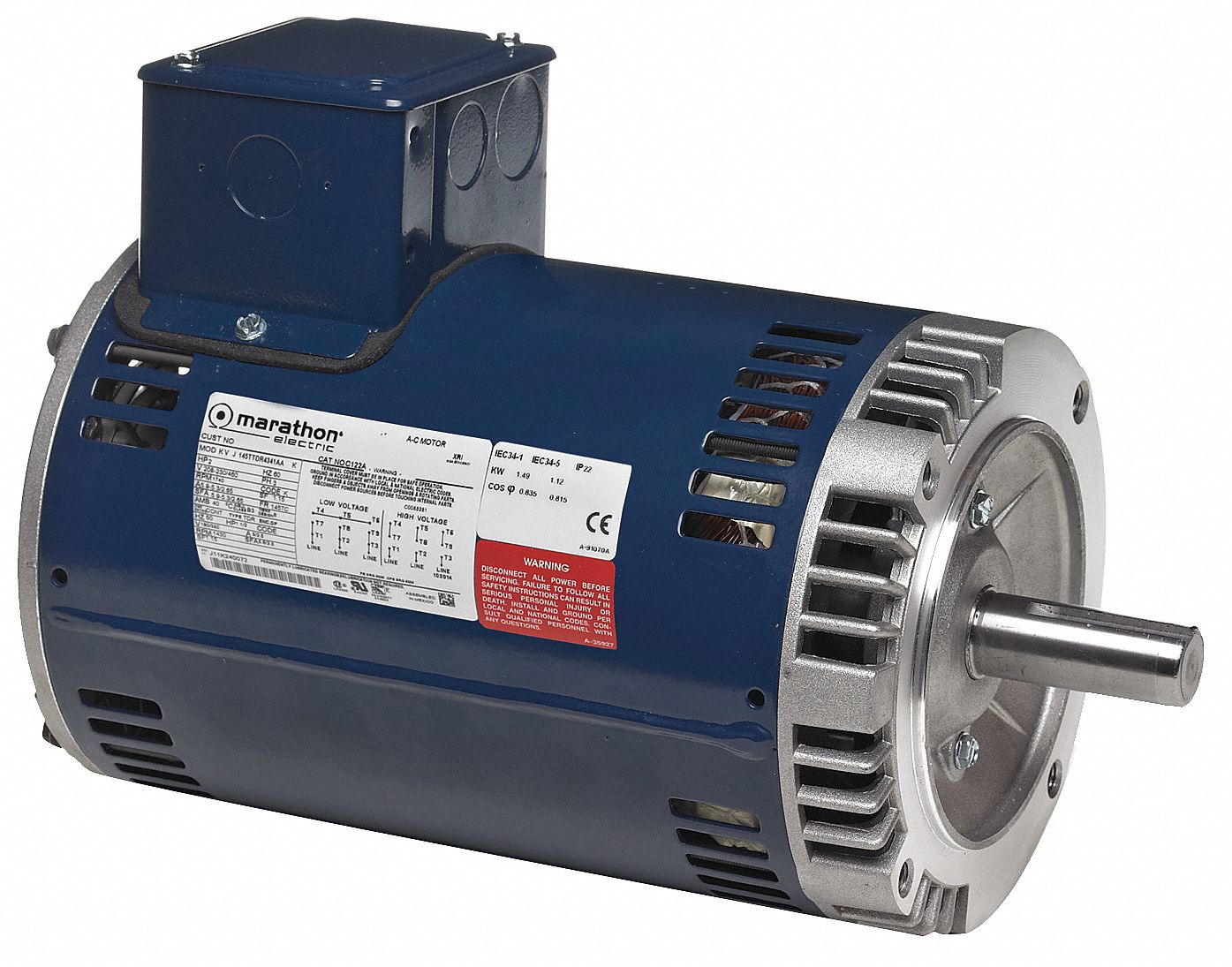

Motor, 3 Ph, 1 HP, 1725, 143TC, Eff 82.5

Enlarge Image

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		1
Nameplate RPM		1725
NEMA/IEC Frame		143TC
Frame		143TC
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		3.3-3.1/1.55, 2.8/1.4
Number of Speeds		1
Mounting		Face
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Length Less Shaft		10-3/8"
Overall Length		12-1/2"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		82.5%
Warranty (Years)		3
Footnotes		25
