Farm Duty Mtr, Splt Ph, TENV, 1/3hp, 1725rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Split-Phase, 1/3 HP, Nameplate RPM 1725, Voltage 115/230, 1 Phase, Frame 48NY, Totally Enclosed Nonventilated, Full Load Amps 5.3/2.7, 60 Hz, Flange Mounting, Thermal Protection Manual, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW RotationShaft Dia. 1/2 In., Shaft Length 1-13/16 In.

Grainger Item #	4K118
Price (ea.)	$300.75
Brand	MARATHON ELECTRIC
Mfr. Model #	5KH39QN9508Y
UNSPSC #	26101611
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.0
Availability	Typically in Stock
Catalog Page No.	55
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

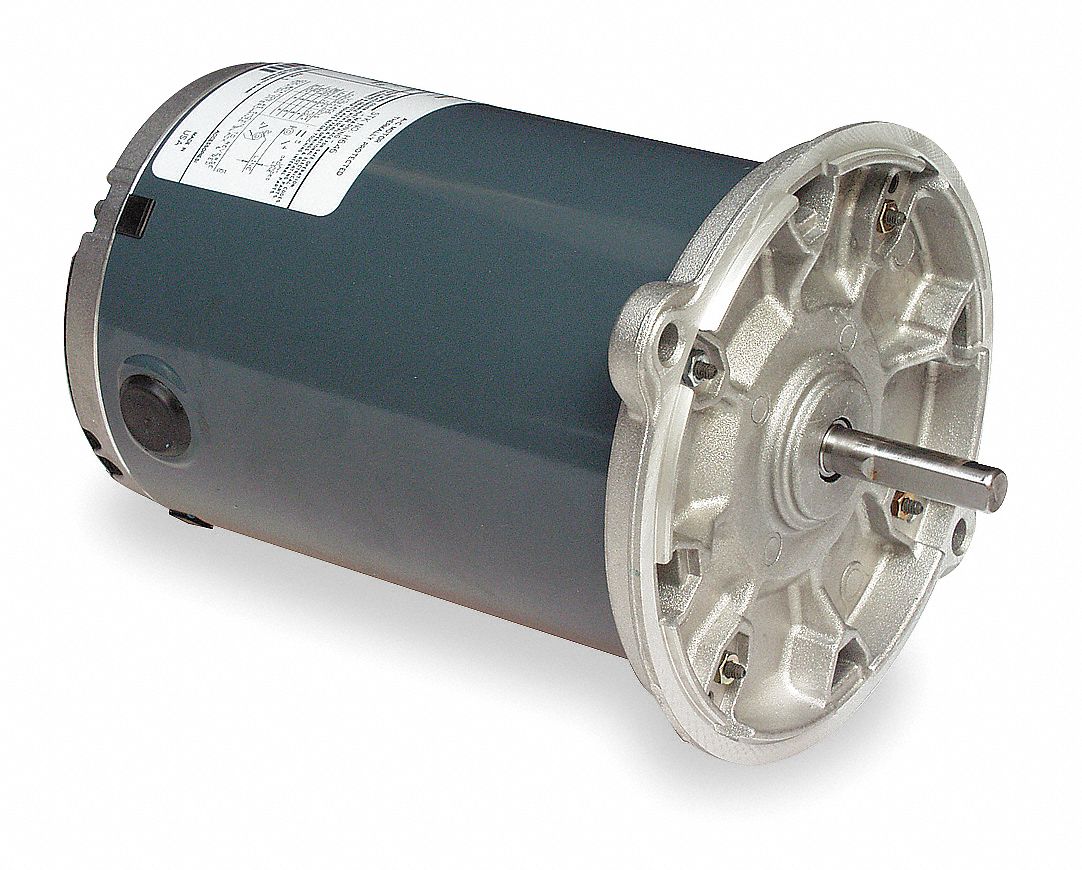

Farm Duty Mtr, Splt Ph, TENV, 1/3hp, 1725rpm

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Farm Duty Motor
Motor Type		Split-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		48NY
Frame		48NY
Rotation		CW/CCW
Voltage		115/230
Full Load Amps		5.3/2.7
Phase		1
Hz		60
Mounting		Flange
Bearings		Ball
Thermal Protection		Manual
Service Factor		1.0
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		1/2"
Shaft Length		1-13/16"
Insulation Class		B
RPM Range		1400-1800
Duty		Continuous
