Motors
>
Definite Purpose AC Motors
>
Farm Duty Motors

MARATHON ELECTRIC
Farm Duty Mtr, Splt Ph, TENV, 1/4hp, 1140rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Farm Duty Motor, Split-Phase, 1/4 HP, Nameplate RPM 1140, Voltage 115, 1 Phase, Frame 56, Totally Enclosed Nonventilated, Full Load Amps 5.6, 60 Hz, Cradle Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temperature 40 Degrees C, CW/CCW RotationShaft Dia. 5/8 In., Shaft Length 1-7/8 In., Frame Material Rolled steel

Grainger Item #	33L617
Price (ea.)	$286.50
Brand	MARATHON ELECTRIC
Mfr. Model #	5KH49MN6057S
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

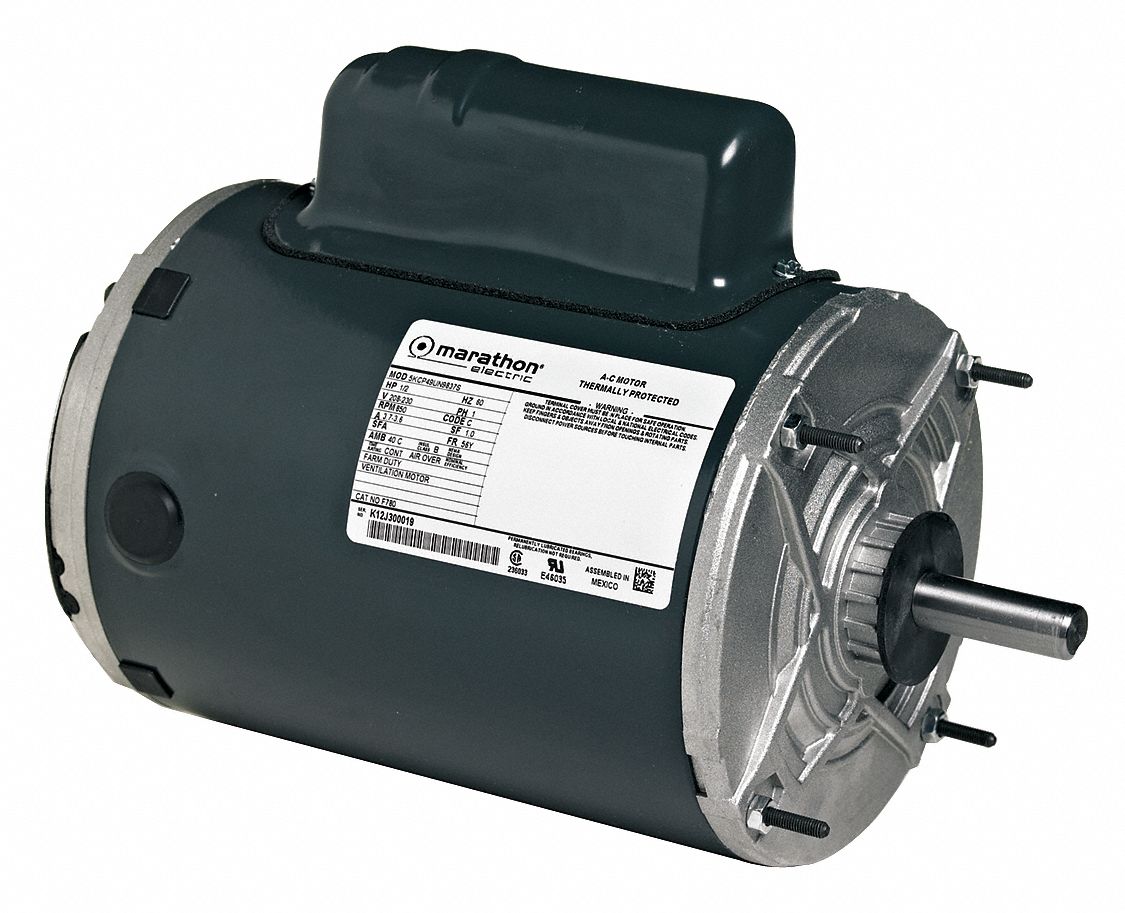

Farm Duty Mtr, Splt Ph, TENV, 1/4hp, 1140rpm

Enlarge Image

Item		Farm Duty Motor
Motor Type		Split-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1/4
Nameplate RPM		1140
NEMA/IEC Frame		56
Frame		56
Rotation		CW/CCW
Voltage		115
Full Load Amps		5.6
Phase		1
Hz		60
Mounting		Cradle
Bearings		Ball
Frame Material		Rolled steel
Thermal Protection		Auto
Service Factor		1.0
Max. Ambient Temperature		40 Degrees C
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Shaft Type		Smooth w/0.188 x 0.188" Key
Insulation Class		B
RPM Range		1000-1380
Duty		Continuous
Standards		UL, CSA
