Motors
>
Pump Motors
>
Carbonator Pump Motors

200-240V, 48Y

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Carbonator Pump Motor, Split-Phase, 1/3 HP, Nameplate RPM 1725, Voltage 100-120/200-240, 1 Phase, Frame 48Y, Open Dripproof, Full Load Amps 5.5-5.6, 2.7-2.8, 60/50 Hz, Mounting Base, Auto Thermal Protection, Insulation Class B, Service Factor 1.040 Degrees C Max. Ambient Temp., Rotation CW/CCW, Overall Length 9-1/2 In., 5/8 In. Shaft Dia., Shaft Length 1-1/2 In.

Grainger Item #	3VG37
Price (ea.)	$192.00
Brand	MARATHON ELECTRIC
Mfr. Model #	5KH32GNB815X
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	13.85
Availability	Typically in Stock
Catalog Page No.	53
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

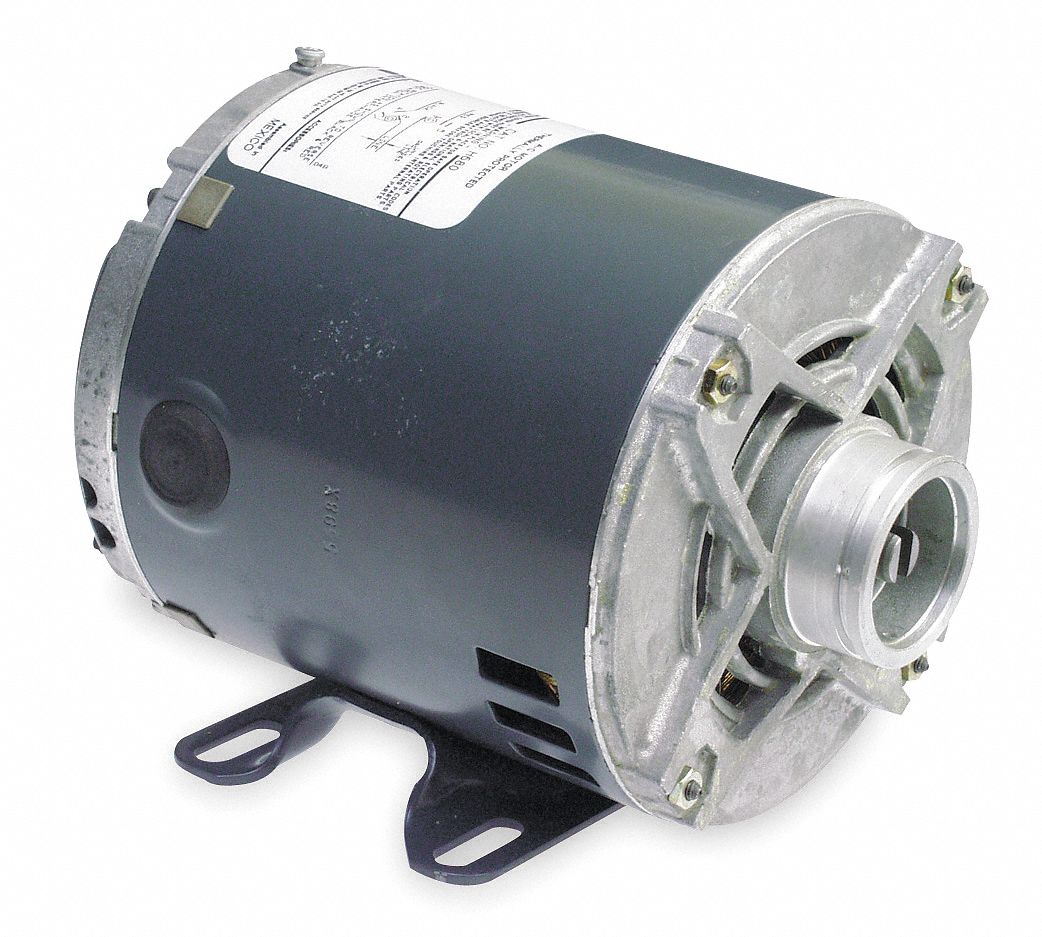

Pump Mtr, 1/3hp, 1725, 100-120/200-240V, 48Y

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Carbonator Pump Motor
Motor Type		Split-Phase
Enclosure		Open Dripproof
HP		1/3
Nameplate RPM		1725
NEMA/IEC Frame		48Y
Frame		48Y
Voltage		100-120/200-240
Hz		60/50
Phase		1
Full Load Amps		5.5-5.6, 2.7-2.8
Mounting		Base
Thermal Protection		Auto
Insulation Class		B
Service Factor		1.0
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Overall Length		9-1/2"
Shaft Dia.		5/8"
Shaft Length		1-1/2"
RPM Range		1400-1800

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

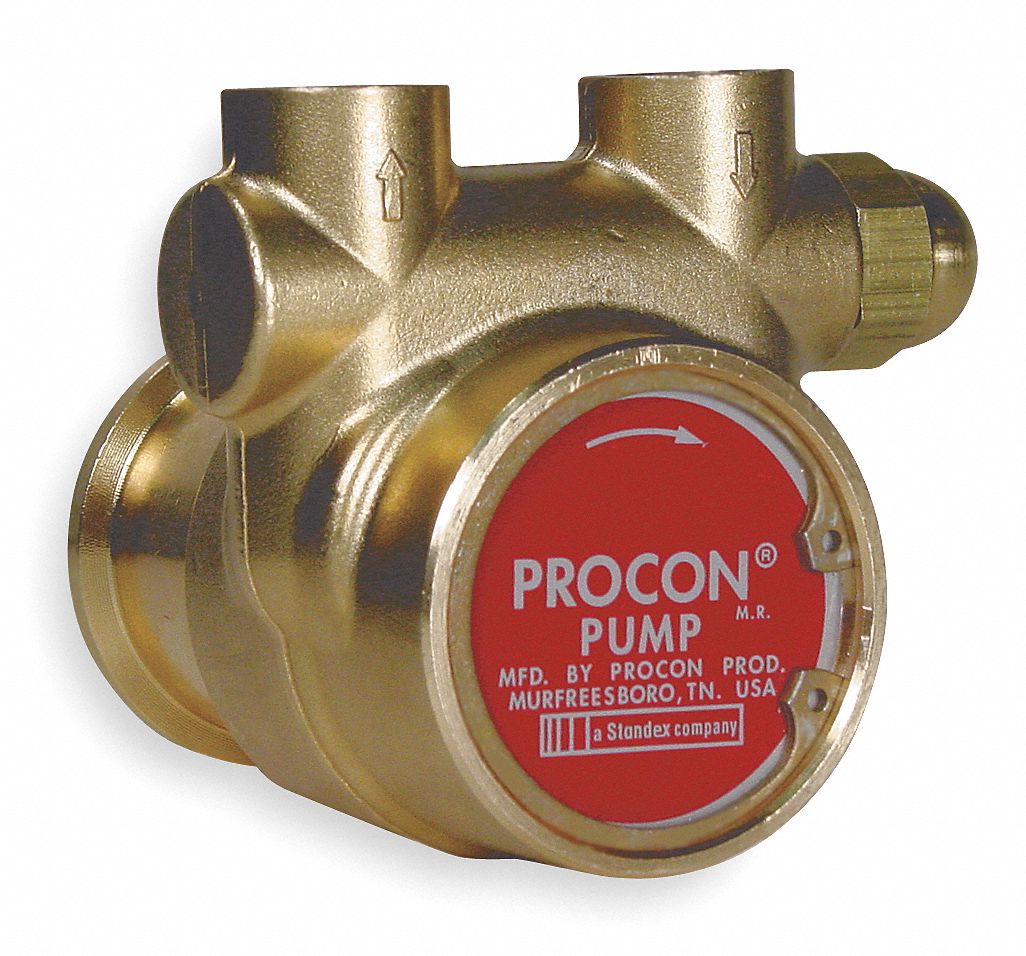

Pump, Rotary Vane, Brass
