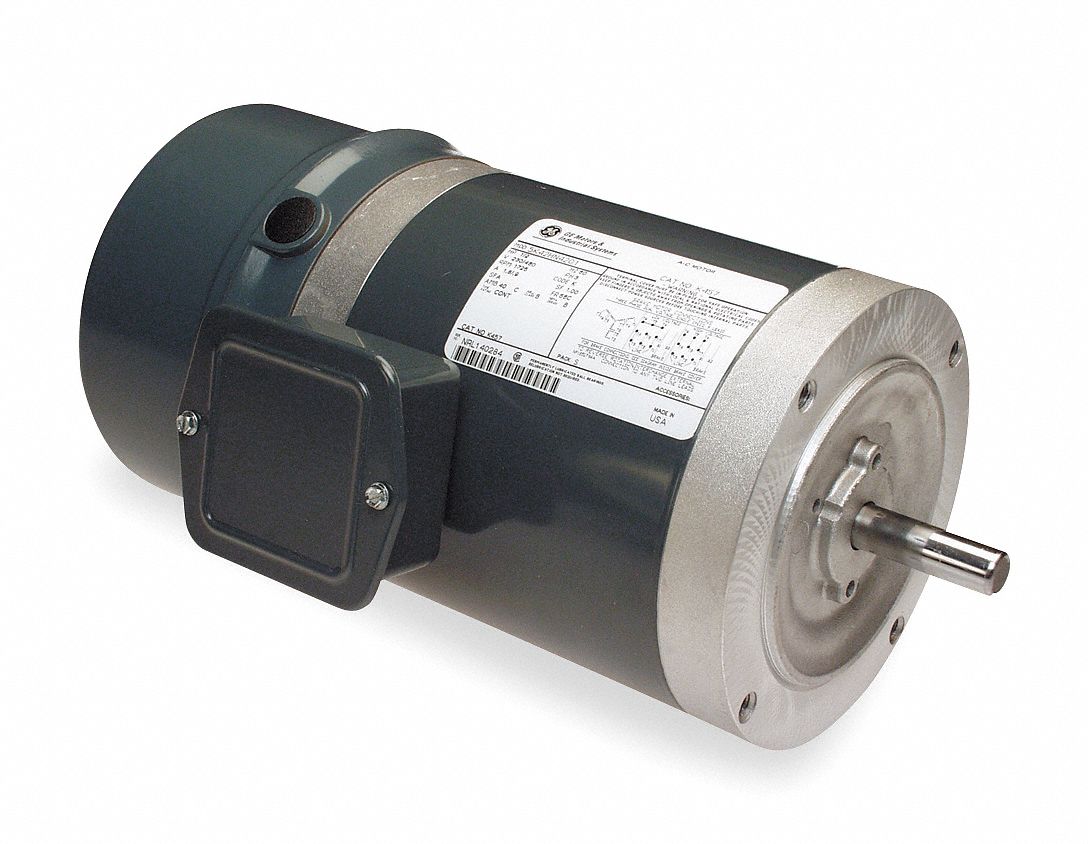

MARATHON ELECTRIC Brake Motor, TENV, 1-1/2 HP, 184TC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Brake Motor, 3-Phase, Totally Enclosed Nonventilated, 1-1/2 HP, Nameplate RPM 1165, NEMA/IEC Frame 184TC, Voltage 208-230/460, 60 Hz, 3 Phase, Full Load Amps 5.55-5.2/2.6, Rigid Mounting, Brake Rating 15 ft.-lb., Thermal Protection None, Insulation Class F3, Service Factor 1.15, Ball Bearings, Frame Material Aluminum, Ambient Temperature 40 Degrees C, CW/CCW Rotation, Shaft Dia. 1-1/8 In., Shaft Length 2-7/8 In., Length Less Shaft 16-13/16 In., RPM Range 1000-1380, Nominal Efficiency 81.5

Grainger Item #	16G415
Price (ea.)	$1,471.00
Brand	MARATHON ELECTRIC
Mfr. Model #	184TTTL7084
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	93.65
Availability	Typically in Stock
Catalog Page No.	42
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Brake Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Nonventilated
HP		1-1/2
Nameplate RPM		1165
NEMA/IEC Frame		184TC
Frame		184TC
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		5.55-5.2/2.6
Mounting		Rigid
Brake Rating		15 ft.-lb.
Thermal Protection		None
Insulation Class		F3
Service Factor		1.15
Bearings		Ball
Frame Material		Aluminum
Ambient Temperature		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-1/8"
Shaft Length		2-7/8"
Length Less Shaft		16-13/16"
RPM Range		1000-1380
Nominal Efficiency		81.5
