Motors
>
Definite Purpose AC Motors
>
Air Compressor Motors

MARATHON ELECTRIC

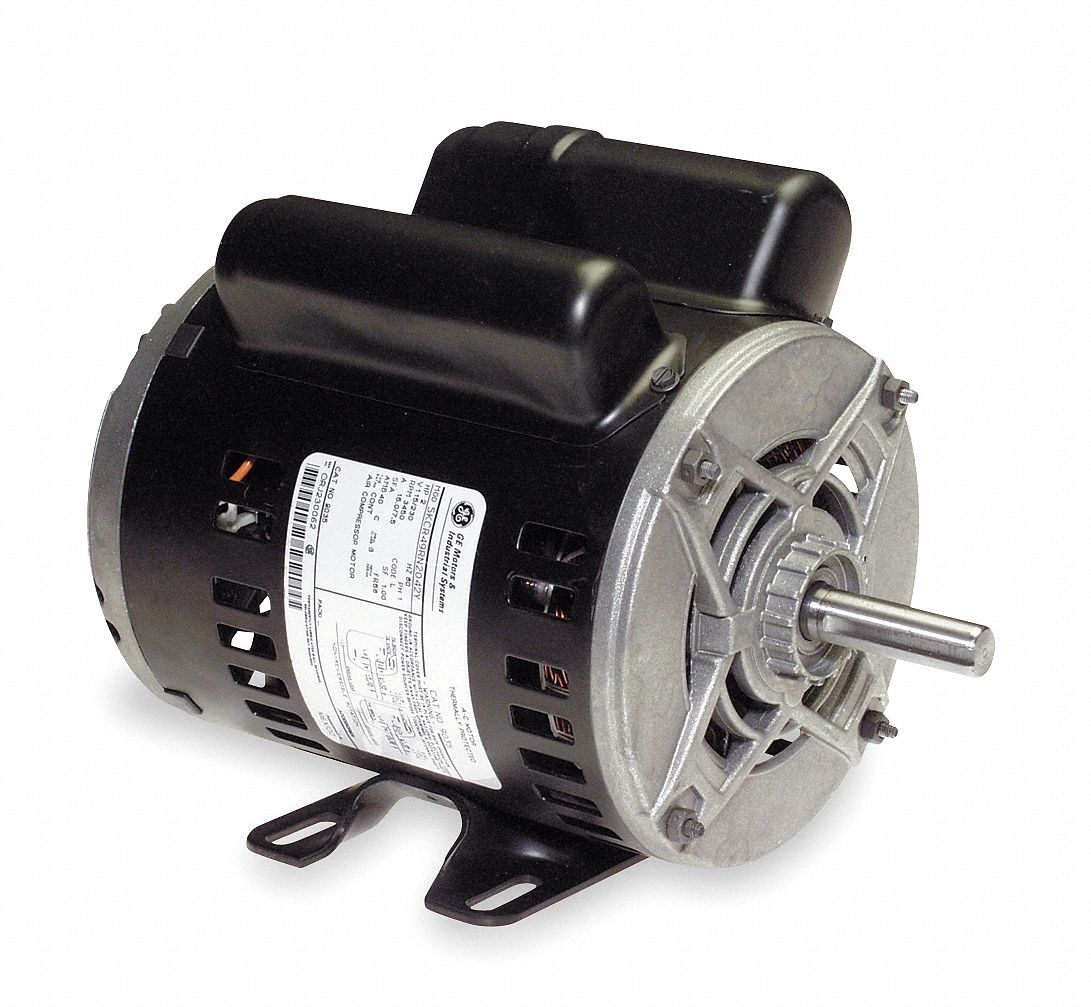

Air Compr Mtr, 2 HP, 3450 rpm, 115/230V, 56

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Motor, Capacitor-Start, Open Dripproof, 2 HP, Nameplate RPM 3450, 56 Frame, Voltage 115/230, 60 Hz, 1 Phase, Full Load Amps 17.0/8.5, Base Mounting, Thermal Protection Manual, Insulation Class B, 1.0 Service Factor, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CCWSE, Overall Length 12-11/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	3K787
Price (ea.)	$284.00
Brand	MARATHON ELECTRIC
Mfr. Model #	5KCR48TN2650Y
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	33.35
Availability	Typically in Stock
Catalog Page No.	41
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Air Compr Mtr, 2 HP, 3450 rpm, 115/230V, 56

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Compressor Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		2
Nameplate RPM		3450
NEMA/IEC Frame		56
Frame		56
Voltage		115/230
Hz		60
Phase		1
Full Load Amps		17.0/8.5
Mounting		Base
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CCWSE
Overall Length		12-11/16"
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Duty		Continuous
Standards		UL Recognized (E14133), CSA Certified (MC161850)
Capacitor Included		Yes
RPM Range		2350-3600
