Electrical
>
Switches
>
Liquid Level Switches

MADISON Low Lvl Swch, 1/8 In NPT, ClsOnRse, Kynar

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Ultra Low Level Liquid Switch, Vertical Mounting, Tank Connection Size 1/8 In. NPT, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Max. Pressure 25 psi, Switch Function Close On Rise, Overall Length 2.25 In., Float Material Kynar, Float Length 1.16 In., Float Dia. 1.88 In., Stem Material Kynar, Stem Length 1.63 In.Contact Form SPSTMax. Voltage 240Body Material KynarStandards UL, ULC, CE, Electrical Connections 22 ga. PTFE Coated 24 In. Leads, Float Specific Gravity 0.69

Grainger Item #	2ZY57
Price (ea.)	$50.70
Brand	MADISON
Mfr. Model #	M9000-ULL-NO
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.08
Availability	Typically in Stock
Catalog Page No.	4119
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

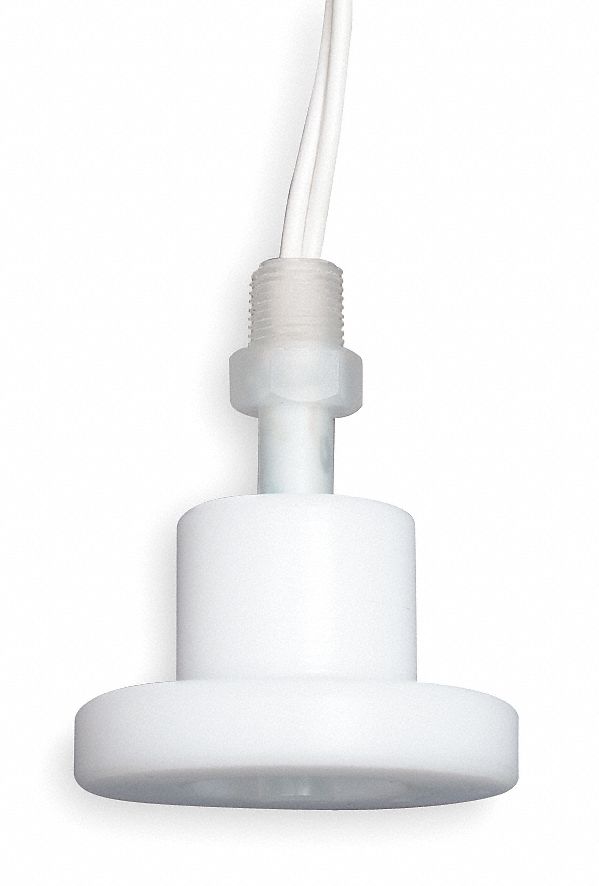

Low Lvl Swch, 1/8 In NPT, ClsOnRse, Kynar

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Ultra Low Level Liquid Switch
Mounting		Vertical
Tank Connection Size		1/8" NPT
VA Rating		30
Operating Temp. Range		221 Degrees F Max.
Max. Pressure		25 psi
Switch Function		Close On Rise
Overall Length		2.25"
Float Material		Kynar
Float Length		1.16"
Float Dia.		1.88"
Stem Material		Kynar
Stem Length		1.63"
Contact Form		SPST
Max. Voltage		240
Body Material		Kynar
Standards		UL, ULC, CE
Electrical Connections		22 ga. PTFE Coated 24" Leads
Float Specific Gravity		0.69
