MADISON Lqd Lvl Swch, 1/8 In NPT, Close On Rise, PP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Liquid Level Switch, Vertical Mounting, Tank Connection Size 1/8 In. NPT, VA Rating 15, Operating Temp. Range 221 Degrees F Max., Max. Pressure 50 psi, Switch Function Close On Rise, Overall Length 1.85 In., Float Material Polypropylene, Float Length 0.63 In., Float Dia. 0.58 In., Stem Material Polypropylene, Stem Length 1.25 In.Height 1.68 In., Width 0.58 In., Contact Form SPSTMax. Voltage 240Body Material PolypropyleneStandards UL, CSA, CE

Grainger Item #	5DYC3
Price (ea.)	$34.40
Brand	MADISON
Mfr. Model #	M3326-NPT-NO
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.03
Availability	Typically in Stock
Catalog Page No.	4119
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

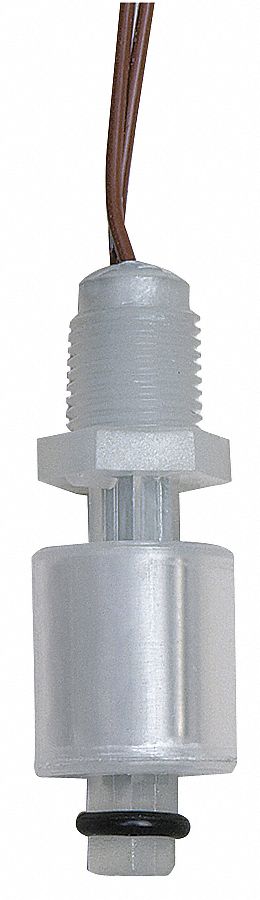

Lqd Lvl Swch, 1/8 In NPT, Close On Rise, PP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Liquid Level Switch
Mounting		Vertical
Tank Connection Size		1/8" NPT
VA Rating		15
Operating Temp. Range		221 Degrees F Max.
Max. Pressure		50 psi
Switch Function		Close On Rise
Overall Length		1.85"
Float Material		Polypropylene
Float Length		0.63"
Float Dia.		0.58"
Stem Material		Polypropylene
Stem Length		1.25"
Height		1.68"
Width		0.58"
Contact Form		SPST
Max. Voltage		240
Body Material		Polypropylene
Standards		UL, CSA, CE
Electrical Connections		22 ga. PTFE Coated 24" Leads
Float Specific Gravity		0.60
