Electrical
>
Switches
>
Liquid Level Switches

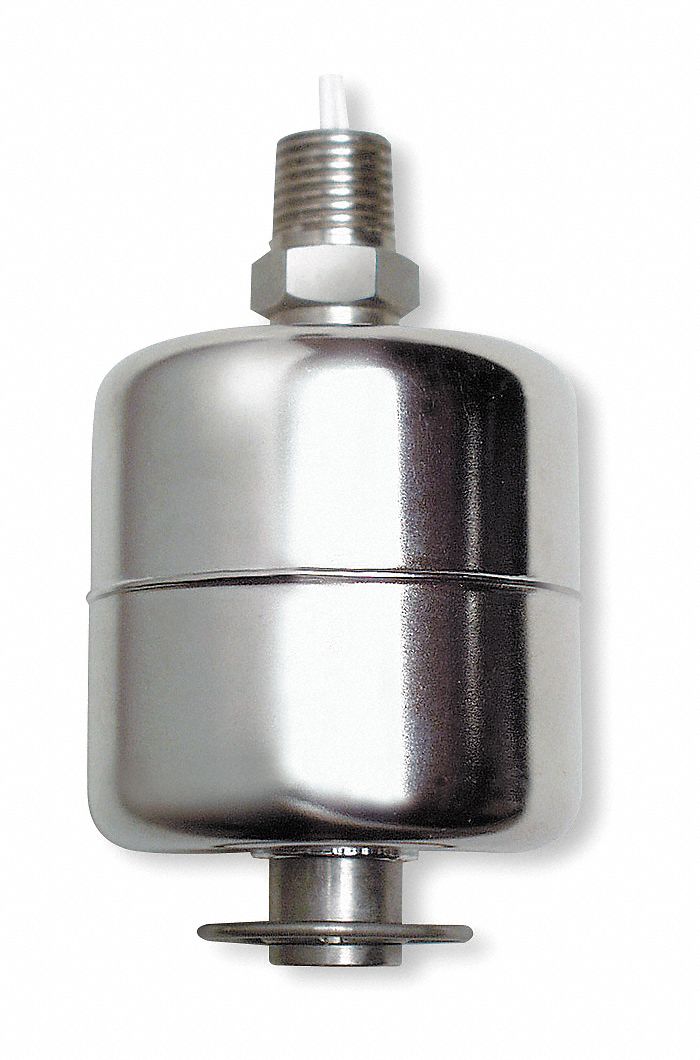

MADISON Lqd Lvl Swch, 1/4 In NPT, Slctabl, 316 SS

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Liquid Level Switch, Vertical Mounting, Tank Connection Size 1/4 In. NPT, VA Rating 60, Operating Temp. Range 392 Degrees F Max., Max. Pressure 200 psi, Switch Function Selectable, Overall Length 3.38 In., Float Material 316 SS, Float Length 2.00 In., Float Dia. 2.13 In., Stem Material 316 SS, Stem Length 2.63 In.Height 3.52 In., Width 2.13 In., Contact Form SPSTMax. Voltage 240Body Material 316 Stainless SteelStandards ABS, UL, CE, CSA, NSF, Explosion Proof

Grainger Item #	2A551
Price (ea.)	$57.00
Brand	MADISON
Mfr. Model #	M5600
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.25
Availability	Typically in Stock
Catalog Page No.	4120
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $12.95 each.
Price shown may not reflect your price. Sign in or register.

Lqd Lvl Swch, 1/4 In NPT, Slctabl, 316 SS

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Liquid Level Switch
Mounting		Vertical
Tank Connection Size		1/4" NPT
VA Rating		60
Operating Temp. Range		392 Degrees F Max.
Max. Pressure		200 psi
Switch Function		Selectable
Overall Length		3.38"
Float Material		316 SS
Float Length		2.00"
Float Dia.		2.13"
Stem Material		316 SS
Stem Length		2.63"
Height		3.52"
Width		2.13"
Contact Form		SPST
Max. Voltage		240
Body Material		316 Stainless Steel
Standards		ABS, UL, CE, CSA, NSF, Explosion Proof
Electrical Connections		22 ga. PTFE Coated 24" Leads
Float Specific Gravity		0.55

Other Popular Terms for this Product

• Level Switches (264)

• Liquid Level Switches (264)

• Liquid Level Control Switches (251)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	4YM31	Lqd Lvl Swch, 1/8 In NPT, Slctabl, 316 SS >More Details... Country of Origin: USA	MADISON M5000	Typically in Stock	$55.00
