MADISON Liquid Level Switch, Open On Rise, Buna N

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Liquid Level Switch, Vertical MountingVA Rating 30, Operating Temp. Range 221 Degrees F Max., Max. Pressure 50 psi, Switch Function Open On Rise, Overall Length 4.06 In., Float Material Buna N, Float Length 1.00 In., Float Dia. 1.00 In., Stem Material Brass, Stem Length 4.06 In.Height 4.06 In., Width 1.44 In., Contact Form SPST, Max. Current 0.28A, Max. Voltage 240Body Material Brass/PBTStandards CE, Electrical Connections 20 ft. 22 AWG, HALAR Jacketed 2-conductor Cable With Watertight Connector

Grainger Item #	11K183
Price (ea.)	$106.95
Brand	MADISON
Mfr. Model #	M3782
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.5
Availability	Typically in Stock
Catalog Page No.	4119
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

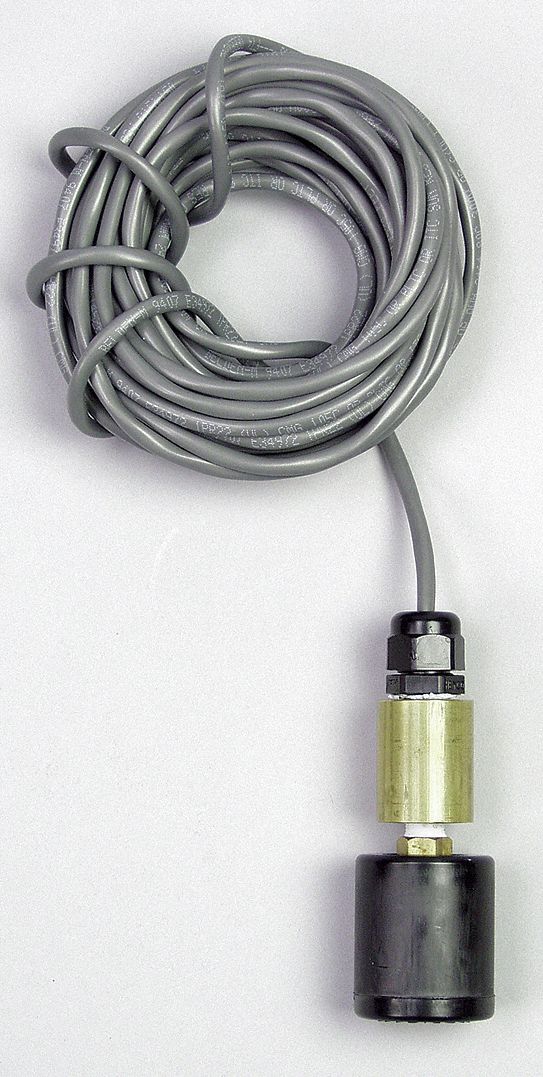

Liquid Level Switch, Open On Rise, Buna N

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Liquid Level Switch
Mounting		Vertical
VA Rating		30
Operating Temp. Range		221 Degrees F Max.
Max. Pressure		50 psi
Switch Function		Open On Rise
Overall Length		4.06"
Float Material		Buna N
Float Length		1.00"
Float Dia.		1.00"
Stem Material		Brass
Stem Length		4.06"
Height		4.06"
Width		1.44"
Contact Form		SPST
Max. Current		0.28A
Max. Voltage		240
Body Material		Brass/PBT
Standards		CE
Electrical Connections		20 ft. 22 AWG, HALAR Jacketed 2-conductor Cable With Watertight Connector
Float Specific Gravity		0.45
Features		Suspendible, Submersible
Includes		20 ft., Two Conductor, Cable
