Lighting
>
Ballasts
>
Dimming Ballasts

277V, 48 In Lamp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Dimming Ballast, Ballast Type Electronic Dimming, Ballast Family ECO-10(r) 10 Percent, Number of Lamps 3, Lamp Type T8 and U Bent, Lamp Length 48 In., Voltage 120/240/277, Height 1 In., Width 2-3/8 In., Length 9-1/2 In., Input Watts 95.4/94.9/93.5, Number of F32T8 Lamps 3, Number of F32T8U Lamps 3, Amps AC 0.83/0.40/0.37, Start Type Programmed Rapid, Min. Starting Temp. 50 Degrees F, Dimming Range 100 Percent to 10 Percent RLO, Ballast Factor 1, Power Factor Greater Than 0.95

Grainger Item #	5NUK5
Price (ea.)	$69.50
Brand	LUTRON
Mfr. Model #	EC3T832GU310
UNSPSC #	39111801
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.82
Availability	Clearance - limited quantity available
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
|
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

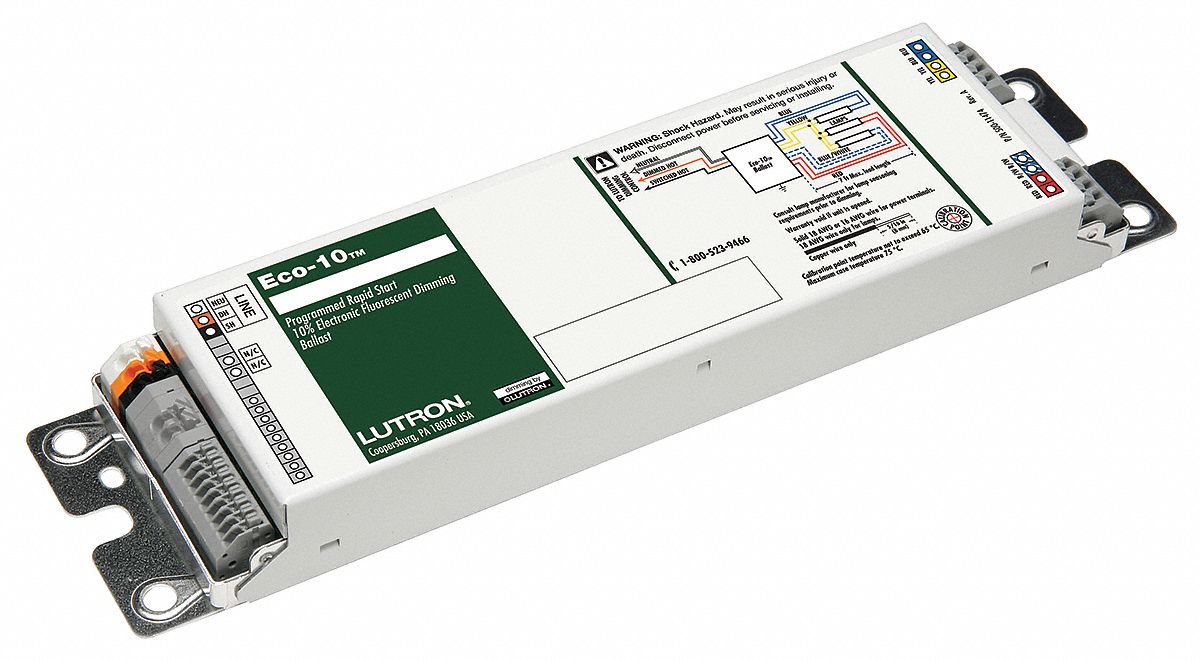

Dimming Ballast, 120/240/277V, 48 In Lamp

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Dimming Ballast
Ballast Type		Electronic Dimming
Ballast Family		ECO-10(R) 10%
Number of Lamps		3
Lamp Type		T8 and U Bent
Lamp Length		48"
Voltage		120/240/277
Height		1"
Width		2-3/8"
Length		9-1/2"
Input Watts		95.4/94.9/93.5
Number of F32T8 Lamps		3
Number of F32T8U Lamps		3
Amps AC		0.83/0.40/0.37
Start Type		Programmed Rapid
Min. Starting Temp.		50 Degrees F
Dimming Range		100% to 10% RLO
Ballast Factor		1
Power Factor		Greater Than 0.95
Total Harmonic Distortion		Less Than 20%
Sound Rating		Inaudible In 27dBa Ambient Environment
Thermal Protection		Class P
Standards		California Energy Commission Listed, UL935, CSA C22.2 No.74, Class P Thermally Protected, ANSI C82.11, FCC Part 18 EMI/RFI Emissions, ANSI C62.41, ANSI/ESD S20.20, ISO 9001.2000, ANSI/ECD S20.20
Green Certification or Other Recognition		RoHS Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
