Dimming Ballast, Ballast Type Electronic Dimming, Ballast Family Hi Lume(r) 3D, Number of Lamps 3, Lamp Type T8 and U BentVoltage 120/240/277, Height 1 In., Width 2-3/8 In., Length 9-1/2 In., Input Watts 96/99.6/102.5Number of F32T8 Lamps 3, Number of F32T8U Lamps 3Amps AC 0.37/0.40/0.83, Start Type Programmed Rapid, Min. Starting Temp. 50 Degrees F, Dimming Range 100 Percent to 0.7 Percent Level Output, Ballast Factor 1, Power Factor Greater Than 0.95

Grainger Item #	4LFW3
Price (ea.)	$273.75
Brand	LUTRON
Mfr. Model #	H3DT832GU310
UNSPSC #	39111801
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.85
Availability	Typically in Stock
Catalog Page No.	673
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

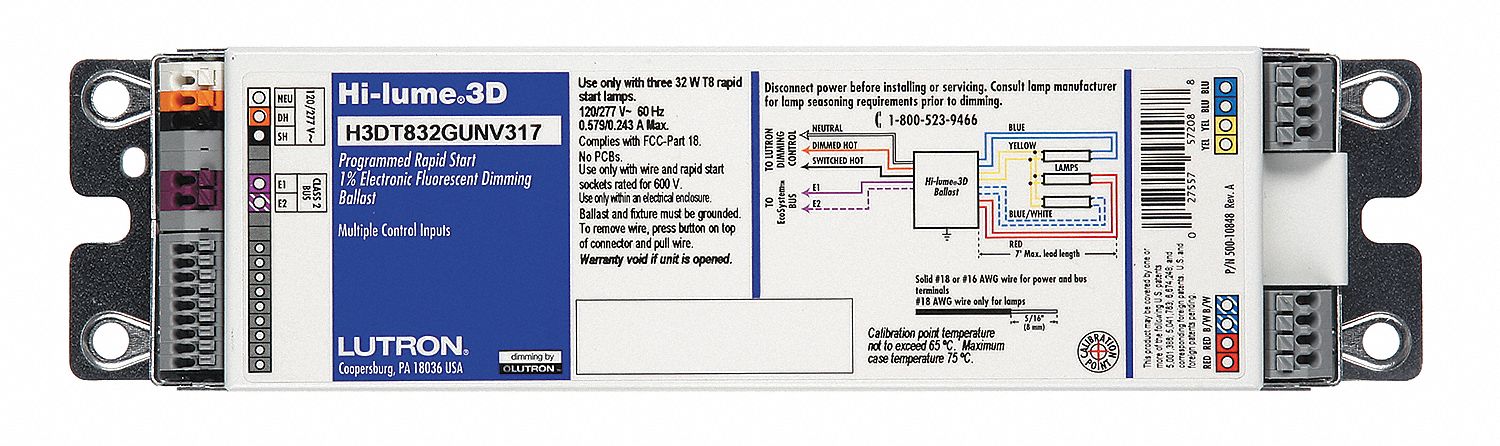

Dimming Ballast, Elctrnc, 120/240/277VLamp

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Dimming Ballast
Ballast Type		Electronic Dimming
Ballast Family		Hi Lume(R) 3D
Number of Lamps		3
Lamp Type		T8 and U Bent
Voltage		120/240/277
Height		1"
Width		2-3/8"
Length		9-1/2"
Input Watts		96/99.6/102.5
Number of F32T8 Lamps		3
Number of F32T8U Lamps		3
Amps AC		0.37/0.40/0.83
Start Type		Programmed Rapid
Min. Starting Temp.		50 Degrees F
Dimming Range		100% to 0.7% Level Output
Ballast Factor		1
Power Factor		Greater Than 0.95
Total Harmonic Distortion		Less Than 10%
Sound Rating		Inaudible In 27dBa Ambient Environment
Thermal Protection		Class P
Standards		California Energy Commission Listed, UL935, CSA C22.2 No.74, Class P Thermally Protected, ANSI C82.11, FCC Part 18 EMI/RFI Emissions, ANSI C62.41, ANSI/ESD S20.20, ISO 9001.2000, NEMA LL9-2009
Green Certification or Other Recognition		RoHS Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
