LUTRON Dimming Ballast, Elctrnc, 120-277 V Lamp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Dimming Ballast, Ballast Type Electronic Dimming, Ballast Family Hi Lume(r) 3D, Number of Lamps 2, Lamp Type T8 and U BentVoltage 120-277, Height 1 In., Width 1-5/32 In., Length 18 In., Input Watts 41.6/42/43.2, Number of F17T8 Lamps 2Amps AC 0.15/0.18/0.35, Start Type Programmed Rapid, Min. Starting Temp. 50 Degrees F, Dimming Range 100 Percent to 0.7 Percent Level Output, Ballast Factor 1, Power Factor Greater Than 0.95, Total Harmonic Distortion Less Than 10 Percent

Grainger Item #	4LFV7
Price (ea.)	$284.75
Brand	LUTRON
Mfr. Model #	H3DT817CU210
UNSPSC #	39111801
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.15
Availability	Typically in Stock
Catalog Page No.	673
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

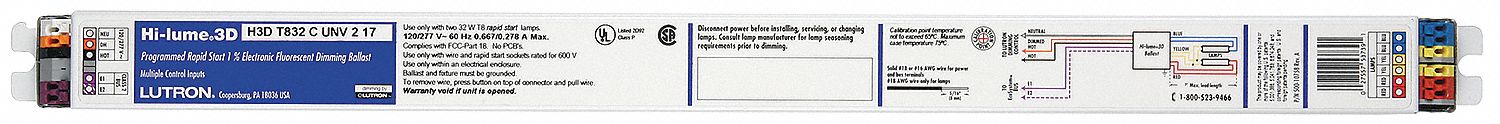

Dimming Ballast, Elctrnc, 120-277 V Lamp

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Dimming Ballast
Ballast Type		Electronic Dimming
Ballast Family		Hi Lume(R) 3D
Number of Lamps		2
Lamp Type		T8 and U Bent
Voltage		120-277
Height		1"
Width		1-5/32"
Length		18"
Input Watts		41.6/42/43.2
Number of F17T8 Lamps		2
Amps AC		0.15/0.18/0.35
Start Type		Programmed Rapid
Min. Starting Temp.		50 Degrees F
Dimming Range		100% to 0.7% Level Output
Ballast Factor		1
Power Factor		Greater Than 0.95
Total Harmonic Distortion		Less Than 10%
Sound Rating		Inaudible In 27dBa Ambient Environment
Thermal Protection		Class P
Standards		California Energy Commission Listed, UL935, CSA C22.2 No.74, Class P Thermally Protected, ANSI C82.11, FCC Part 18 EMI/RFI Emissions, ANSI C62.41, ANSI/ESD S20.20, ISO 9001.2000
Green Certification or Other Recognition		RoHS Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
