Elastomeric Chain/Belt Tensioner, ANSI Chain Size 40, 41, 50 and 60, Flat Belt Width 2, 3 and 4 Inches, V Belt Size Range D, E, Mounting Hole Size M12 x 40 Metric, Idler Bolt 1/2-13 x 3 1/2 Inches, Normal 10 Degrees Force 33.7 Pounds, Normal 20 Degrees Force 85.4 Pounds, Normal 30 Degrees Force 179.8 Pounds, Hard 10 Degrees Force 43.8 Pounds, Hard 20 Degrees Force 111.1 Pounds, Hard 30 Degrees Force 233.8 Pounds, 10 Degrees Normal Dimension S 0.87 Inch, 20 Degrees Normal Dimension S 1.73 Inches
  • Grainger Item #1L835
    Price (ea.)$120.25
    BrandLOVEJOY/ROSTA
    Mfr. Model #SE27
    UNSPSC #26111533
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)4.4
    Availability Typically in Stock
    Catalog Page No.171
    Country of Origin
    (Country of Origin is subject to change.)
    USA
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemElastomeric Tensioner
ANSI Chain Size40, 41, 50, 60
Flat Belt Width (In.)2, 3, 4
V-Belt Size RangeD, E
Mounting Hole (In.)1/2
Mounting Hole (Metric)M12 x 40
Idler Bolt (In.)1/2-13 x 3-1/2
Temp. Range (F)-40 to 180
Normal 10 Deg. Force (Lb.)33.8
Hard 10 Degree Force (Lb.)43.8
10 Deg. Normal Dim. S (In.)0.87
Hard 20 Degree Force (Lb.)111.1
Normal 20 Deg. Force (Lb.)85.4
20 Degree Dim. S (In.)1.73
Hard 30 Degree Force (Lb.)233.8
Normal 30 Deg. Force (Lb.)179.8
30 Degree Dim. S (In.)2.56
Tensioning ArmDeflects Up to 30 Degrees Either Side of its Neutral Position Allowing a Pretension Force that Self-adjusts an Idler to Everyday Elongation of Chain or Belt while Dampening Vibration in the Drive
InsertFour Rubber, Inside Base Isolate Tensioning Arm from Contact with Base and Provide Continuous Resistance
FunctionEliminates Slap and Vibration while Minimizing Drive, Bearing and Shaft Wear, Keep Chain and Belts Taut Preventing Uneven Drive Surges and Power Losses
ApplicationFor Chain and Belt Tensioning, Pressing and Cushioning
IncludesMounting Bolt and Idler Bolt, 5/8" Bushing
Dimension D (In.)3.07
Dimension E (In.)4.25
Dimension G (In.)0.32
Dimension L (In.)6.10
Dimension N (In.)2.05
Dimension J1(In.)5.12
Dimension J2 (In.)3.94
Dimension K (In.)1.97
Dimension T (In.)0.53

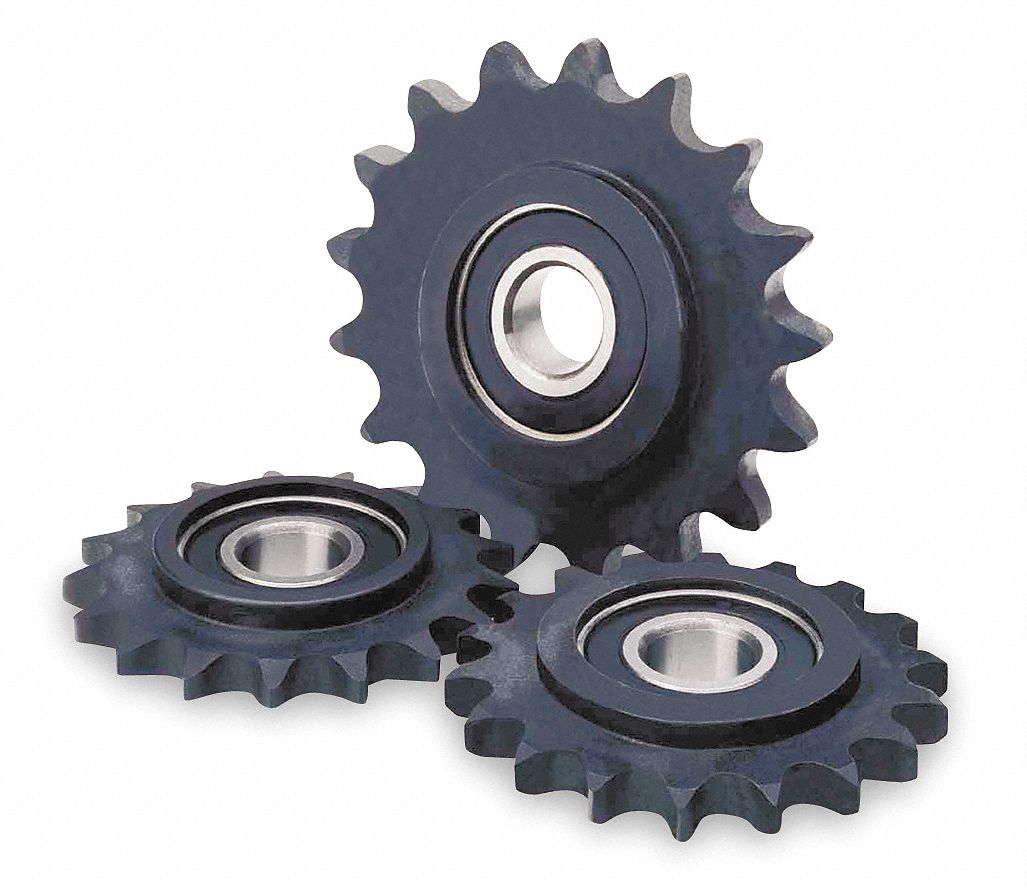

Optional Accessories
