Power Transmission
>
Couplings, Collars, and Adapters
>
Motion Control Couplings

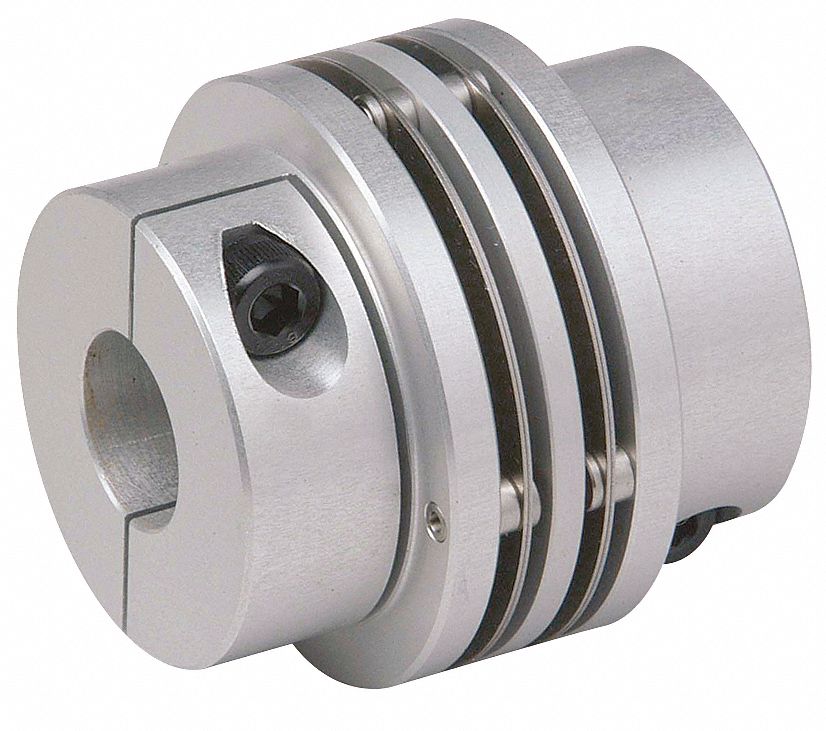

LOVEJOY Coupling, Mini Disc, Bore 1x1 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motion Control Coupling, Mini Disc Spacer Clamp Style, Bore Dia 1 X 1 In, Min Bore 0.394 In, Max Bore 0.984 In, Outside Dia 2.480 In, Hub Dia 1.772 In, Overall Length 2.283 In, Length through Bore 0.878 In, Clamp Screw, Torque Nominal 89 In-Lbs, 2400 Max RPM, Max Temp 300 F, Aluminum Material, Aluminum Finish, Stainless Steel Disc Type

Grainger Item #	1CYN5
Price (ea.)	$192.25
Brand	LOVEJOY
Mfr. Model #	MDS63C 1x1
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.52
Availability	Item ships within 7 business days from supplier
Catalog Page No.	186
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Motion Control Coupling
Style		Mini Disc Spacer Clamp
Bore Dia.		1 x 1"
Min. Bore (In.)		0.394
Min. Bore (mm)		10.00
Max. Bore (In.)		0.984
Max. Bore (mm)		25.00
Outside Dia. (In.)		2.480
Outside Dia. (mm)		63
Hub Dia.		1.772"
Overall Length (In.)		2.283
Overall Length (mm)		58
Length through Bore (In.)		0.878
Length through Bore (mm)		22.30
Screw Type		Clamp Screw
Screw Size (mm)		M6
Torque (In.-Lbs.)		89
Max. RPM		2400
Max. Angular Misalignment		2 Degrees
Max. Parallel Misalignment (In.)		0.012
Max. Axial Misalignment (In.)		+/-0.031
Max. Temp. Range (F)		300
Material		Aluminum
Finish		Aluminum
Disc Type		Stainless Steel
Size		MDS63C
