Power Transmission
>
Couplings, Collars, and Adapters
>
Motion Control Couplings

8 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

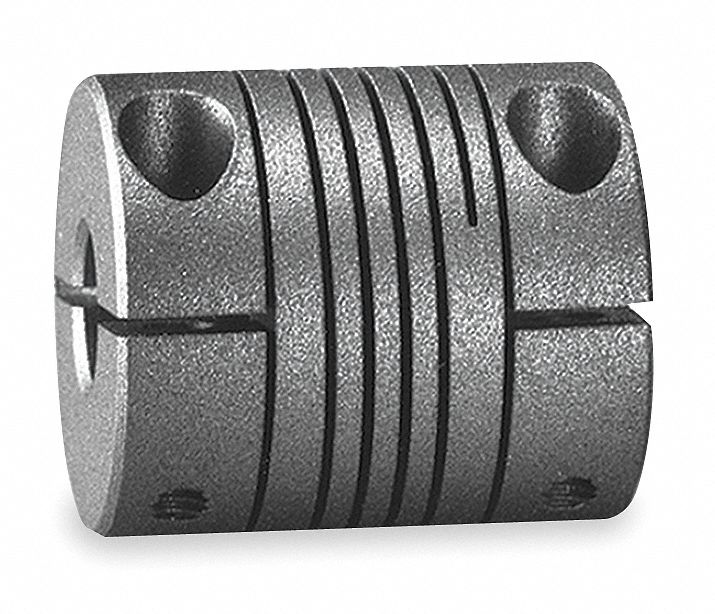

Motion Control Coupling, Single Beam Clamp Style, Bore Dia 3/8 x 3/8 In, Min Bore 0.236 In, Max Bore 0.394 In, Outside Dia 0.984 In, Hub Dia 0.984 In, Overall Length 1.260 In, Length through Bore 0.315 In, Clamp Screw, Screw Size 6-32 In, Torque Nominal 11 In-Lbs, 10, 000 Max RPM, Max Temp 200 F, Anodized Aluminum Material, Anodized Aluminum Finish

Grainger Item #	1CYH3
Price (ea.)	$56.40
Brand	LOVEJOY
Mfr. Model #	EC100 3/8x3/8
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.08
Availability	Typically in Stock
Catalog Page No.	186
Country of Origin (Country of Origin is subject to change.)	Hungary

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motion Control Coupling
Style		Single Beam Clamp
Bore Dia.		3/8 x 3/8"
Min. Bore (In.)		0.236
Min. Bore (mm)		6.00
Max. Bore (In.)		0.394
Max. Bore (mm)		10.00
Outside Dia. (In.)		0.984
Outside Dia. (mm)		25
Hub Dia.		0.984"
Overall Length (In.)		1.260
Overall Length (mm)		32
Length through Bore (In.)		0.315
Length through Bore (mm)		8.00
Screw Type		Clamp Screw
Screw Size (In.)		6-32
Screw Size (mm)		M3
Torque (In.-Lbs.)		11
Max. RPM		10,000
Max. Angular Misalignment		5 Degrees
Max. Parallel Misalignment (In.)		0.005
Max. Axial Misalignment (In.)		+/-.010
Max. Temp. Range (F)		200
Material		Anodized Aluminum
Finish		Anodized Aluminum
Size		EC100
