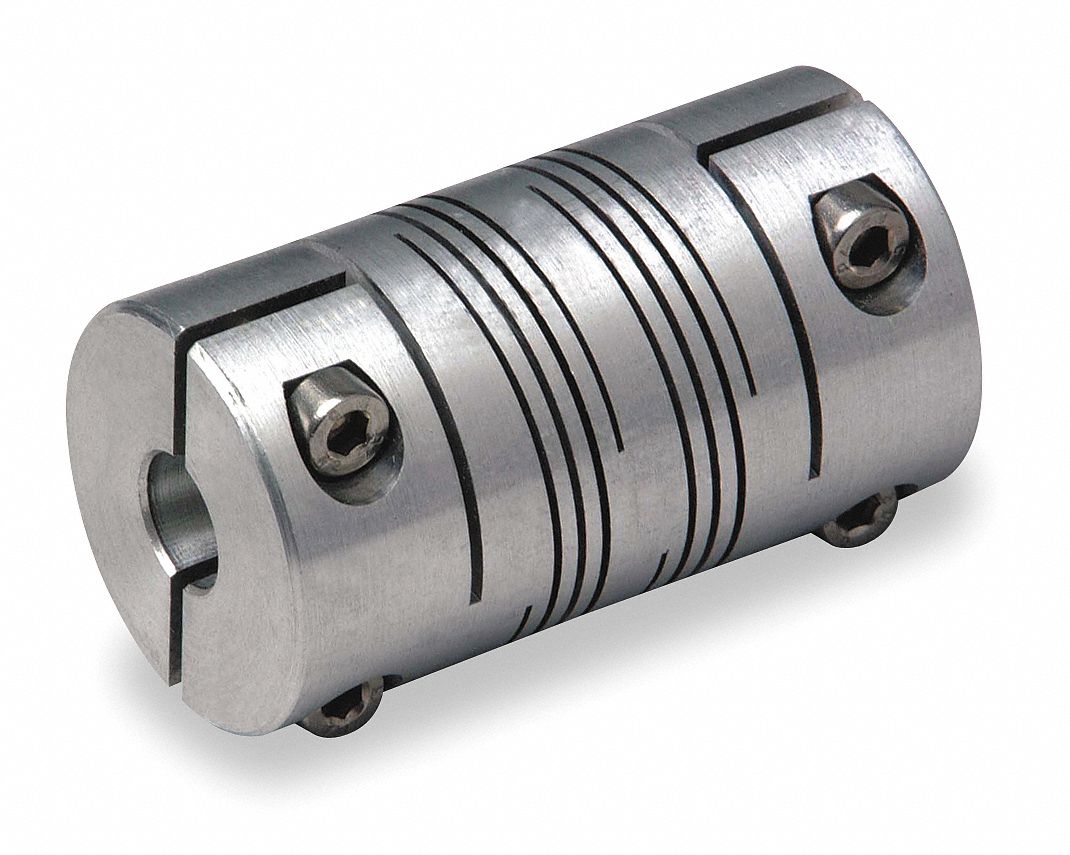

Motion Control Coupling, Double Beam Clamp Style, Bore Dia 3/8 x 5/8 In, Min Bore 0.394 In, Max Bore 0.748 In, Outside Dia 1.252 In, Hub Dia 1.252 In, Overall Length 2.252 In, Length through Bore 0.630 In, Clamp Screw, Torque Nominal 38 In-Lbs, 10, 000 Max RPM, Max Temp 200 F, Aluminum Material, Anodized Aluminum Finish

Grainger Item #	1CYE1
Price (ea.)	$66.00
Brand	LOVEJOY
Mfr. Model #	ADB6 3/8x5/8
UNSPSC #	31163002
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.21
Availability	Typically in Stock
Catalog Page No.	186
Country of Origin (Country of Origin is subject to change.)	Hungary

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motion Control Coupling
Style		Double Beam Clamp
Bore Dia.		3/8 x 5/8"
Min. Bore (In.)		0.394
Min. Bore (mm)		10.00
Max. Bore (In.)		0.748
Max. Bore (mm)		19.00
Outside Dia. (In.)		1.252
Outside Dia. (mm)		31.8
Hub Dia.		1.252"
Overall Length (In.)		2.252
Overall Length (mm)		57.2
Length through Bore (In.)		0.630
Length through Bore (mm)		16.00
Screw Type		Clamp Screw
Screw Size (mm)		M4
Torque (In.-Lbs.)		38
Max. RPM		10,000
Max. Angular Misalignment		7 Degrees
Max. Parallel Misalignment (In.)		0.020
Max. Axial Misalignment (In.)		+/-.010
Max. Temp. Range (F)		200
Material		Aluminum
Finish		Anodized Aluminum
Size		ADB6
