Power Transmission
>
Couplings, Collars, and Adapters
>
Flex Coupling Inserts

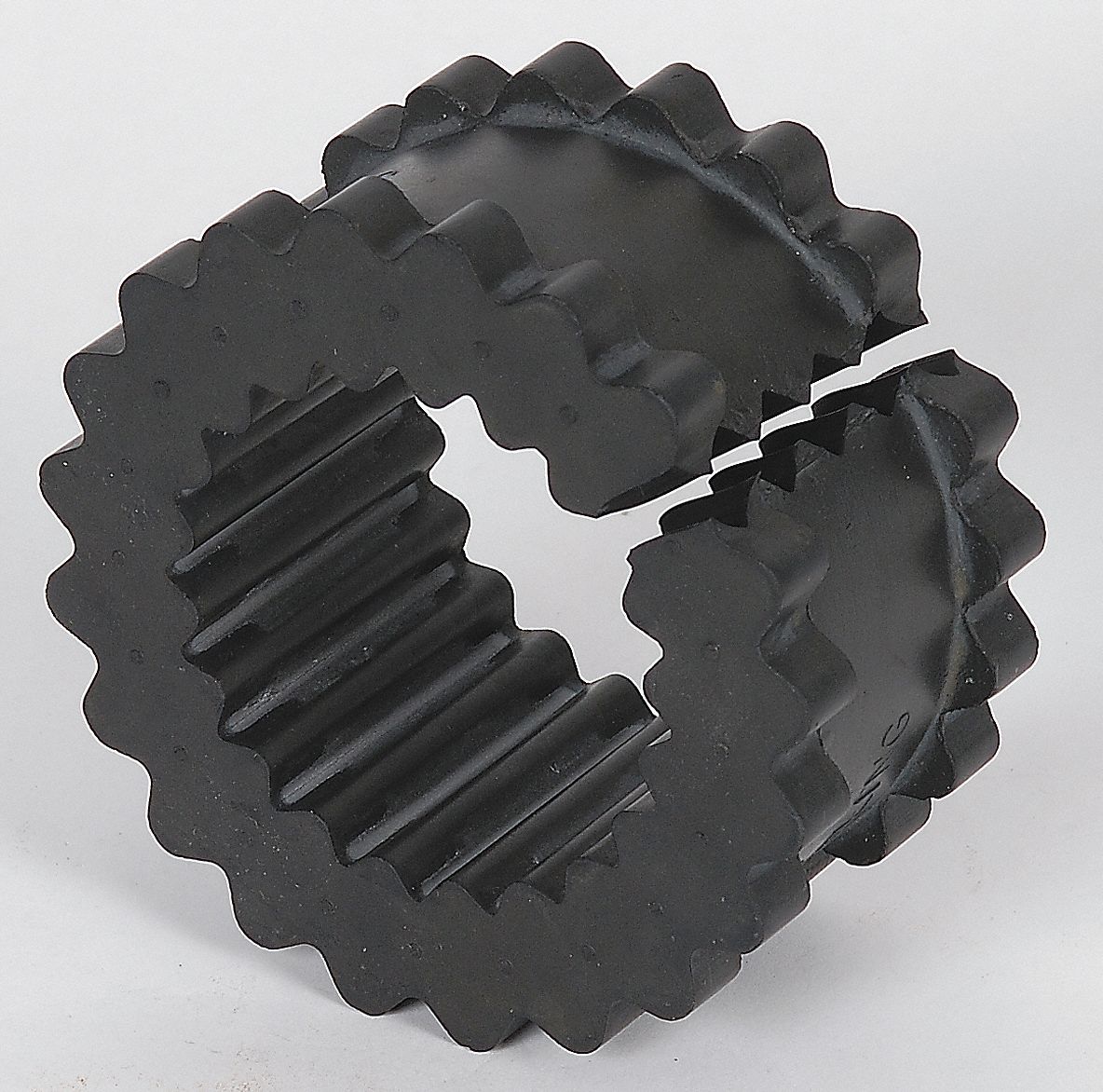

LOVEJOY S Flex Coupling Insert 3JES

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Coupling Insert, JES Insert Type, 3J Body Style, Rated Torque 60 In.-Lb., Max. RPM 9200, EPDM Rubber Insert Material

Grainger Item #	4WTW2
Price (ea.)	$7.13
Brand	LOVEJOY
Mfr. Model #	68514436692
UNSPSC #	31163003
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.05
Availability	Typically in Stock
Catalog Page No.	183
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Coupling Insert
Insert Type		JES
Body Style		3J
Rated Torque (In.-Lb.)		60
Max. RPM		9200
HP Rating @ 50 RPM		0.05
HP Rating @ 100 RPM		0.10
HP Rating @ 300 RPM		0.29
HP Rating @ 690 RPM		0.66
HP Rating @ 870 RPM		0.83
HP Rating @ 1150 RPM		1.09
HP Rating @ 1200 RPM		1.14
HP Rating @ 1750 RPM		1.67
HP Rating @ 1800 RPM		1.71
HP Rating @ 3450 RPM		3.28
HP Rating @ 3600 RPM		3.43
Operating Temp.		-30 - 375 F
Outside Dia. (In.)		1-7/8
Length (In.)		1
Width (In.)		1
Height (In.)		1-7/8
Hub Dia. (In.)		1-1/2
Insert Material		EPDM Rubber
Application		Difficult Installation/Removal
