Pumps
>
Sump, Effluent and Sewage Pumps
>
Sump/Sewage Pump Systems

10 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Submersible Sewage Pump Assembly, Automatic, 4/10 HP, Switch Type Tether, Base Material Cast Iron, Housing Cast Iron, Top Material Cast Iron, Impeller Material TPE, Voltage 116, 1 Phase, Amps 8.5, Height 46 In., Dia. 30 In., Cord Length 20 Ft., Discharge NPT 2 In., Max. Dia. Solids 2 In., Max. Head 20 Ft., Max. Temp. 120 Degrees F, Includes Basin, Pump, Switch, Check Valve

Grainger Item #	20X860
Price (ea.)	$787.00
Brand	LITTLE GIANT
Mfr. Model #	9S-SMPXC-LG (BC2424CS)
UNSPSC #	40151517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	63.0
Availability	Typically in Stock
Catalog Page No.	4046
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Submersible Sewage Pump Assembly
Type		Automatic
HP		4/10
Voltage		115
Phase		1
Amps		8.5
Inlet		4"
Outlet		2"
Vent		2"
GPM of Water @ 5 Ft. of Head		110
GPM of Water @ 10 Ft. of Head		70
GPM of Water @ 15 Ft. of Head		30
GPM of Water @ 20 Ft. of Head		0
Maximum Head		20 ft.
Max. Temp.		140 Degrees
Basin Height		30"
Basin Dia.		20"
Basin Capacity		40 gal.
Basin Material		PE
Cord Length		20 FT.
Cord Size		16/3 SJTW
Max. Dia. Solids		2"
GPM @ 11.5 Ft. Total Head		56
GPM @ 17 Ft. Total Head		12
NEMA Start Code		E
RPM		1750
Cable Entry		Grommet
Check Valve		2" Compression
Cover Material		Structural Foam
Application		Residential And Light Commercial Sewage
Features		2" Compression Check Valve, 360 Degrees Handle, Anti-Floatation Collar, 4" External Inlet Hub, Schedule 80 Discharge Pipe
Function		Tethered Float
IAPMO Approved		No
Includes		Basin, Pump, Switch, Check Valve
Warranty		2 Yr

Other Popular Terms for this Product

• Submersible Pumps (697)

• Dewatering Pumps (302)

• Sewage Ejector Pumps (162)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Pumps > Sump, Effluent and Sewage Pumps > Sump/Sewage Pump Systems

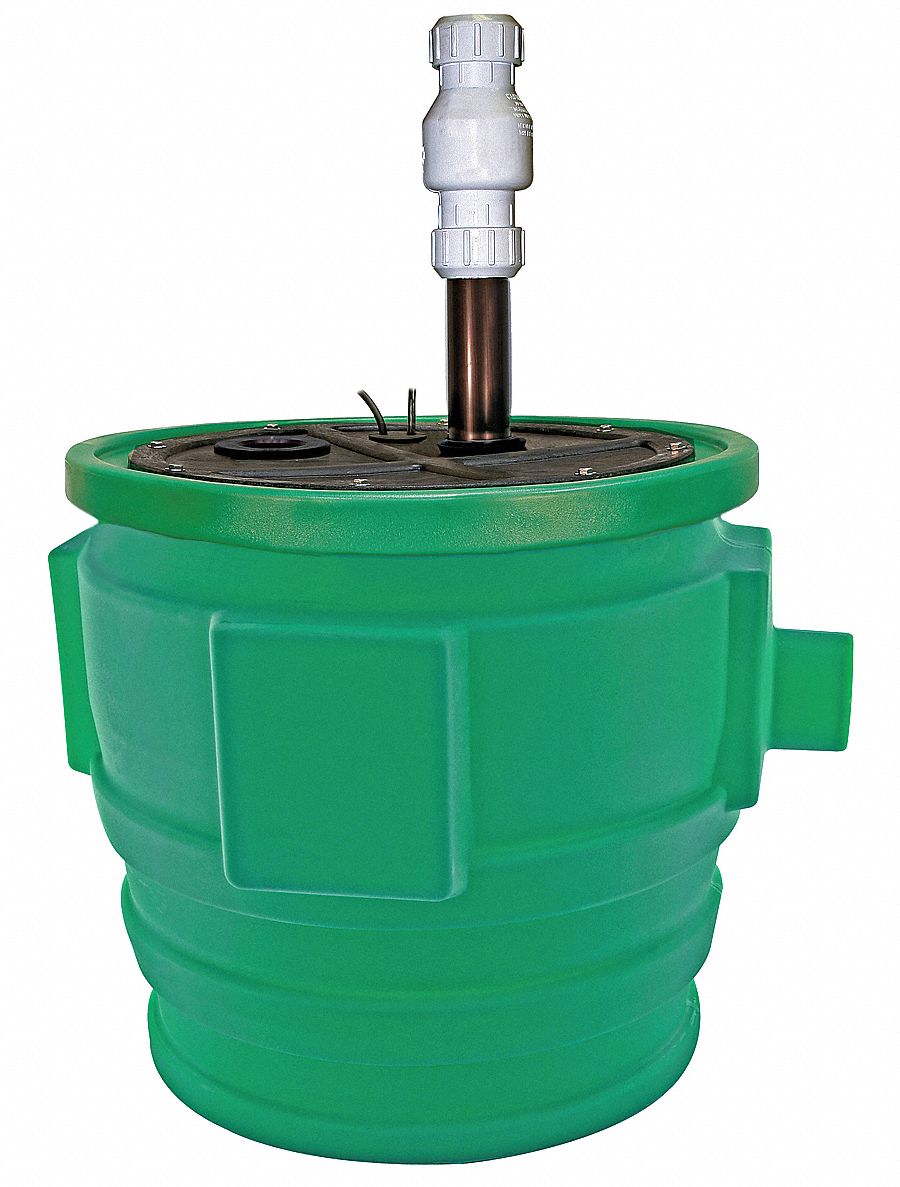

LITTLE GIANT Sewage Package, w/pump, 4/10 HP
