Pumps
>
Chemical Pumps
>
Chemical Transfer Magnetic Drive Pumps

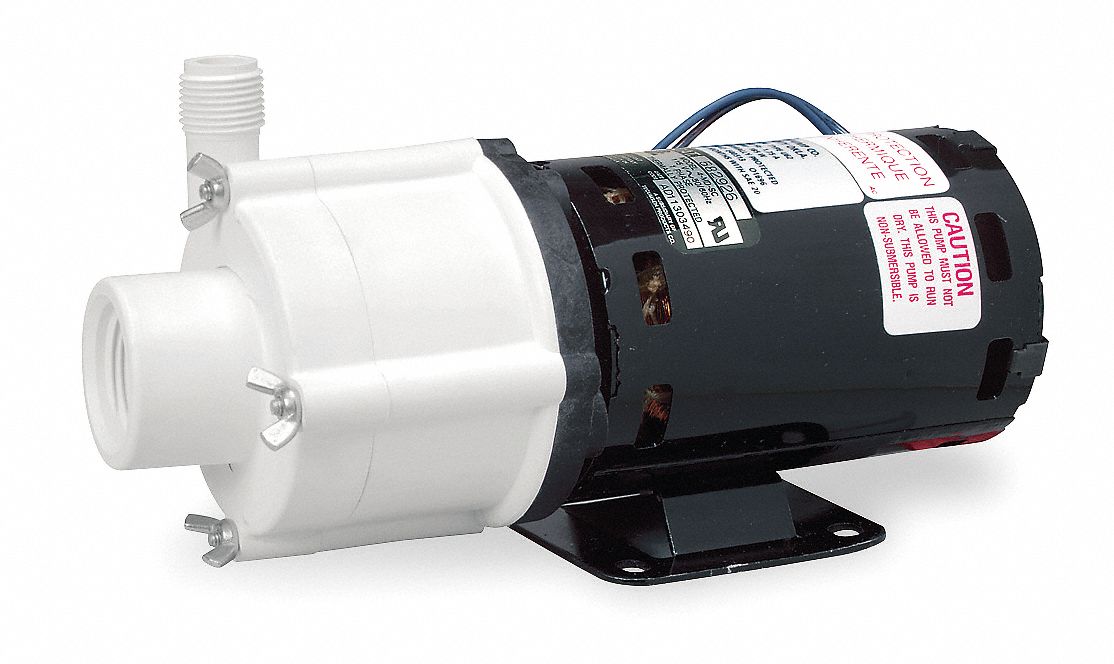

LITTLE GIANT Pump, Magnetic Drive

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Magnetic Drive Pump, Power Rating 1/10 HP, Voltage @ 60 Hz 115, Current Rating 1.7 Amps, Outlet 1/2 In MNPT, Inlet 1 In FNPT, Maximum PSI 30, Maximum Head 24.3 Feet, Motor Enclosure OPFC, Maximum Temperature 150 F @ 0 PSI, 70 F @ 30 PSI, Water Flow @ 1 Foot of Head 14.2 GPM, @ 3 Feet of Head 13.5 GPM, @ 15 Feet of Head 9.2 GPM, @ 18 Feet of Head 7.5 GPM, @ 24 Feet of Head 1.0 GPM, Height 5 Inches, Length 9 Inches, Width 5 1/2 Inches

Grainger Item #	2P041
Price (ea.)	$275.25
Brand	LITTLE GIANT
Mfr. Model #	4-MD-SC
UNSPSC #	40151503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	8.75
Availability	Typically in Stock
Catalog Page No.	4090
Country of Origin (Country of Origin is subject to change.)	Mexico
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Magnetic Drive
HP		1/10
Voltage		115
Full Load Amps		1.70
Motor Type		PSC
Motor Enclosure		OPFC
GPM @ 1 Ft. of Head		14.2
GPM of Water @ 3 Ft. of Head		13.5
GPM of Water @ 6 Ft. of Head		12.8
GPM of Water @ 9 Ft. of Head		11.8
GPM of Water @ 15 Ft. of Head		9.2
GPM of Water @ 18 Ft. of Head		7.5
GPM of Water @ 24 Ft. of Head		1.0
Max. Head (Ft.)		24.3
Length (In.)		9
Width (In.)		5-1/2
Height (In.)		5
Temp (F) @ 0 PSIG		140
Temp (F) @ 10 PSIG		120
Temp (F) @ 20 PSIG		120
Temp (F) @ 30 PSIG		120
Operating Pressure (PSI)		10.5
Housing		Polypropylene
Impeller		Polypropylene
Max. Specific Gravity		1.1
Max. Viscosity		100 SSU
Mounting		Horizontal
Bearings		Thrust
Cord Length		6
Cord Type		3-conductor SJP
Design		Gravity-feed, Requires the Pump Inlet to be Lower than Liquid Level
Gasket		Buna-N
Series		MD-SC
For Use With		Semi-Corrosive Chemicals and Solutions
Application		For Mild Chemicals at Moderate Temperature, Eliminates Seal-caused Friction Loss, Wear, Contamination and Leakage
