Welding
>
Electric Welding
>
Welder Generators

DC 305A 29V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Welder/ Generator, Ranger, Rated Output CC/DC 305A/ 29V/ 100, Rated Output CV/DC 300A/ 29V/ 100, Amperage Range 20-305, OCV 60V DC Max OCV 3700 RPM, Auxiliary Power (1 Phase) 11, 000, Engine Brand 23 HP CH23S OHV Gasoline Kohler, Includes Ranger 305 G, PRO Wire Feeder, Gun and Cable, Accessory Kit, Drive Roll, 25 lb. spool .072 In NR-232

Grainger Item #	12C065
Price (ea.)	$9,605.00
Brand	LINCOLN ELECTRIC
Mfr. Model #	K2353-2
UNSPSC #	23171514
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	537.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $999.00 each.
Price shown may not reflect your price. Sign in or register.

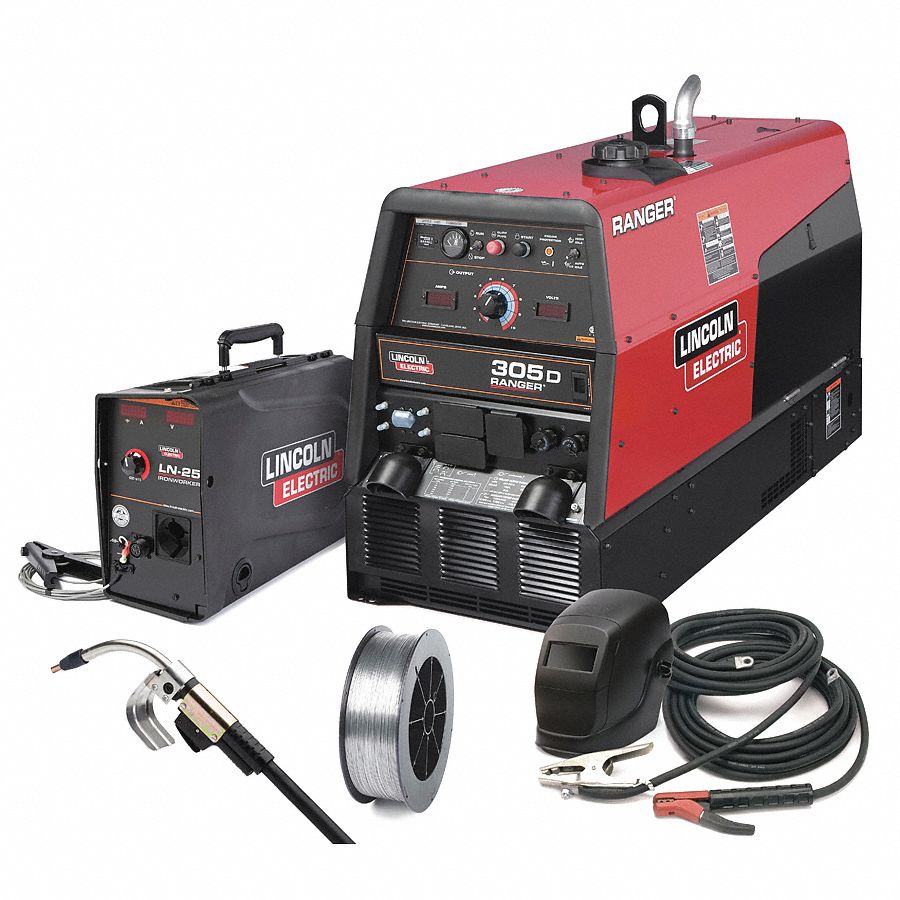

Welder/ Generator, Ranger, CC/DC 305A 29V

Enlarge Image

Item		Welder/ Generator
Series		Ranger
Rated Output CC/DC		305A/ 29V/ 100%
Rated Output CV/DC		300A/ 29V/ 100%
Amperage Range		20-305
OCV		60V DC Max OCV @3700 RPM
Auxiliary Power (1 Phase)		11,000
Engine Brand		23 HP CH23S OHV Gasoline Kohler
Start Type		Electric
Height (In.)		29.9
Width (In.)		21.5
Depth (In.)		42.3
Features		250 amps for AC or DC stick and DC wire welding and XTra power with up to 11,000 watts peak for lights, grinders or high amperage equipment. AC/DC welding output for a broad range of stick electrode types. Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol for aluminum and other alloy welding. MIG and flux-cored capable (with optional equipment). 6-pin connector and local/ remote switch for remote control operation. 11,000 Watts Peak Single-Phase AC Generator Power, and Peak for motor starting. 10,000 watts continuous power for generator, plasma cutter or inverter welder. Powered by Kohler Command 23 HP CH23S OHV Gasoline Engine. Combination electric fuel gauge and engine hour meter located on control panel. Easily check both fuel level and hour operation. Fuel gauge helps you virtually eliminate running low on fuel during critical jobs. Hour meter helps plan for scheduled engine maintenance. Large top fuel filler neck is easily accessed for refueling. Electric Start Switch for easy starts. Switch combines OFF, START, and IDLER functions into one simple, compact, easy to use switch. Oil drain valve (no tools required) with removable extension tube. 435 cold cranking amps with the Group 58 battery for extra starting capacity in sub-zero temperatures. Approved by Canadian Standards Association (CSA). Manufactured under a quality system certified to ISO 9001 requirements.
Application		Used In Construction, Maintenance And Repair, Pipe, Ranch/Farm Applications, For General Purpose Stick Welding, Downhill Pipe (Stick), TIG, Cored-Wire, MIG (CO2 And Mixed Gas) And Arc Gouging
Includes		Ranger 305 G, PRO Wire Feeder, Gun and Cable, Accessory Kit, Drive Roll, 25 lb. spool .072" NR-232
