LINCOLN ELECTRIC MIG Welder, Power MIG, 30-250 A, 208/230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

MIG Welder, Power MIG, Phase 1, Output Range 30-250 Amps, Rated Output 170A at 24VDC, 60 Duty Cycle 216A at 22VDC, 30 Duty Cycle, Duty Cycle 60 at 170A 30 at 216A, Input Voltage 208/230V, 1/60 Hz / 220V, 1/50 Hz, OCV 36VDC, Hz 60 Hz, Overall Height (In.) 32.56, Overall Width (In.) 19.15, Overall Depth (In.) 39.92

Grainger Item #	19R740
Price (ea.)	$2,859.00
Brand	LINCOLN ELECTRIC
Mfr. Model #	K2816-2
UNSPSC #	23171540
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	253.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	3777
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

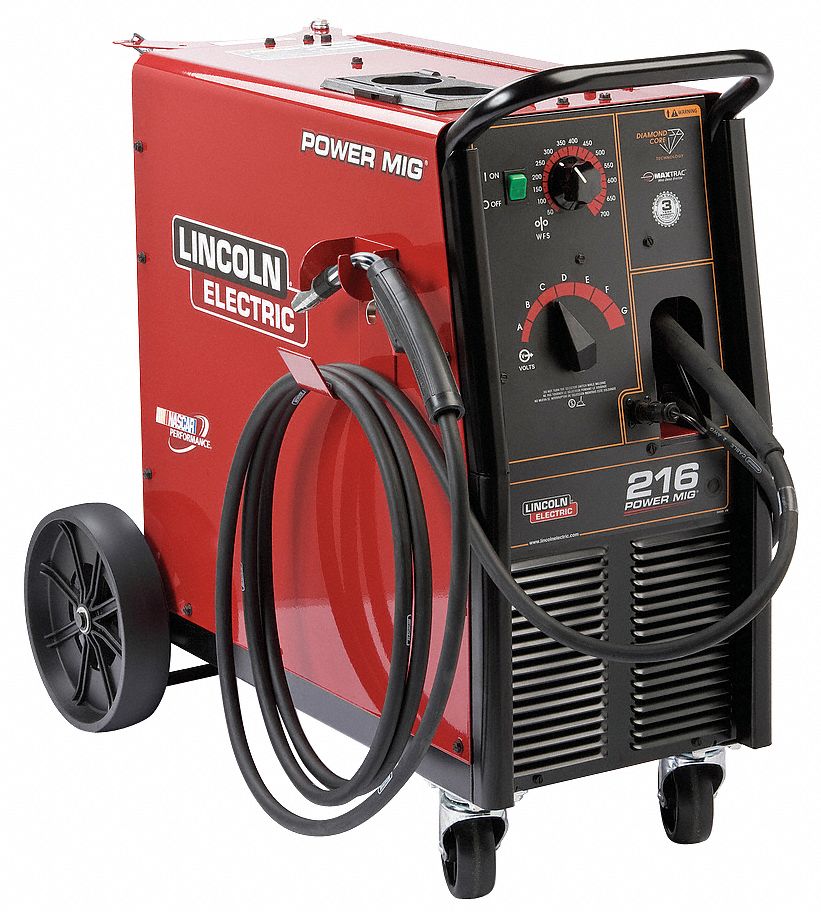

MIG Welder, Power MIG, 30-250 A, 208/230V

Enlarge Image

Item		Wire Feed Welder
Type		Mig/Flux Core
Series		Power MIG
Input Voltage		208/230V
Input (Amps)		30
Amps AC		30
Output Range (Amps)		30-250
OCV		36
Hz		60
Duty Cycle		60% at 170A30% at 216A
Phase		1
Rated Output		170A at 24VDC, 60% Duty Cycle 216A at 22VDC, 30% Duty Cycle
Wire Size (In.)		.025/.030/.035/.045
Overall Height (In.)		32.56
Overall Width (In.)		19.15
Overall Depth (In.)		39.92
Features		Features Diamond Core Technology(TM), Which Delivers A Forgiving Arc, Excellent Out-Of-Position Arc Action, Low Spatter And A Wide Voltage Sweet Spot For Steel, Stainless Steel Or Aluminum. Maxtrac(R) Cast Aluminum Industrial Wire Drive Features Dual Driven Ro
Application		Metal Fabrication, Maintenance and Repair, Autobody/Farm, Light Industrial
Includes		Magnum(R) PRO 250 gun and 15 ft. (4.5 m) "quick-connect" cable assembly equipped with fixed gas nozzle assembly, top mounted gun expendables tray, Built-in undercarriage with easy-load gas cylinder platform, Work clamp and 10 ft. (3.0 m) cable, 10ft. (3.0 m
