AC/DC TIG Welder, 1 Ph, 5-230 A, Rated Output 90A/23.4V/100%, 225 Amps AC, Input 94A on 208V Input 85A on 230V Input Amps, Input Voltage 208-230, OCV 75, 50/60 Hz, Includes Torch Parts Storage Compartment, Torch Hanger, 10 ft Work Cable & Clamp, Removable Lift Eye, 9 ft Input Power Cord With NEMA 6-50P Plug, NEMA 6-50R Receptacle, PTA-17 One Piece TIG Torch

Grainger Item #	5JPJ1
Price (ea.)	$3,250.00
Brand	LINCOLN ELECTRIC
Mfr. Model #	K2535-1
UNSPSC #	23171519
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	212.0
Availability	Item ships within 8 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

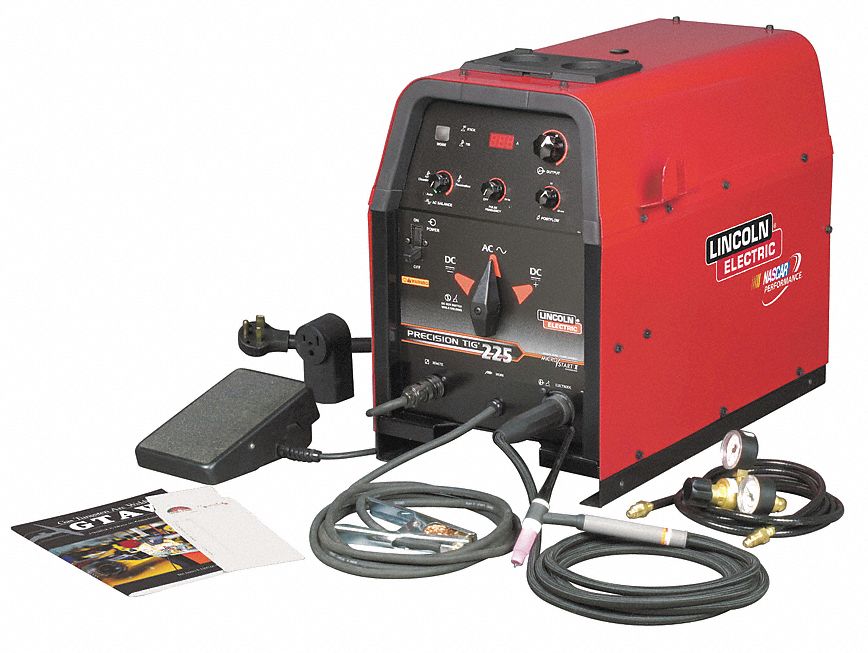

AC/DC TIG Welder, 5-230 A, 208/230 V, 1 Ph

Enlarge Image

Item		AC/DC TIG Welder
Series		Precision TIG
Phase		1
Output Range (Amps)		5-230
Rated Output		90A/23.4V/100%
Amps AC		225
Duty Cycle		100%
Input (Amps)		94A on 208V Input 85A on 230V Input
Input Voltage		208-230
OCV		75
Hz		50/60
Overall Height (In.)		20.7
Overall Width (In.)		14.5
Overall Depth (In.)		25.6
Includes		Torch Parts Storage Compartment, Torch Hanger, 10 ft Work Cable & Clamp, Removable Lift Eye, 9 ft Input Power Cord With NEMA 6-50P Plug, NEMA 6-50R Receptacle, PTA-17 One Piece TIG Torch
